Application Manual 26 Effective Date 12/08 27
c
ondition
d
etAilS

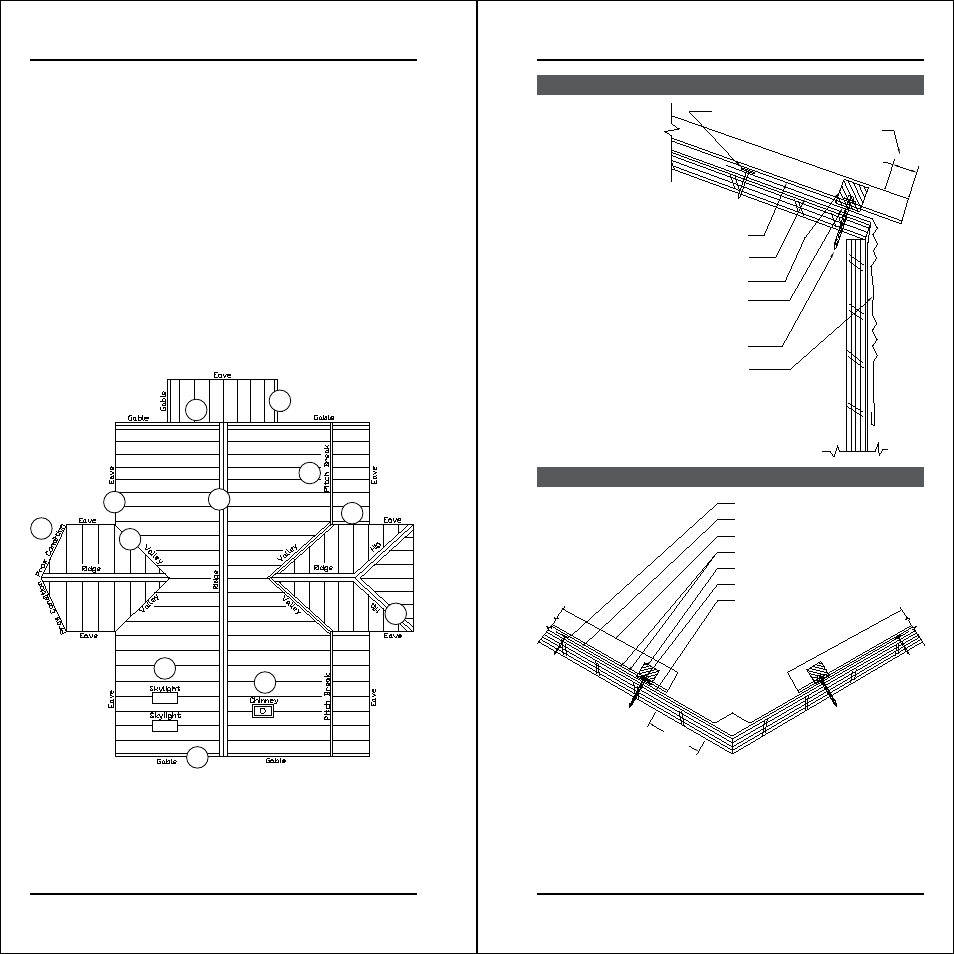

1. Eave Detail (see page 27)
2. Valley Detail (see page 27)
3. Gable Trim Detail (see page 28)
4. Prow Detail (see page 28)
5. Pitch Break Details (see page 29)
6. Ridge/Hip Detail (see pages 31-33)
7. Skylight Detail (see pages 34-37)
8. Chimney Details (see pages 34-37)
9. Endwall Detail (see pages 30)
10. Sidewall Detail (see pages 31)
t
ypicAl
r
oof
c
ondition
d
etAilS
1
2
3
5
4
6
7
8
Fastener
Overhang
1 1 /
2
"
Roof Panel
30# Roofing Felt
Closure
Tape Sealant*
Panel Fastener
Eave Trim
W-Valley
Double row of Tape Sealant
3” min
Hip/Valley Closure
Panel Fastener**
1 1 /
2
” Roofing Nail* (2’-0” o.c.)
Roof Panel
Moisture Barrier***
*Roof nail is used to hold the valley in place until roof
panels are installed and fastened.
**Use (9) screws at each 3'-0" panel, and (6) screws at
each 2'-0" panel at Valleys.
***Ice and water shield is recommended at valleys on top
of 30# roofing felt.
9
(not shown)
11. Outside Corner Details (see page 33)
12. Wall Lite Detail (see page 38)
13. Snow Guard Detail (see page 38)
10
6
3
*Tape Sealant at top and bottom of closure
e
AVe
f
lAShing
d
etAil
W-V
Alley
d
etAil
