MINI/MAXI-BATTEN
PMB-17
© Metal Sales Manufacturing Corporation/ Subject to change without notice/ Effective Date 9/11
800.406.7387 (Corporate Office) • www.metalsales.us.com

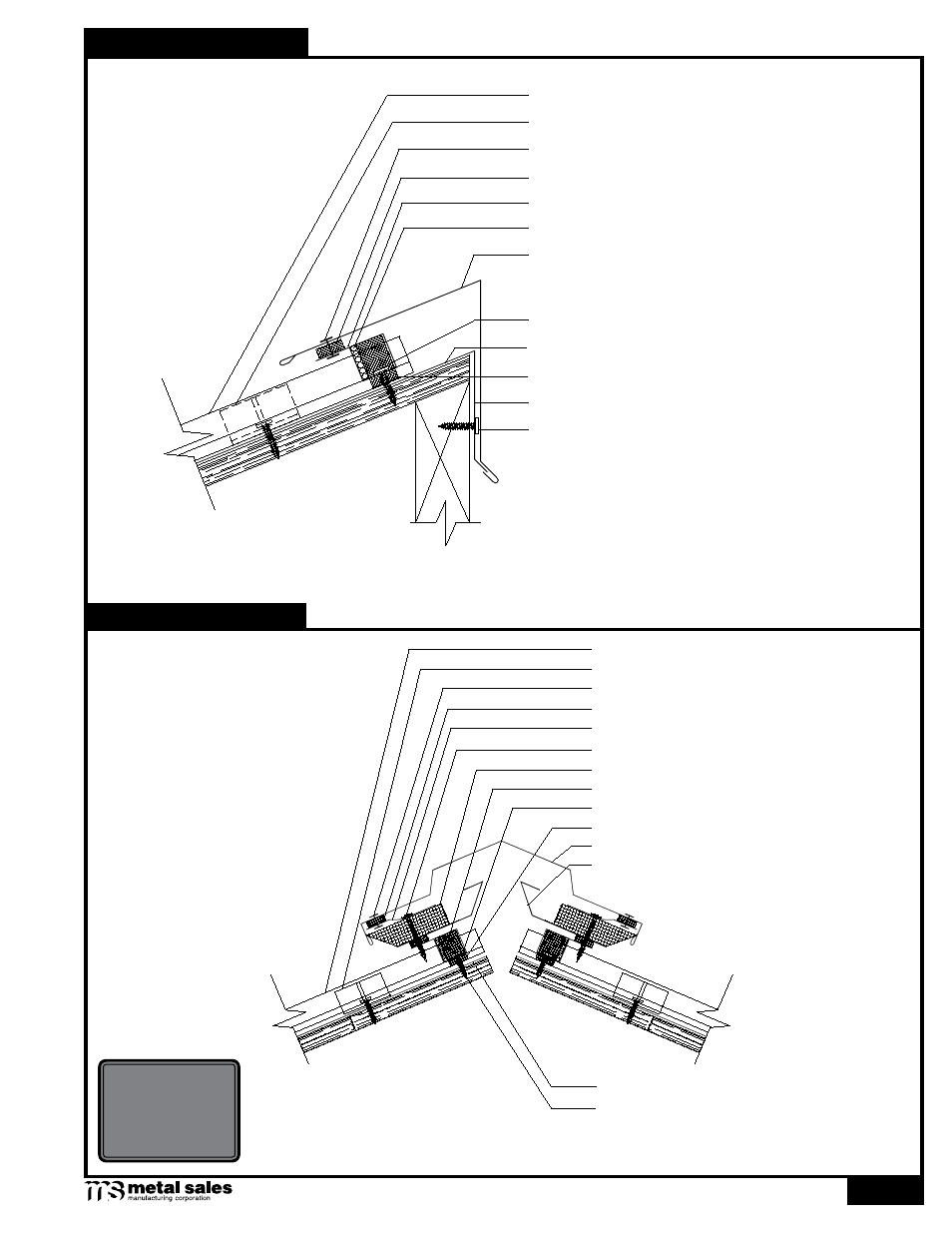

P
eak
d
eTail
Mini/MaXi-baTTen
v
enTed
r
idge
d
eTail
3:12 Slope
Minimum
Z-Closure
Double Bead Tape Sealant
Cleat
Mini/Maxi-Batten Panel
Moisture Barrier (by others)
Peak
Pop-Rivet (3 per panel)
Pancake Head Woodscrew (1'-0" o.c.)
Clip
Double Bead Tape Sealant
Pancake Head Woodscrew (4 per panel)
Tube Sealant
3:12 Slope
Minimum
Vent Drip
Double Bead Tape Sealant
Offset Cleat
Mini/Maxi-Batten Panel
Moisture Barrier (by others)
Vented Ridge Cover
Deck Screw (1'-0" o.c.)
Pop-Rivet (1'-0" o.c.)
Z - Closure
Clip
Vent Material
Double Bead Tape Sealant
Pancake Head Woodscrew (4 per panel)
CAUTION
Additional screws
may be required for
high snow loading
and steep slopes.
Tube Sealant
Note: Z-Closures must be field cut and bent to fit
between panel ribs (see Architectural Manual).
