PMB-16
MINI/MAXI-BATTEN
© Metal Sales Manufacturing Corporation/ Subject to change without notice/ Effective Date 9/11
800.406.7387 (Corporate Office) • www.metalsales.us.com

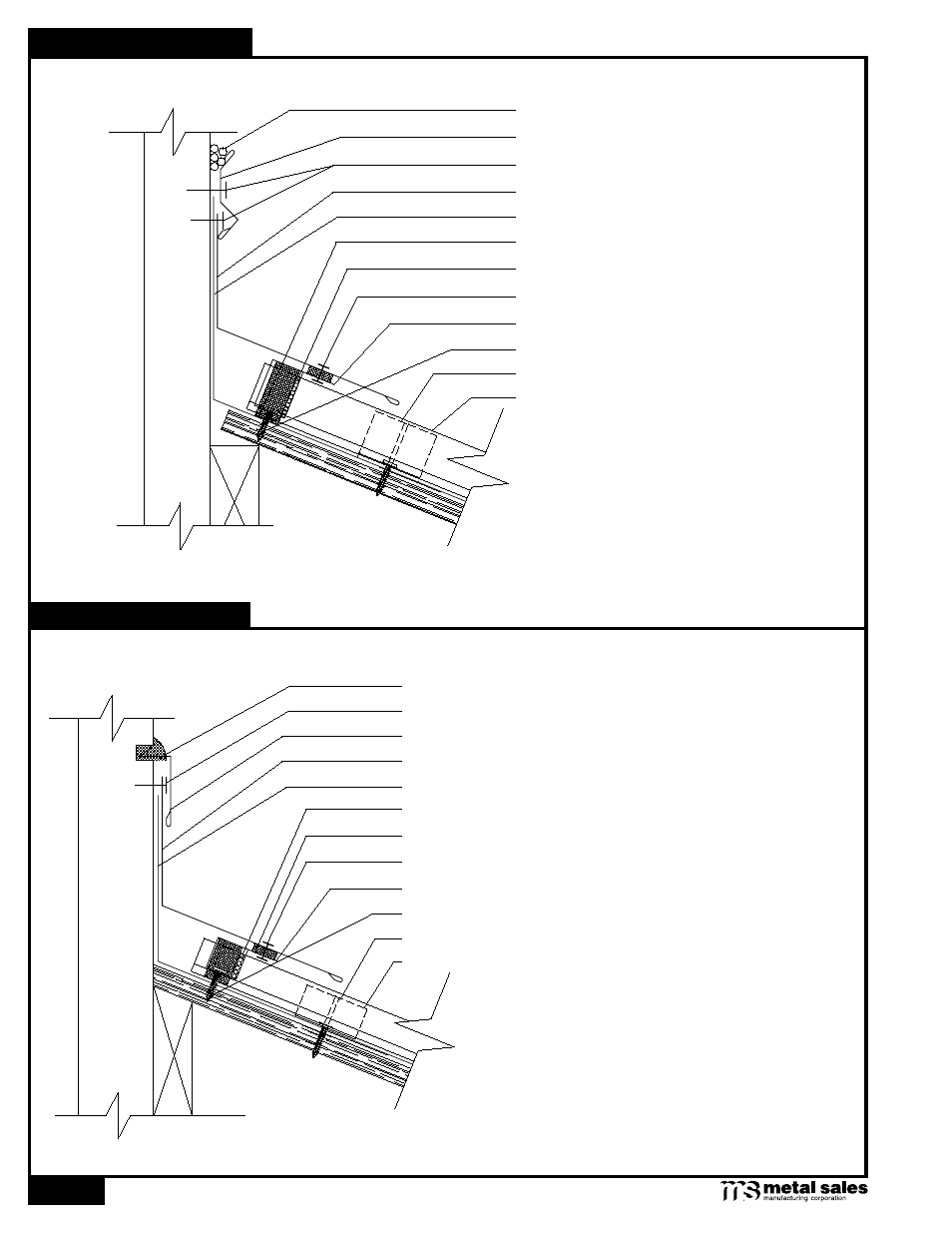

h
igh
s
ide
e
ave aT
P
araPeT
C
oUnTer
d
eTail
Mini/MaXi-baTTen h
igh
s
ide
e
ave aT
P
araPeT
r
egleT
d
eTail
3:12 Slope
Minimum
Z-Closure
Double Bead Tape Sealant
Fasteners (by others)
Mini/Maxi-Batten Panel
Moisture Barrier (by others)
Pitch Break
Pop-Rivet (3 per panel)
Clip
Counter Flashing
Pancake Head Woodscrew (4 per panel)
Tube Sealant
Tube Sealant
3:12 Slope
Minimum
Z-Closure
Double Bead Tape Sealant
Fasteners (by others)
Mini/Maxi-Batten Panel
Moisture Barrier (by others)
Pitch Break
Pop-Rivet (3 per panel)
Clip
Reglet Flashing
Pancake Head Woodscrew (4 per panel)
Tube Sealant
Tube Sealant
Note: Z-Closures must be field cut and bent to fit
between panel ribs (see Architectural Manual).
Note: Z-Closures must be field cut and bent to fit
between panel ribs (see Architectural Manual).
