Metal Sales Mini-Batten - Manual (Page 14)

PMB-14
MINI/MAXI-BATTEN
© Metal Sales Manufacturing Corporation/ Subject to change without notice/ Effective Date 9/11
800.406.7387 (Corporate Office) • www.metalsales.us.com
r
ake
d

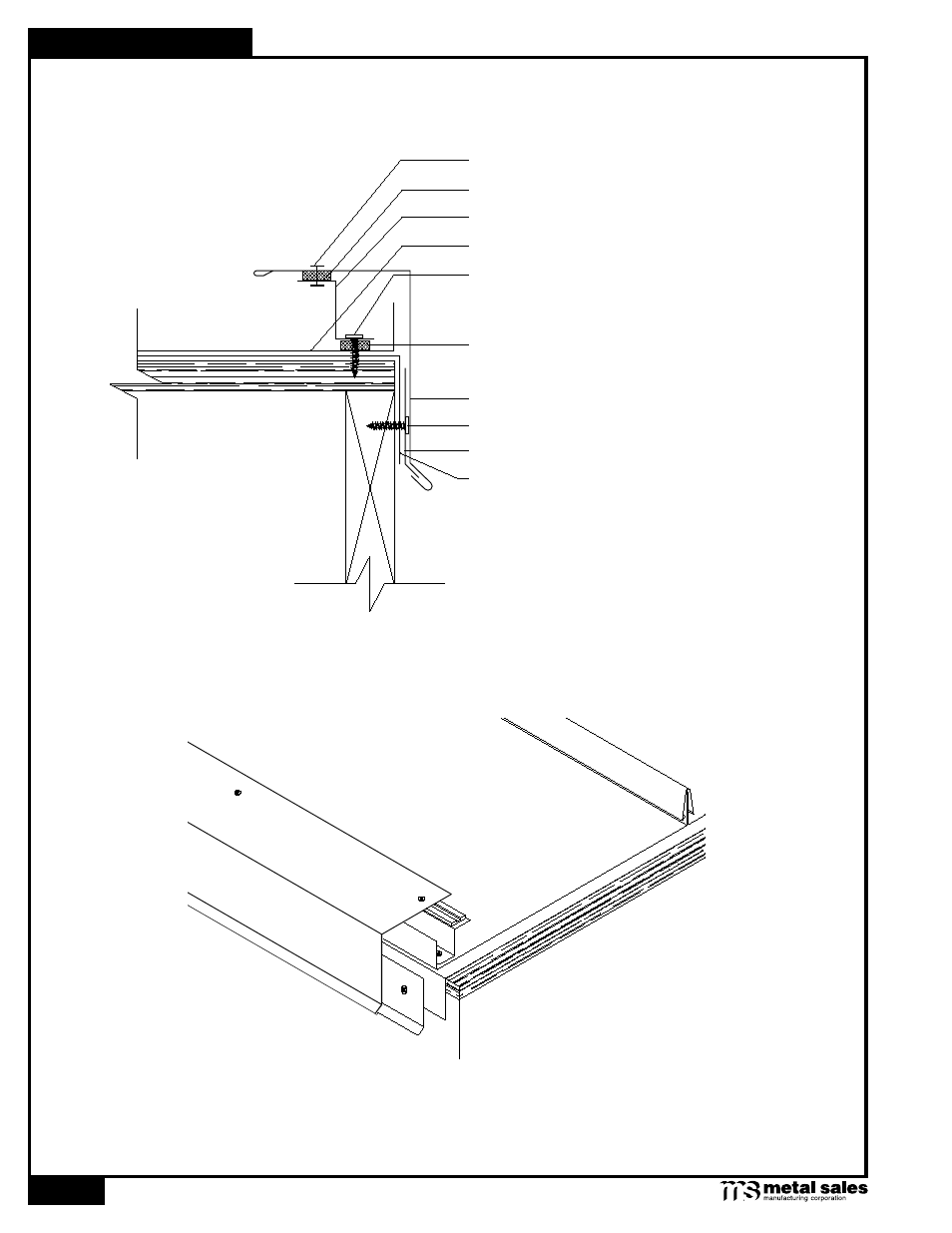

eTail
3:12 Slope
Minimum
Z-Closure
Double Bead Tape Sealant
Cleat
Mini/Maxi-Batten Panel
Moisture Barrier (by others)
Rake
Pancake Head Woodscrew (1'-0" o.c.)
Pop-Rivet (1'-0" o.c.)
Double Bead Tape Sealant
Pancake Head Woodscrew (1'-0" o.c.)
