Waterbath cooling unit CDP 115
E
D
C C2
C1
B
A
I1/I2
J1/J2
G/H/I/J
I1/I2
J1/J2

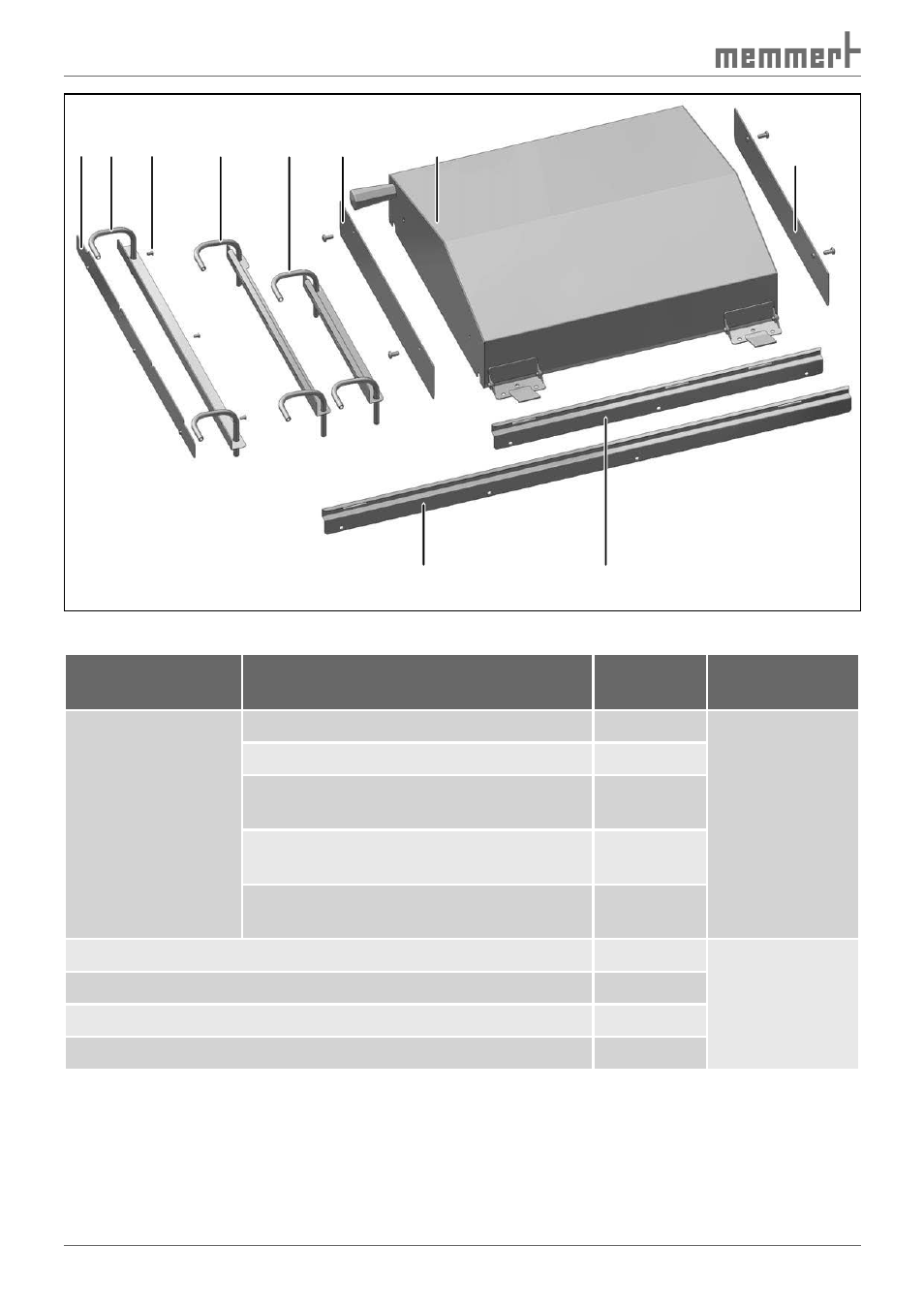

Fig. 5
Available assembly accessories (for a description, see Table 1)
Accessories
Includes
Item in
Fig. 5
Order No.
Fixtures and
connection set
Tube suspender for waterbath W..7/10
A
...-L9
Tube suspender for waterbath W..14/22
B
Tube suspender for waterbath W..29/45
with intermediate rail and 3 screws
C, C1, C2
Fixing rail for attachment of cooling
unit to waterbath W..7/10/14/22
D
Fixing rail for attachment of cooling
unit to waterbath W..29/45
E
Special lid for W..7
G
...-L4*
Special lid for W..10
H
Special lid for W..14/22 with two closing panels and screws
I, I1, I2
Special lid for W..29/45 with two closing panels and screws
J, J1, J2
Table 1 Overview of available accessories
* When ordering, please specify waterbath size
