12
Waterbath cooling unit CDP 115
2. Attach cooling unit with the attachment rail on the rear of the waterbath into the bracket
on the hinges of the special lid (Fig. 14) and move horizontally (Fig. 15), so that the
bracket snaps into place (Fig. 16).

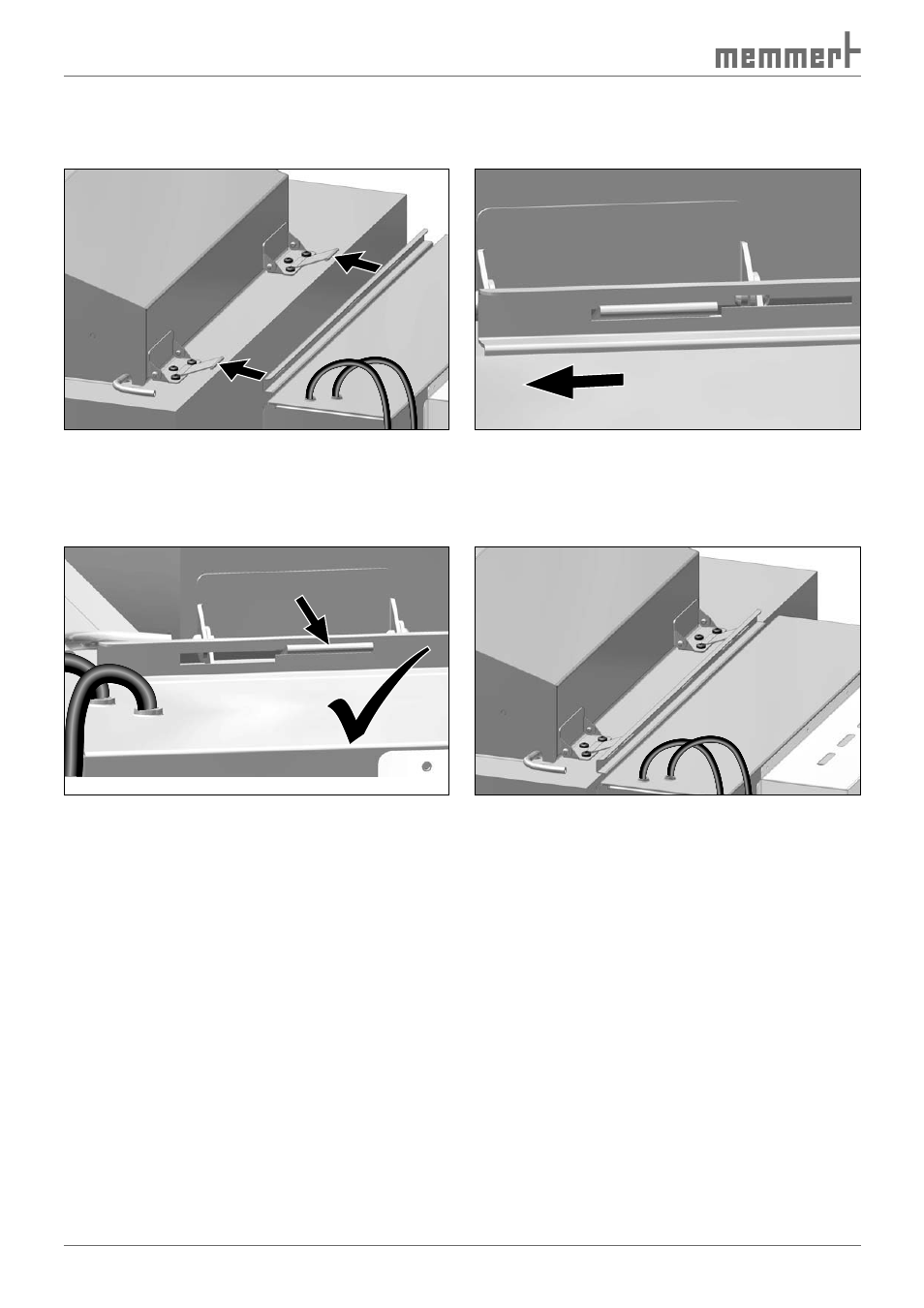

Fig. 14 Attach cooling unit with attach-
ment rail on the rear of the waterbath into
the bracket on the hinges of the lid
Fig. 15 Push cooling unit forwards so that
the retaining bracket of the lid snaps into
place in the bracket (see Fig. 16)
Fig. 16 Retaining bracket of lid in place in
the attachment rail
Fig. 17 Assembly of cooling unit finished
