Waterbath cooling unit CDP 115

2. Unscrew the hinges of the original lid from the waterbath (Fig. 7); remove lid.
3. Pull the O-rings off the screws.
4. Place the special lid G/H/I/J onto the waterbath, push six screws through the hinges of the

lid and push the O-rings onto the screws (Fig. 8).

5. Screw the special lid tight to the waterbath.

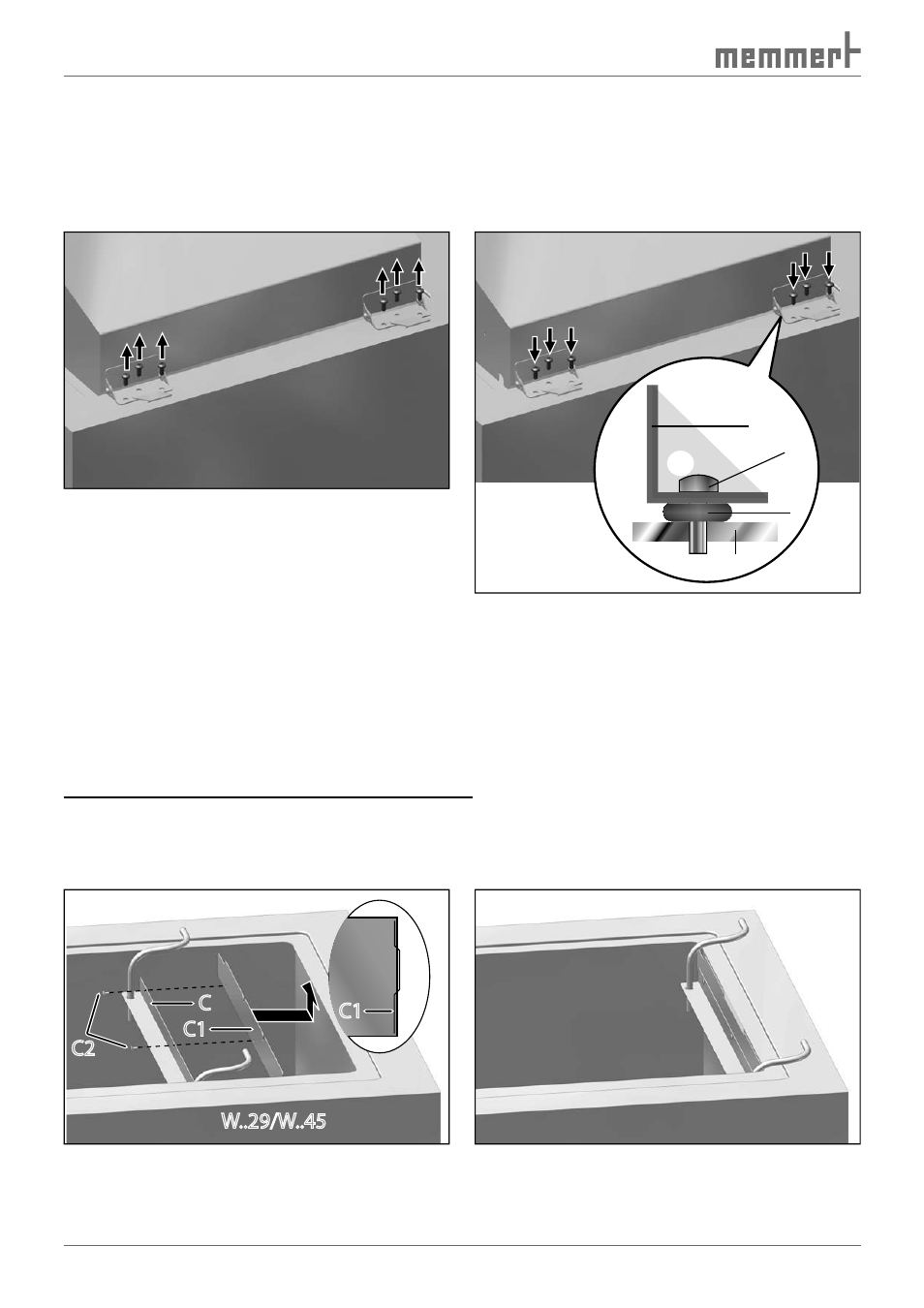

Fig. 7

Unscrew standard lid from water-

bath

G/H/I/J

Fig. 8

Screw the special lid tight to the

waterbath

1 Lid

hinge

2 Screw

3 O-ring

4 Top side of waterbath

3.3.2 Attaching the tube suspender to the waterbath
For waterbaths of the type W..29 and W..45:

1. Insert the intermediate rail C1 from below behind the frame of the basin so that the rail

will stay between the frame and the basin (Fig. 9).

2. Screw tube suspender C with three supplied screws C2 onto the intermediate rail (Fig. 10).

W..29/W..45

Fig. 9

Fix intermediate rail (C1) and tube

suspender (C) to the waterbath

Fig. 10

Tube suspender fixed to the water-

bath
