Waterbath cooling unit CDP 115
For waterbaths of the type W..7, W..10, W..14 and W..22:

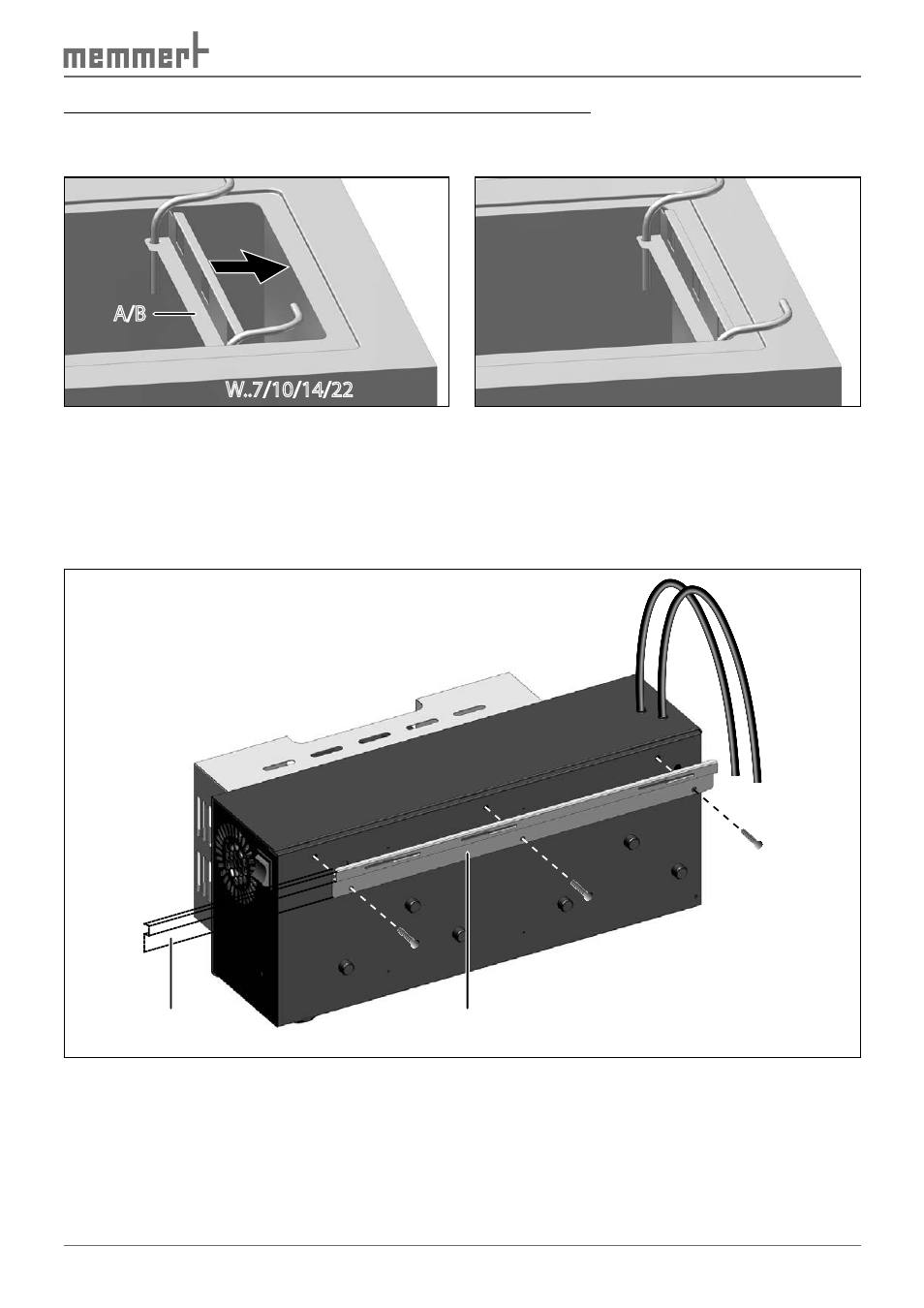

Place tube suspenders A and B onto the edge of the top right-hand side of the waterbath, as
illustrated in Fig. 11 and Fig. 12.
W..7/10/14/22 W..7/10/14/22
A/B A/B
Fig. 11 Fix tube suspender (A or B) onto
waterbath
Fig. 12 Tube suspender fixed to the water-
bath
3.3.3 Attaching the cooling unit to the waterbath
1. Screw attachment rail D or E to the cooling unit with three screws, as shown in Fig. 13.
The attachment rail E must stick out in the direction of the mains switch.
D/E E
Fig. 13 Screw attachment rail to the cooling unit
