1

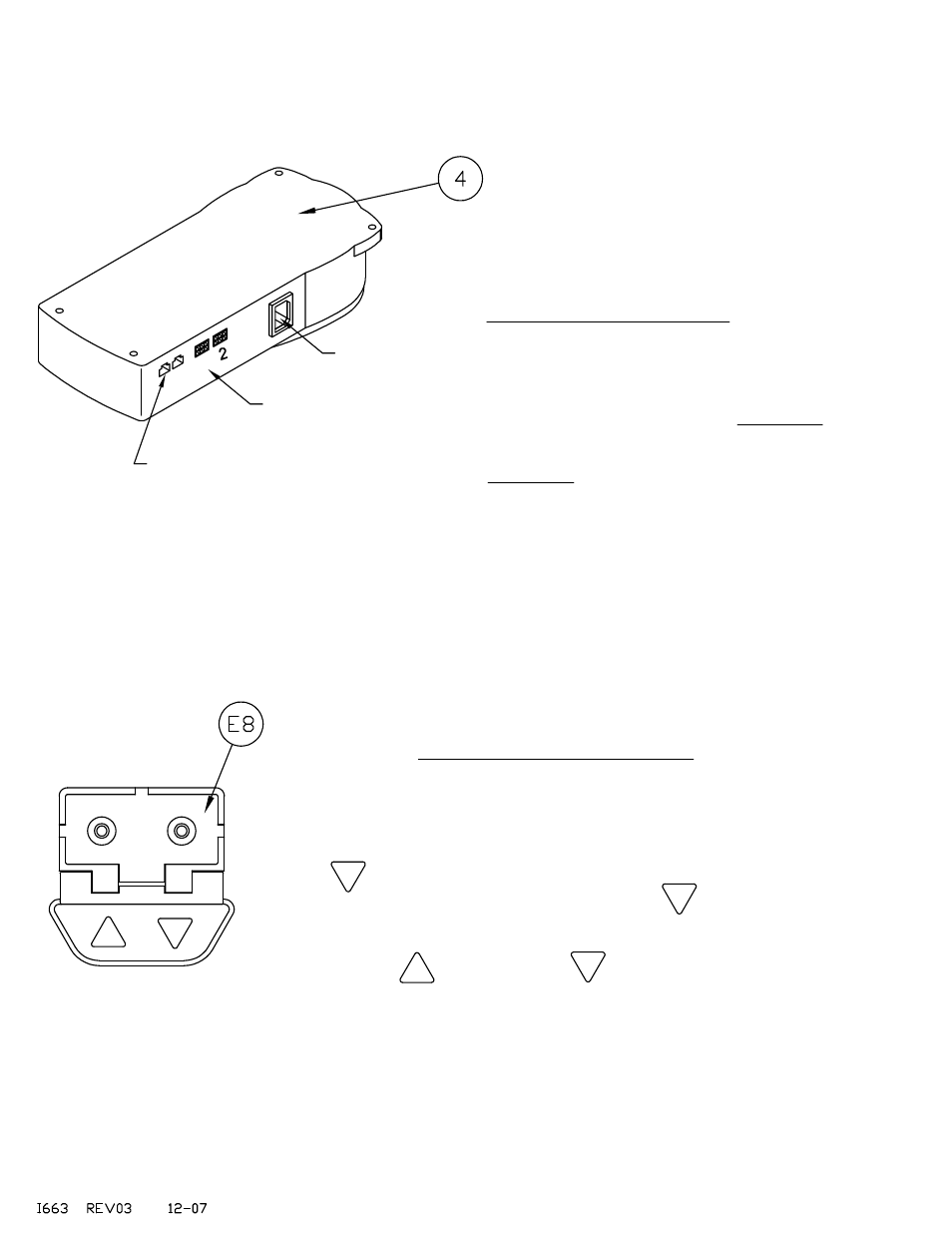

Electrical Connections:

1. Plug the Main Cable (5) into the Control Box (4).

2. Plug the Actuator Cord (the one exiting the access

hole) into the Control Box (4) using Position #1 .

3. Plug the DPA Switch Cord (E8) into the
"OUTSIDE" Jack Connection on the Control Box (4).

Main
Cable

Actuator

Cord

Control Box
Cord

1. Your table is equipped with soft start / stop drive Actuator system.

To properly function your unit must be initialized at set up.Check
that all cord connections are completely installed into appropriate
conection in Control Box.Plug Main Cable into power supply. Press
down button and hold for 10 to 15 seconds. Note: Column may

move up or down slightly while holding 'DN' button while system

sets correct starting point.

2. Press 'UP' button or 'DN' button to obtain desired

height.

INITIALIZATION of the system:

(3)
