1. Remove old cable by loosening screw retaining cable on attachment clamp. Fig. 4

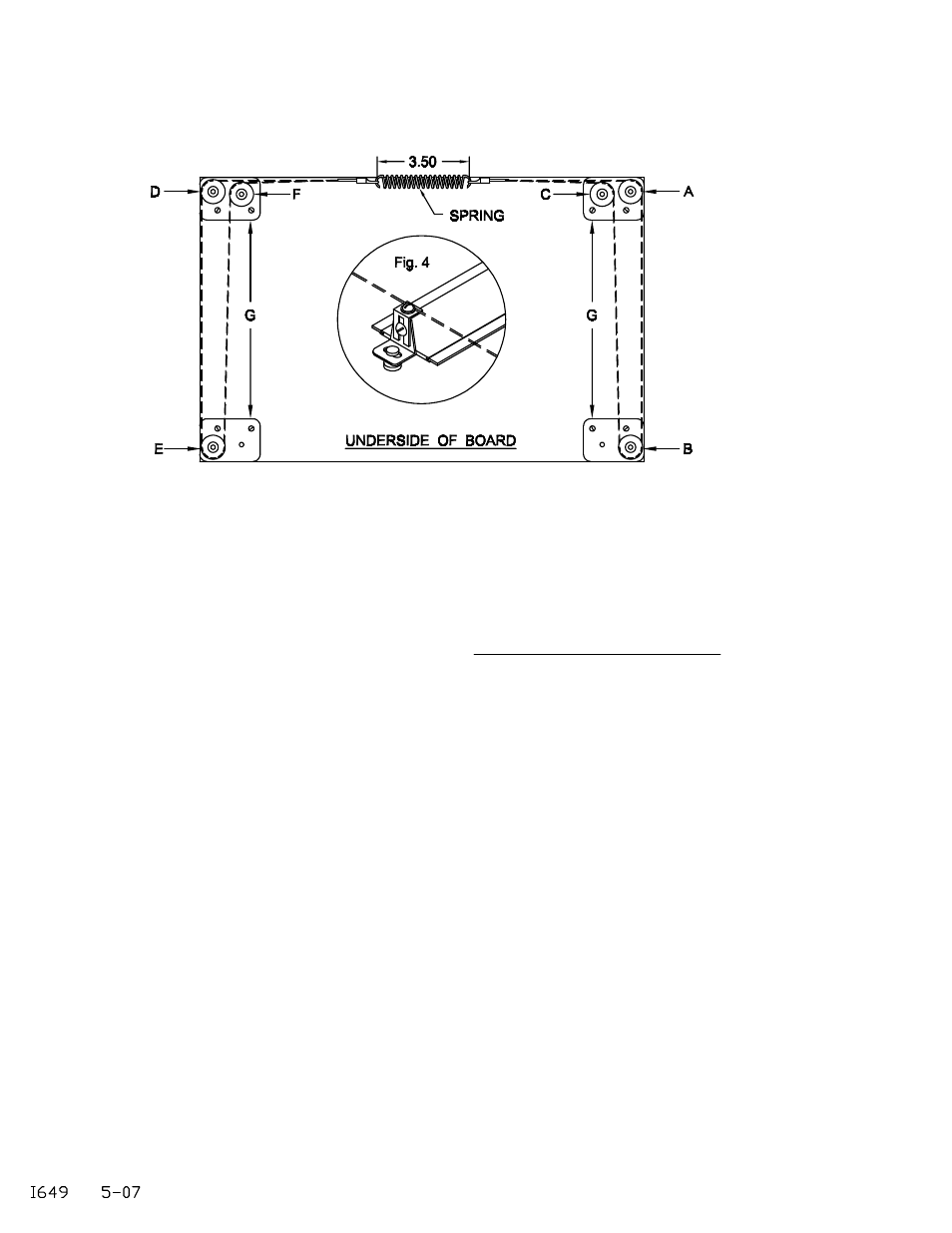

2. Crimp Ring Terminal (2) to one end of Cable (1).
3. Starting from Inside of board, thread end of cable around pulley 'A' to front of board around pulley
'B', then back around pulley 'C'. Now cross the board and thread around pulley 'D', then to front of
board around pulley 'E' and back around pulley 'F'. DO NOT TWIST OR KINK CABLE.
4. Connect Ring Terminal to Spring.
5. Slide 2nd Ring Terminal on opposite end of Cable. Hook the Terminal onto other end of spring.
Hold Ring Terminal and pull end of cable until spring is extended approximately 1/2". Crimp terminal
at this position. Be sure cable runs freely.
6. Place straightedge in position on board and fasten blade clamps (shown upside down, Fig.4) to
ends of straightedge with knurled nuts. Adjust sliding bar to correct length and tighten screws.
7. Loosen cable clamp screws on bottom of blade clamps and place cable between washer and
groove in blade clamps. Align straightedge and lamp cable by tightening cable clamp screws.
Straightedge can be removed from blade and replaced without changing alignment by simply
removing knurled nuts.
Spring Length
Not to Exceed
INSTRUCTIONS FOR RESTRINGING
UNDER-BOARD PARALLEL RULE
(3)
