Mayline Restringing Above Board - Manual (Page 2)

Cable Clamp
10. Insert cable through top of stop.
11. Pull cable on RIGHT side of work surface to remove slack from
this portion. Tighten Stedge Clamp Screw at this time.
12. Pull cable on LEFT side to remove slack. DO NOT Exceed
spring tension (Fig. 3). Tighten Stedge Clamp Screw at this time.
13. Excess cable can be trimmed off leaving several inches for
future adjustments.
14. Straightedge may be locked in positio by tightening Knobs
installed in Step #1 on both ends of Straightedge or left loose to
allow free movement up or down.
Knob
Spring Length
Not to Exceed
(CENTER Spring between Plate Assemblies)
Stedge Stop
Cable Brake
Knob
Stedge Stop
Cable Clamp
Cable (1B)
Cable (1A)
LEFT Corner
Plate
Screw
L.H. Corner
Plate Assembly

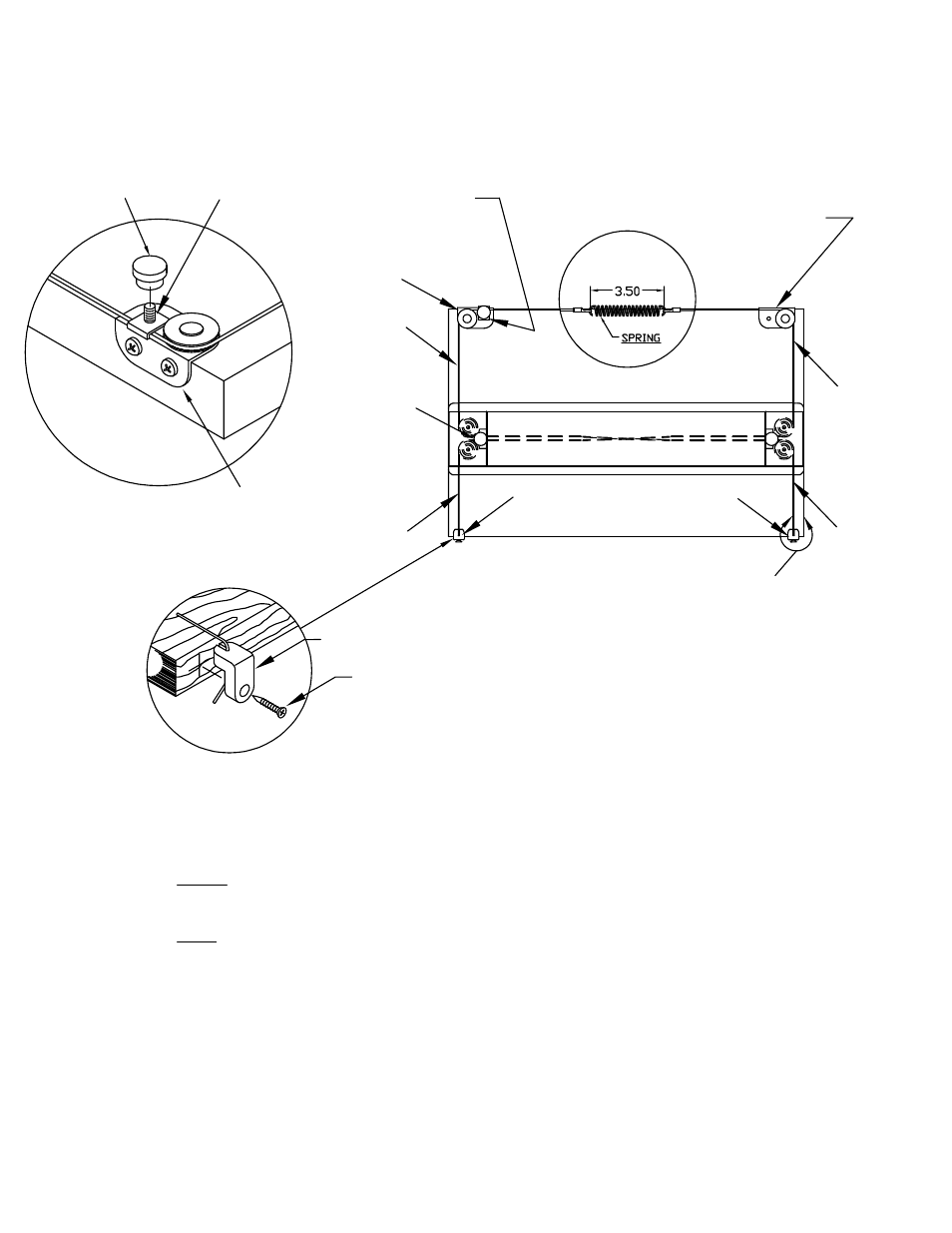

Fig. 3
R.H. Corner
Plate Assembly
Align Cable Parallel with
edge of Board
Stedge Stop
Cable (1B)
Cable (1A)
9. Attach cable ends with terminals to spring. Align cable parallel
with edge of board as shown in Fig. 3. Be sure that the cable
passes between cable clamp and L.H. Plate Assembly.
(2)
