Assembly instructions – Marshalltown SW100H Shockwave Vibratory Screed User Manual
Page 6
6 of 48
104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.marshalltown.com
WS570
R10-22-12

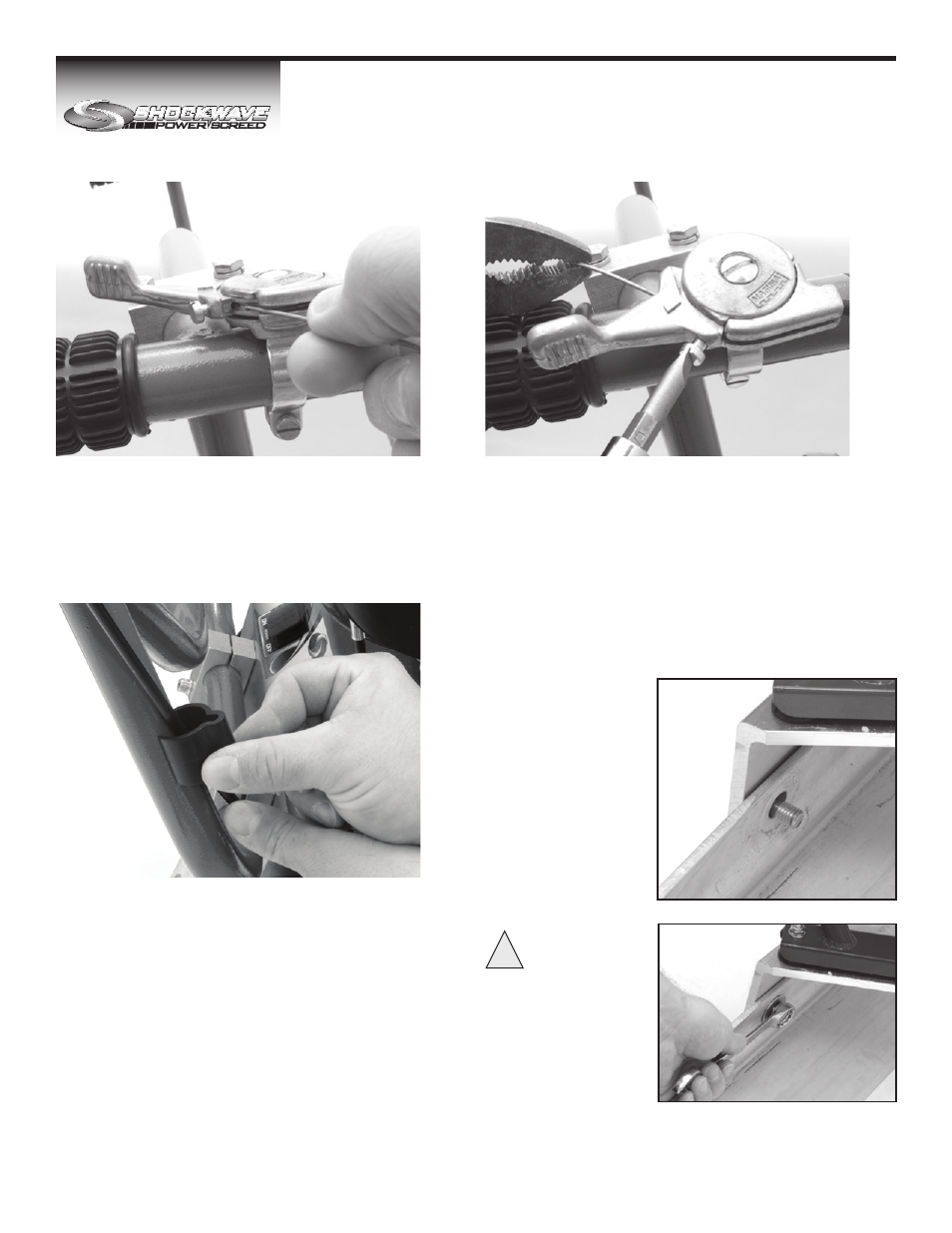

Step 7 – Secure throttle cable using clips,
as shown above .
Step 6 - Once cable is through throttle lever, return the
lever to the “idle” position shown above . Using pliers, pull
all extra slack out of the cable, making sure you are not
actually opening the throttle at the carburetor . Once all
slack is removed, tighten locking screw .
Note – the plastic housing of the throttle cable will fit up into
the throttle cable housing .
ATTACHING BLADE
Attach blade as shown,
making sure that blade
is positioned on the
“front side” of the base
extrusion .
Make sure bolts
are tight before
each use .
Step 5 – Thread the exposed metal end of the throttle cable
into the throttle lever . The lever will need to be “opened” to
expose the hole it fits into . Back out the set screw to allow
the cable to pass through .
ASSEMBLY INSTRUCTIONS
!
