DI-100 User's Guide
Page: 10 / 19
P/N : 033-02205-Rev2
• Attach the plastic base and use the tie-wrap to secure the load cell cable.
• Attach the strain relief bushing to the load cell cable and push it securely into the bushing
opening.
• The picture below shows the completed assembly.

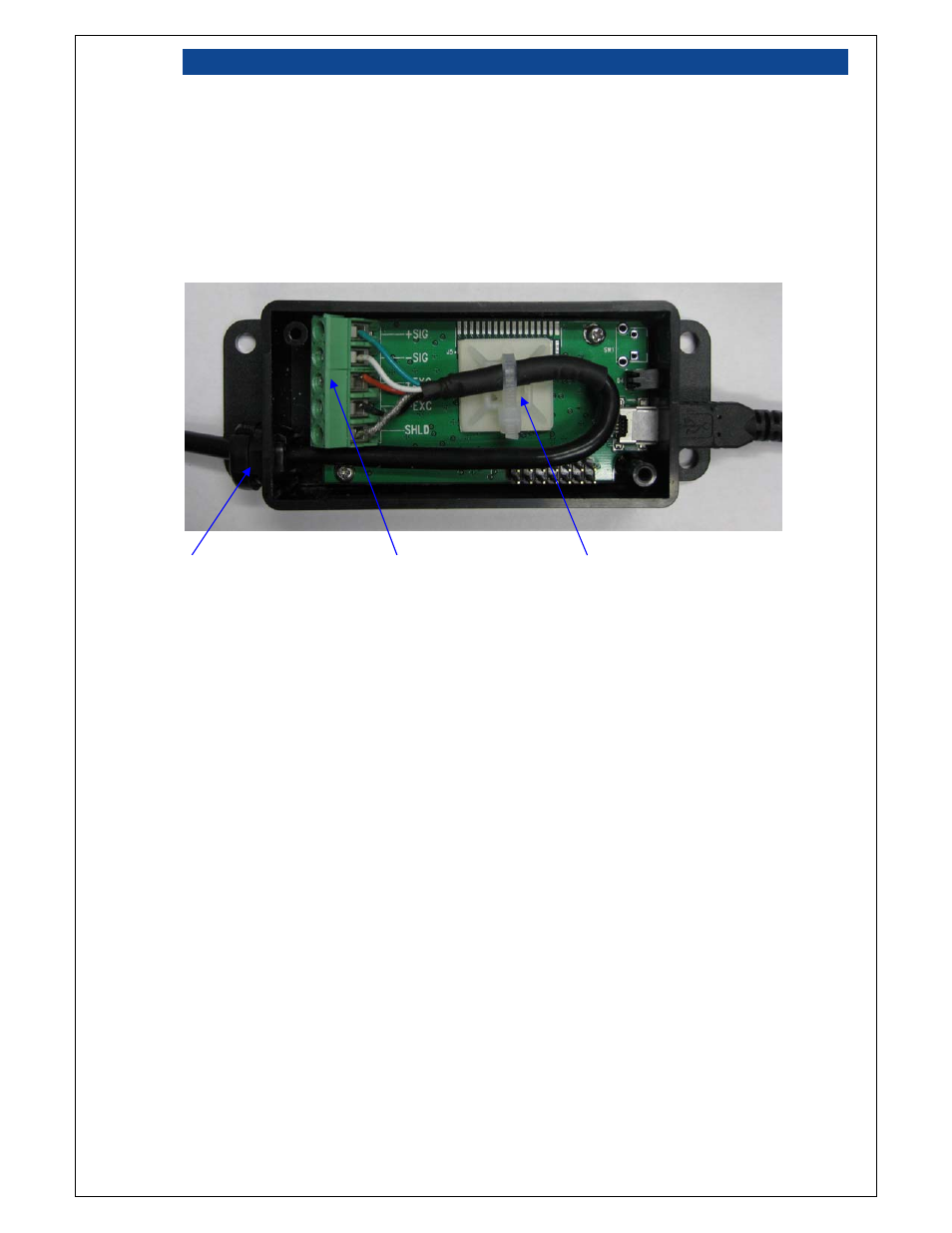

Figure 6: DI-100 (after assembly)
Strain Relief Bushing
(included) Connect your
load cell to the
terminal block Plastic base and
tie-wrap to secure
the load cell cable
