5 Mechanical installation
Side−by−side mounting − device sizes II and III
EDK94AZMS DE/EN/FR/ES/IT 8.0 48
l
H1_MechINS−Fi NbMontage_GG2−3_EN
Mounting steps
SSP94NF006
How to proceed for side−by−side mounting:

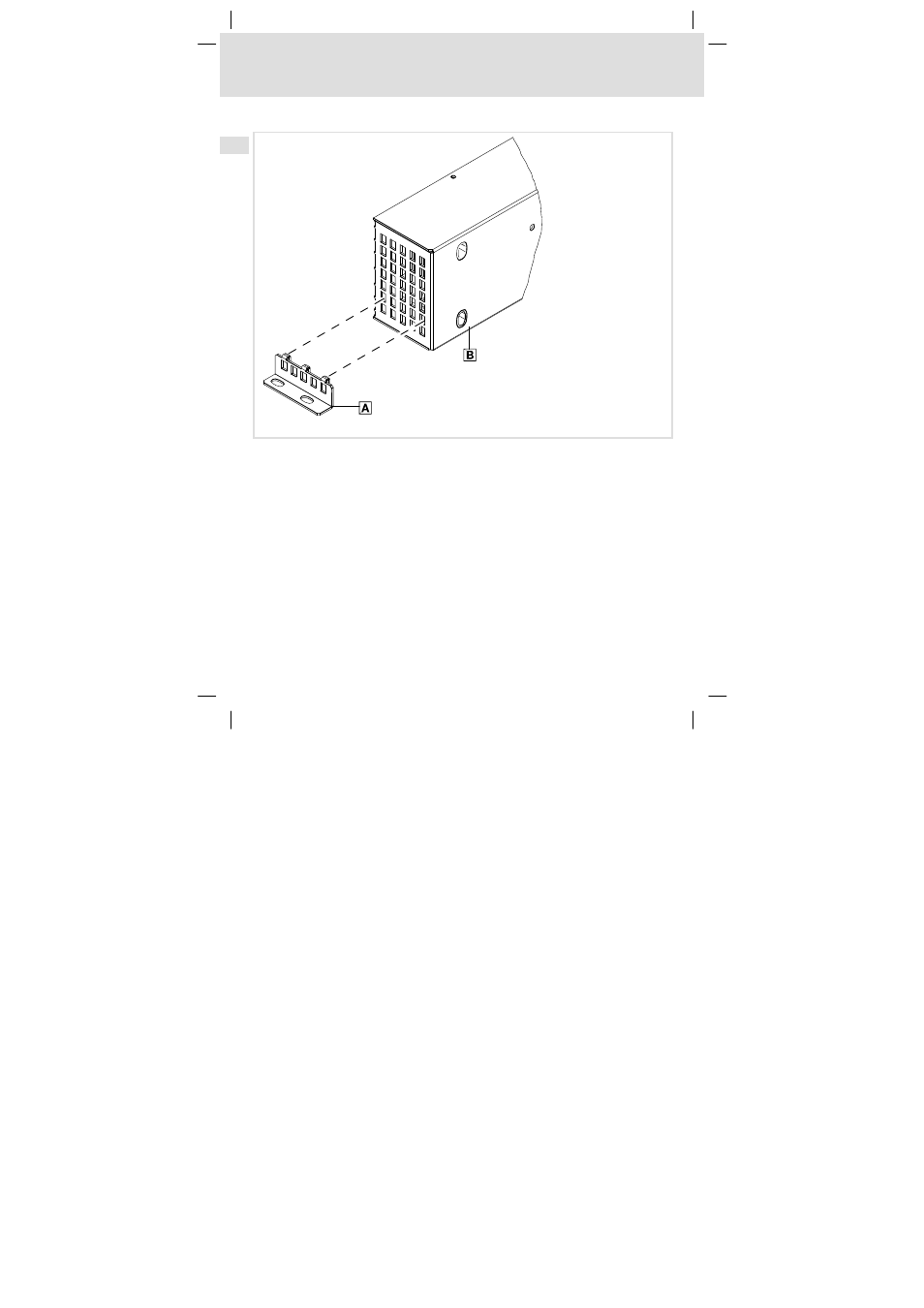

1. Hook the angle bracket
0 into the grid hole pattern of the filter 1.
2. Mount the filter on the prepared mounting plate to the left of the mounting base.
– Filter turned by 90° compared to standard mounting.
– The mounting holes do not match the typical 9400 grid hole pattern.
– Always use all mounting points specified.
– Use M5 screw and washer assemblies or M5 hexagon socket screws with washers.
– If further devices are to be mounted directly adjacent on the right−hand side of the
filter, do not tighten the screws fully before all devices are mounted and aligned.
– Tightening torque: 3.4 Nm (30 lb−in).
