Wiring the device modules
Communication modules
8
l
67 EDK94ASH24 DE/EN/FR/ES/IT 4.1
8 Wiring the device modules
The equipment of the device with modules depends on the device variant or on the
application. A short description of the different device modules follows. More detailed
information is given in the corresponding documentation.
8.1 Communication modules
Use these modules in slot
þ MXI1 or þMXI2 oMMI oMSI.
Ethernet
E894YCEN001A

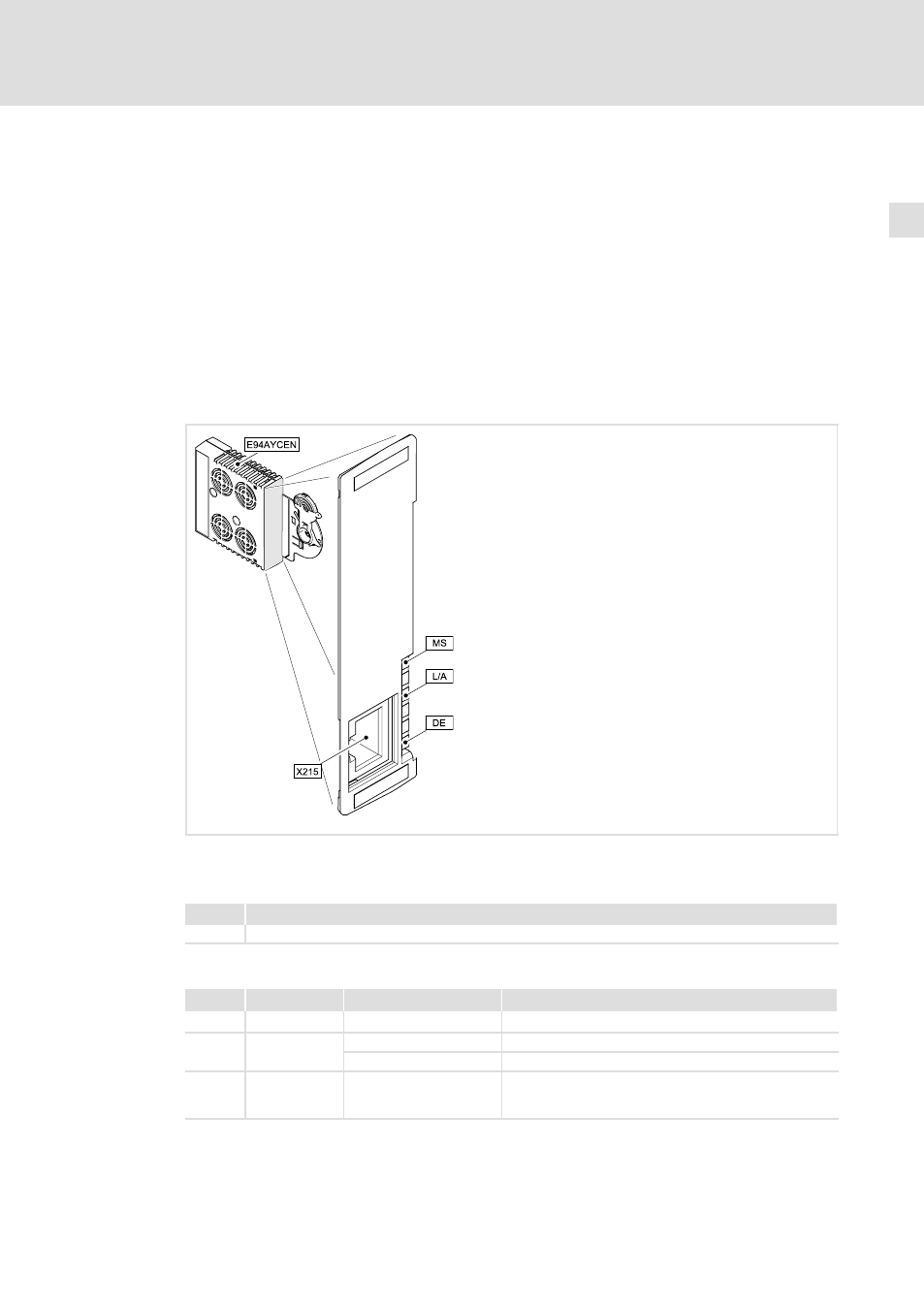

Fig. 8−1 E94AYCEN communication module (Ethernet)
Connections
Pos. Description
X215 Ethernet connection, RJ45 socket to EN 50173
Displays
Pos. Colour Condition Description
MS Green On The communication module is supplied with voltage.
L/A Green On The connection to the Ethernet network is established.
Blinking Data is being transmitted or received.
DE Red On The communication module is not accepted by the
standard device (see notes given in the documentation
for the standard device).
