Leica M series User Manual 27
The integrated cable duct in the column
enables a neat cable layout around the micro-
scope. For example, the USB or FireWire cables
of the camera can be stowed in the cable duct. Feeding the cables

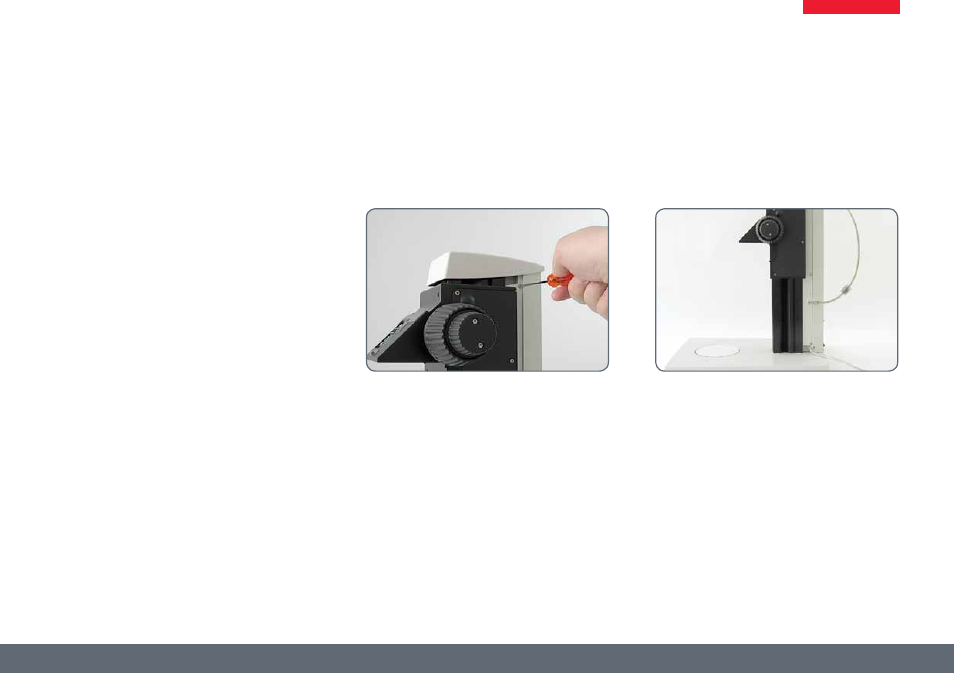

1. Unscrew the three screws on the cable
duct.
2. Remove the cover of the cable duct.
3. Place the cables in the cable duct and screw
the cover on tightly.
Tip: Estimate the length of the cable ends you
will need before screwing on the cover.
For thick cables, it is difficult to change the
length retroactively.
Cables: Cable Duct
