Leica M series User Manual 20
The first step is to connect the focusing column
of the M series to the corresponding base.
Tools used
★ Allen key, 3 mm

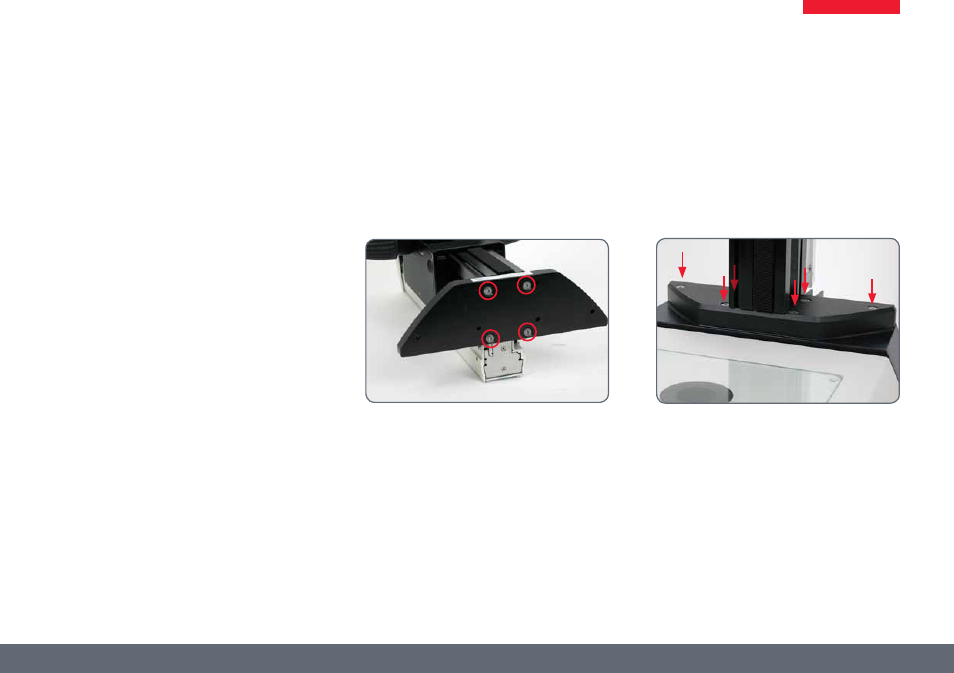

Assembling the column adapter
1. Securely install the column adapter on the
column using the four included screws.
Assembling the focusing drive
2. Securely screw the focusing column to the
base using the six included screws.
Base and Focusing Column
