The Leica LED 3000 NVI™ can be used
with any objectives that have an outer
diameter of 58 mm.
The supported working distance is
between 50 mm and 150 mm.

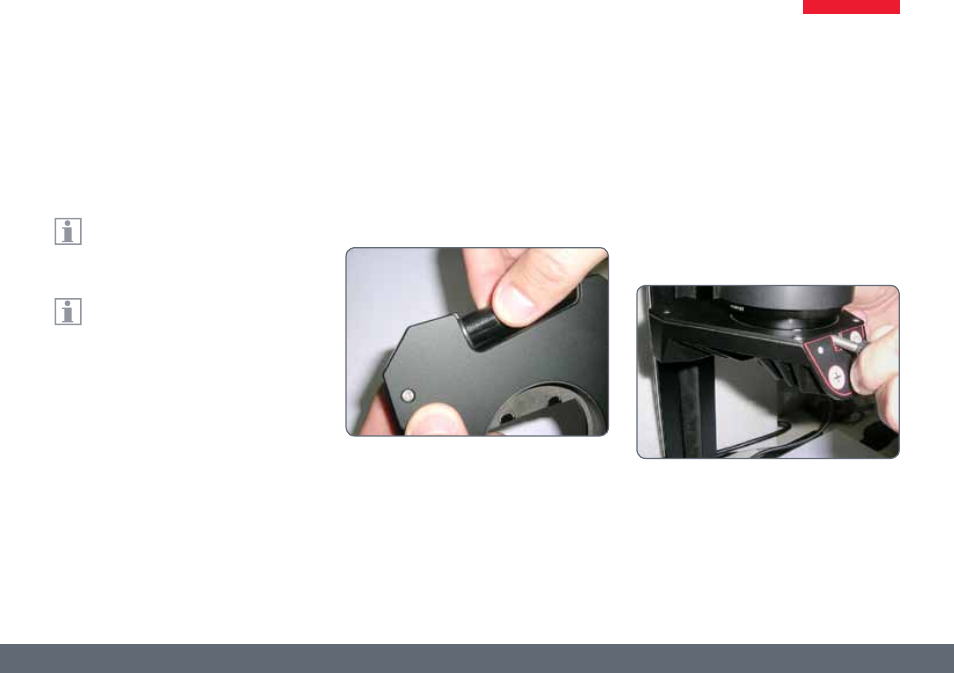

Installing the Leica LED3000 NVI™
1. Connect the Leica LED3000 NVI™ to the
focusing column via the CTL2 connection if
the focusing column is equipped with inte-
grated electronics.
Alternative installation for manual columns
1. Connect the external power supply unit
(10 450 266) to the Leica LED3000 NVI™.
2. Place the Leica LED3000 NVI™ on the optics
carrier from below and tighten the locking
screw.
Leica LED3000 NVI™ (Near Vertical Illumination)
