User Manual

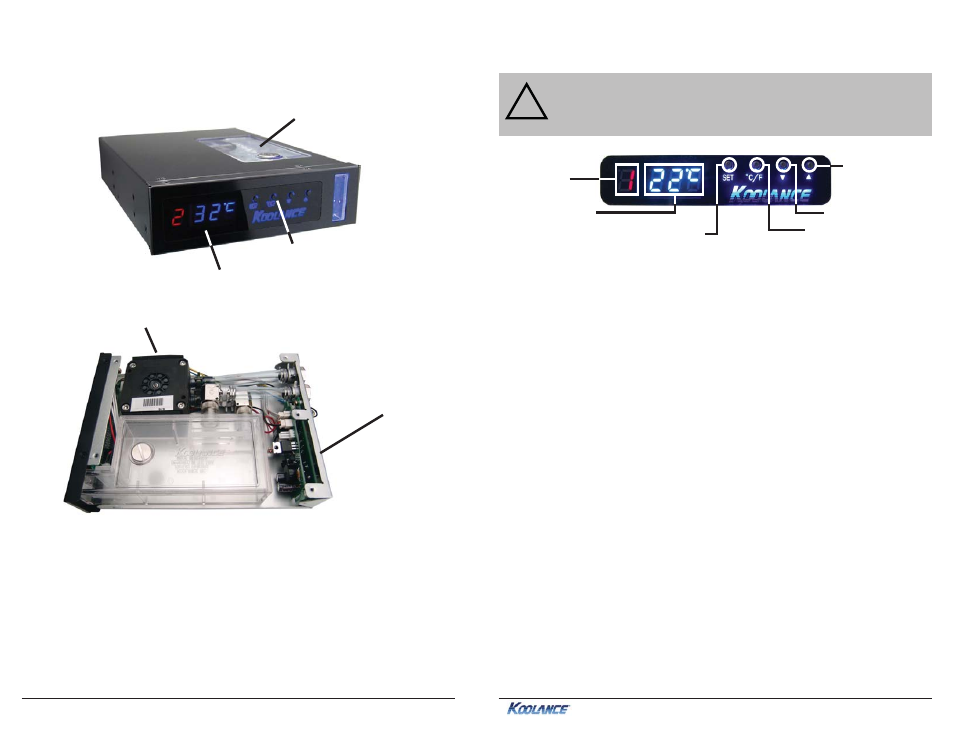

Unit Diagram
Reservoir
Reservoir & Pump - The coolant tank is transparent for easy liquid-level monitoring
through the front window. It is filled through a metal fill port on top. The reservoir
is illuminated by internal blue LEDs.
Control Board - Behind the reservoir, the Control Board is responsible for a number
of tasks, including: powering the pump, display, radiator fans (if attached), and
operating the audio alarm and shutdown modes.
Pump
System Features
Control Buttons
Display
Control Board
Current Mode
Value
Mode Select
Display in ºC or ºF
Decrease Setting
Increase Setting
Display Panel
CAUTION: This cooling system allows full user control of hardware
safety settings, such as audio alarm, shutdown, and pump speed.
Please be sure to configure your LED Display Panel properly, or dam-
age to your computer, data, and/or equipment could result.
!
Modes
There are seven display options. All are reached by continually pressing the SET
(mode select) button:
1. Temperature sensor #1 is displayed
2. Temperature sensor #2 is displayed
3. Temperature sensor #3 is displayed
4. All temperature sensors are cycled automatically
5. Fan setting is displayed (mode “F” is shown)
6. Pump setting is displayed (mode “P” is shown)
7. All temperatures, fan, and pump settings are cycled automatically
Temperature Sensors
This cooling
system can monitor up to 3 included temperature sensors. The first
LED digit indicates which sensor channel is currently displayed in the temperature
reading. To cycle through sensors, press SET.
Fan Speed
This option adjusts the radiator fan speed. Higher speeds can improve performance,
but will produce more noise. There is 1 automatic and 10 manual fan settings (1-
10). From the fan (“F”) or any cycle mode, press the
▼ or ▲ buttons to adjust fan
settings, or hold down an arrow to skip to the lowest or highest mode directly.
Automatic mode will adjust the fans for you based on temperature values from
sensor #1. This mode is reached by lowering the fan setting to “0” (Aut / A will
be displayed).
Pump Speed
There are 10 manual pump settings (1-10). From the pump (“P”) mode, press
