4 4
Introduction

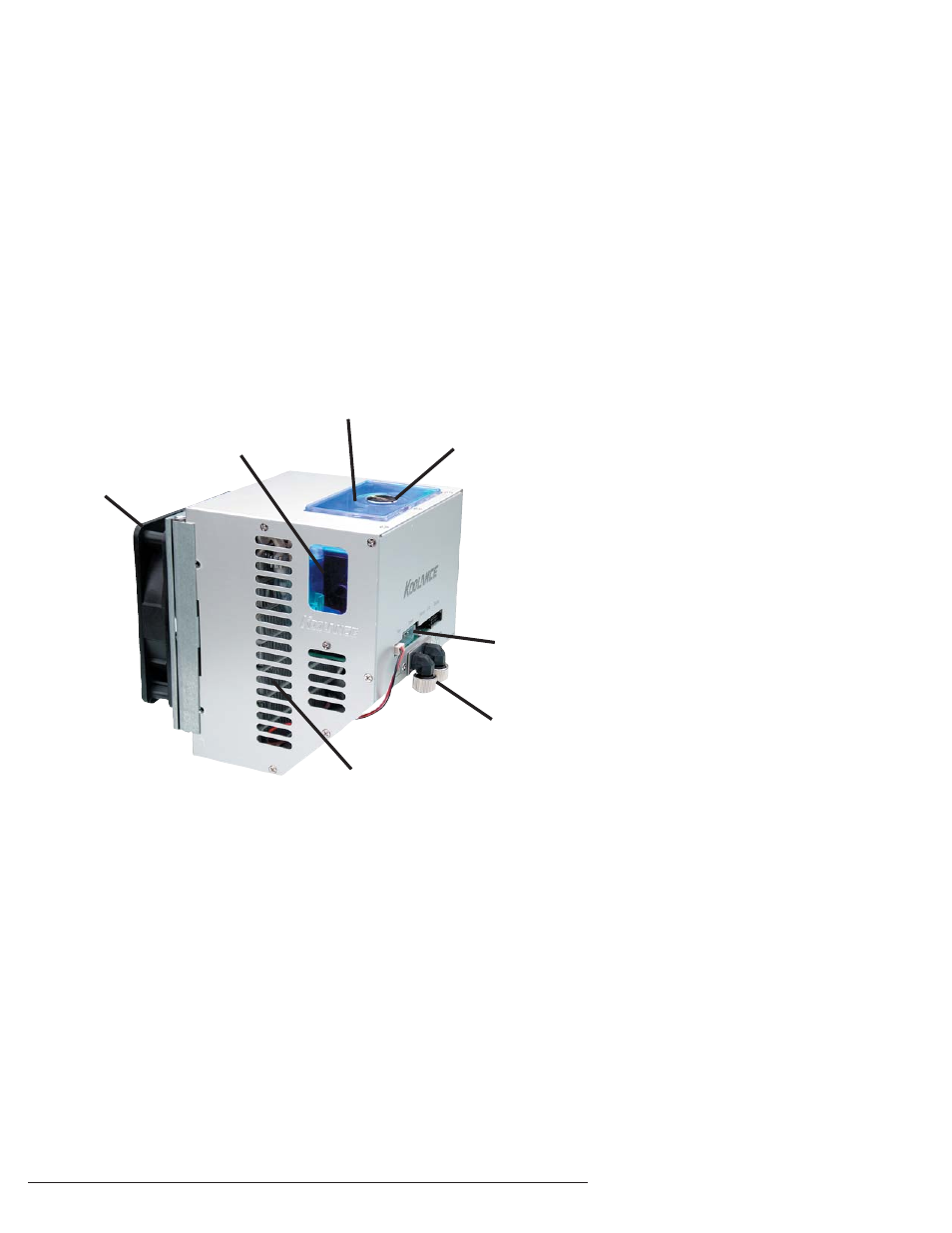

ICM-510 Overview
Reservoir & Pumps
Radiator Cooling Fan
Reservoir Refi ll Plug
Radiator (Primary Heat Exchanger)
Power Circuit
Connections
Coolant Inlet / Outlet
Nozzles
Reservoir & Pumps - The coolant tank is translucent for easy liquid-level monitoring.
Dual pumps help to provide higher system reliability; if one pump should fail, the
other can maintain fl ow, gradually bringing the system to shut itself down (see
LED Display Panel).
Power Circuit Board - The Power Circuit is responsible for a number of tasks,
including: powering the pumps, LED display (sold separately), heat exchanger
fans, and operating the audio alarm and shutdown modes.
Radiator - The primary heat exchanger is located behind the cooling fan. This is
the main cooling element, and provides high thermal dissipation in a relatively
small area. Inside, an aluminum mesh (Louver fi n) is webbed between a looping
liquid path.
Coolant Level
Window
