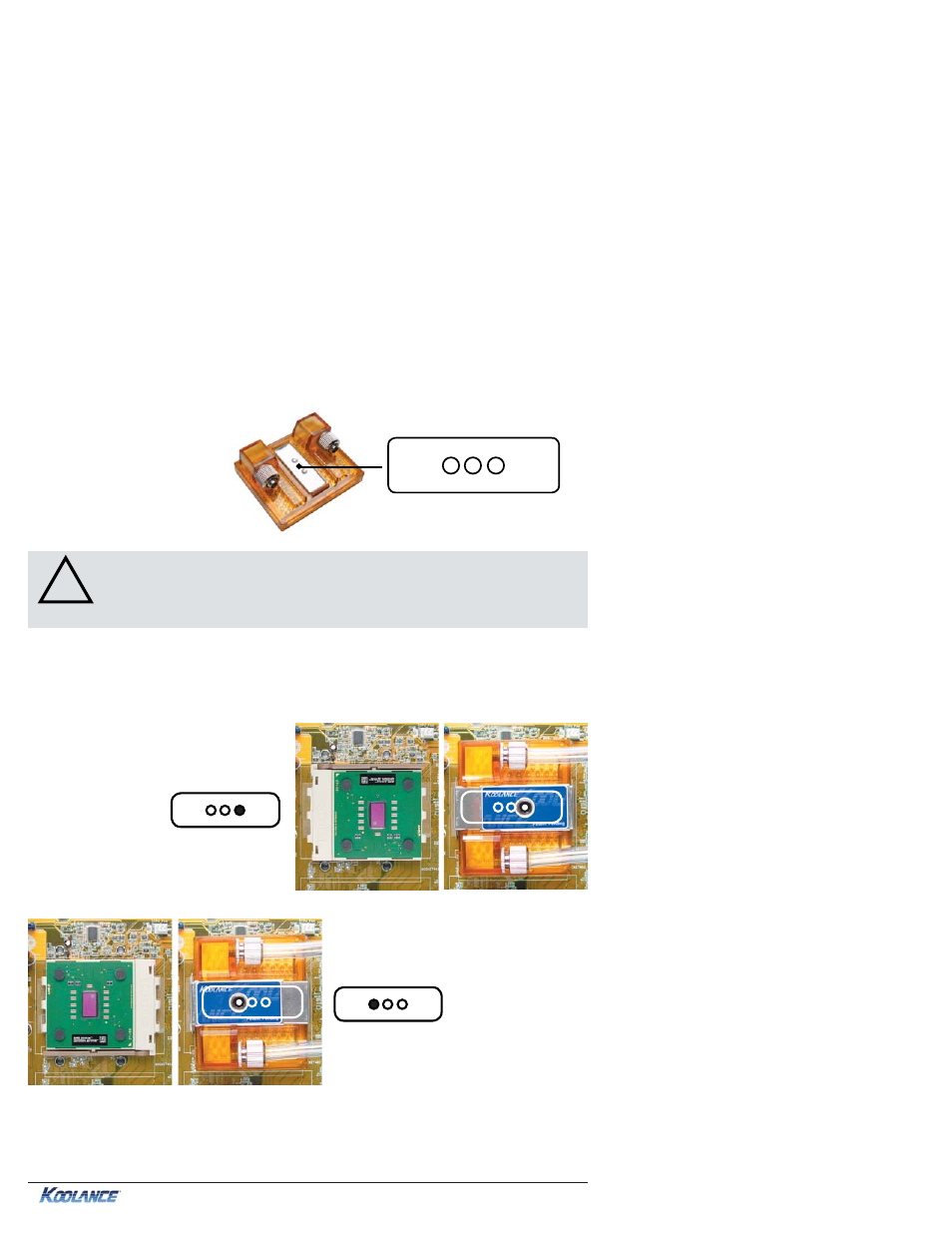

For AMD Athlon/XP processors, the left or right receptacles will be used, depending
on which direction the CPU socket faces in relation to the cooler:
Screw alignment
for right-side
AMD Athlon/XP
processors
Screw alignment
for left-side
AMD Athlon/XP
processors
3 center holes correspond
with different CPU socket
positions
CAUTION: Installing the tension screw into the wrong cooler recep-
tacle can cause insuffi cient cooler contact, and may result in hardware
damage.
!
There are 3 metal center receptacles on the CPU-305 cooler:
Tension Screw
For Intel P-4 (478 & 775), Xeon, AMD Athlon 64, FX, or Opteron processors, use
the center hole:
