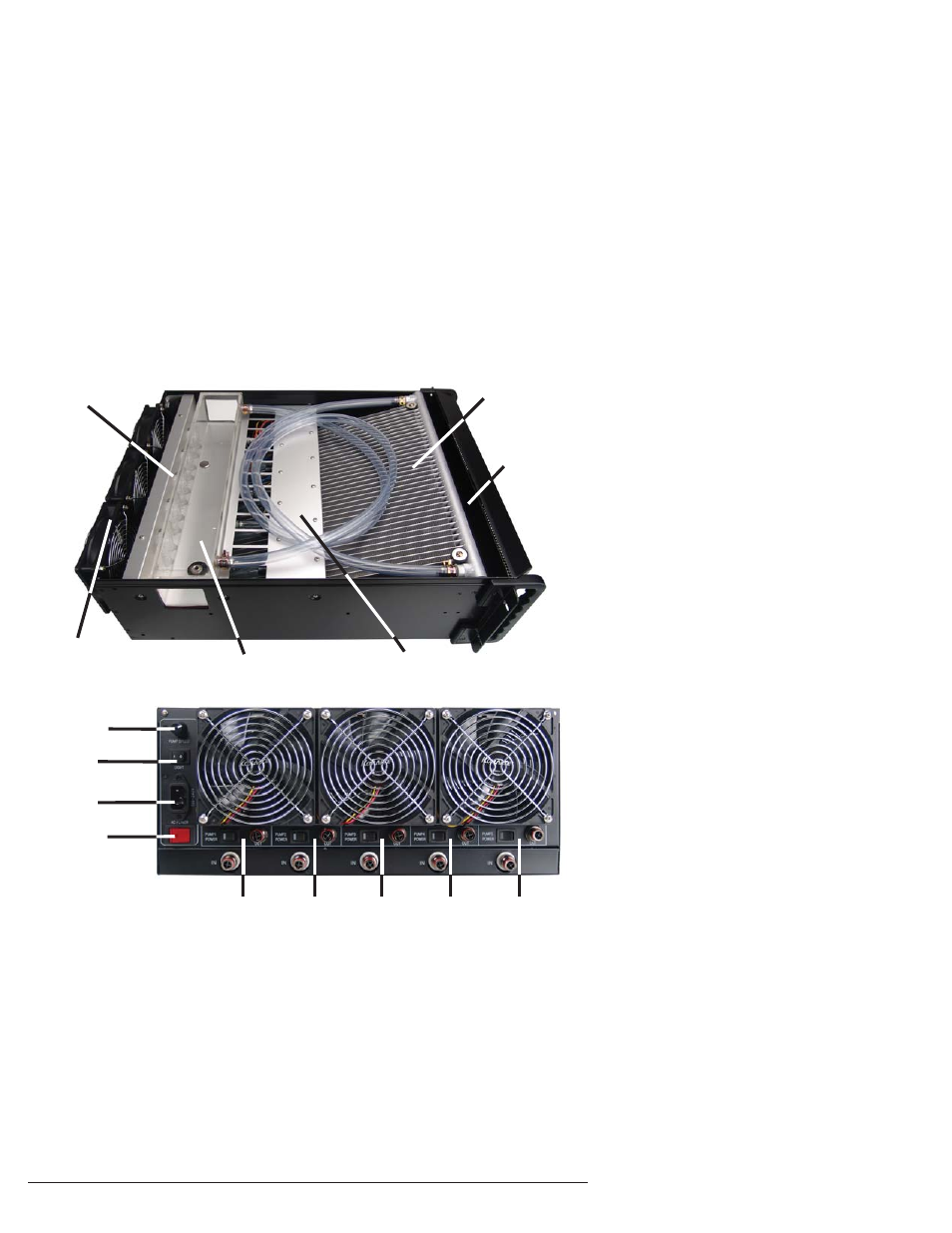

ERM-3K4U System Diagram
Reservoir
Rear Radiator
Cooling Fans
Radiator
(Primary Heat
Exchanger)
*Inlet / Outlet Nozzles
& Power Switch for:
Radiator -
The primary heat exchanger is the main cooling element, and provides
high thermal dissipation in a relatively small area. Inside, an aluminum mesh
(louver fi n) is webbed between horizontal liquid paths.
Reservoir & Pump -
The coolant tank is transparent for easy liquid-level monitoring
throughthe top or side windows. It is fi lled through a small metal plug on the top
side.
Flow Meters -
Each pump is paired with a fl ow meter, viewable through the top
reservoir window. These are provided for the visual diagnosis of pump issues.
Lighting for the fl ow meters can be toggled with the rear Illumination Switch.
Pump(s)
Pump 1
Pump 2
Pump 3
Pump 4
Pump 5
*Number of pumps present varies by model.
Front Radiator
Cooling Fans
Master Pump
Speed Dial
Flow Meter
Illumination Switch
Power Plug
Master Power
Switch
Pump Flow
Meters
