Kargo Master EZ Lo-Down Driver Side Mechanism (40863) - Manual (Page 9)

E
D
(-010) flat on
ladder side
channels
Spring
STEP 10

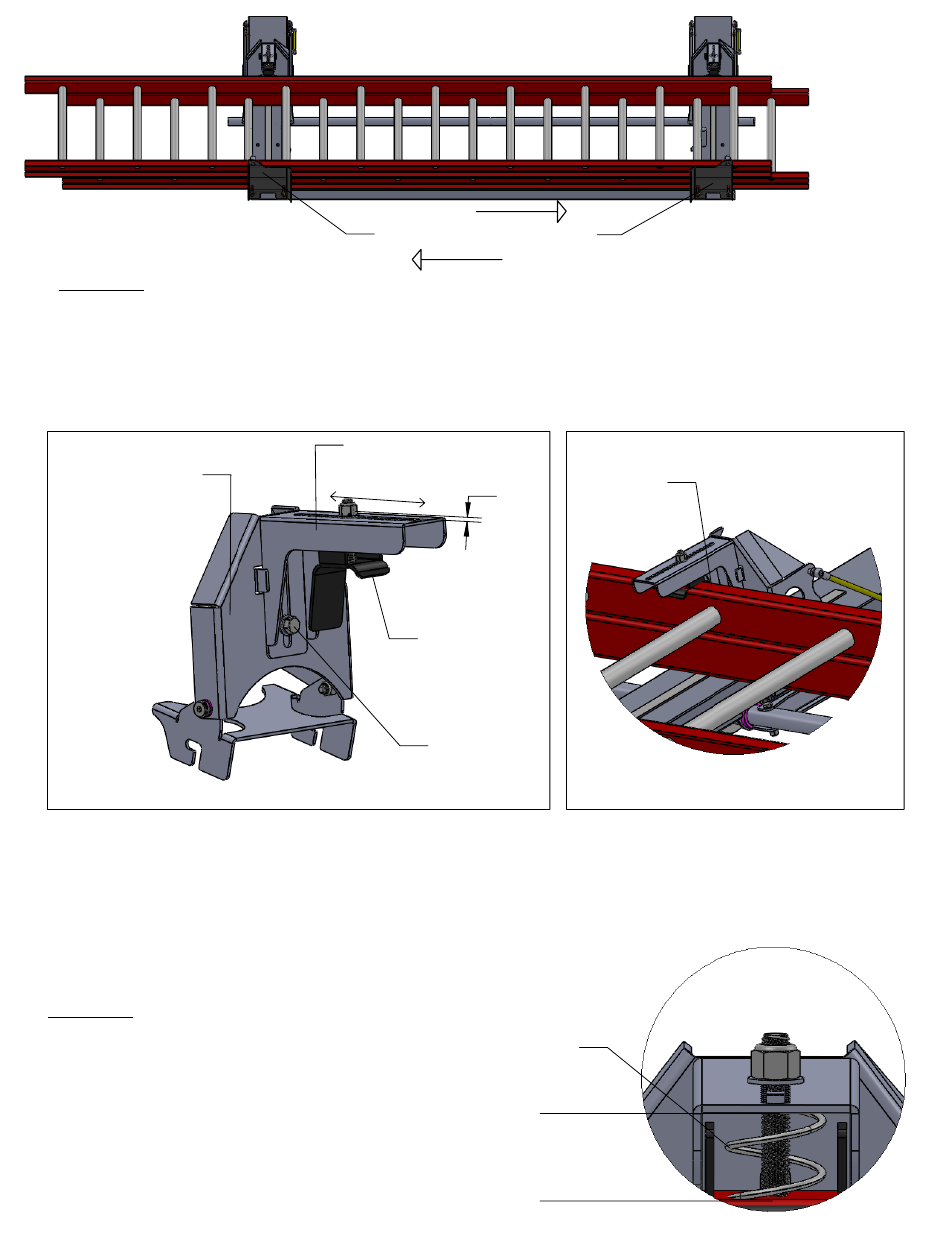

With ladder placed against hold down plates (-008) per [DIAGRAM 3] move
ladder (front to rear) to a position that allows clamp (-010) to register on ladder
side channels in a location that allows (face) to contact the flat on the ladder
side channel. Move clamp (-010) so that it is in proper location in hold down
assembly (-007). Tighten so 1/8" of stud is extended through nut shown in
[DIAGRAM 3d].
Hold Down Plates (-008)
DIAGRAM 3
1/8"
Hinge Assembly
(-006)
Hold Down Assembly
(-007)
(-010)
Next, loosen the 3/8 x 3/4 hex bolt (d). Push down on the hold down assembly so
the spring is compressed about 1/2" to 3/4" when the rack is down in transport
position. This will ensure that there is enough pressure placed on the ladder to
prevent movement. Now tighten bolt (d) to hold position. Rotate crank handle up
and down and inspect for proper clamping action.
Compress
1/2" to 3/4"
(d)
STEP 11
If no other accessories are to be used
on the opposite side, you may want
to install the load lock plates (-070) so
other materials may be carried. Use
5/16 x 3/4 carriage bolts (f) 5/16 flat
washers (k) and 5/16 nylock nuts (h).
See [Diagram 8] on the next page.
DIAGRAM 3d DIAGRAM 3c
