AJ
Nylon Washer (x2)
(-038)
5/16 Nut
(m)
Flange Bushing
(-036)
Lift Arm
(-030)
Lift Arm
(-027)
Ladder Pan
(-005)
5/16 Flat washer
(k)
BF
(m)
Existing Cross
Bows and feet
(not included
in the 40863 kit)
(k)
(-038) (-036) (-005)

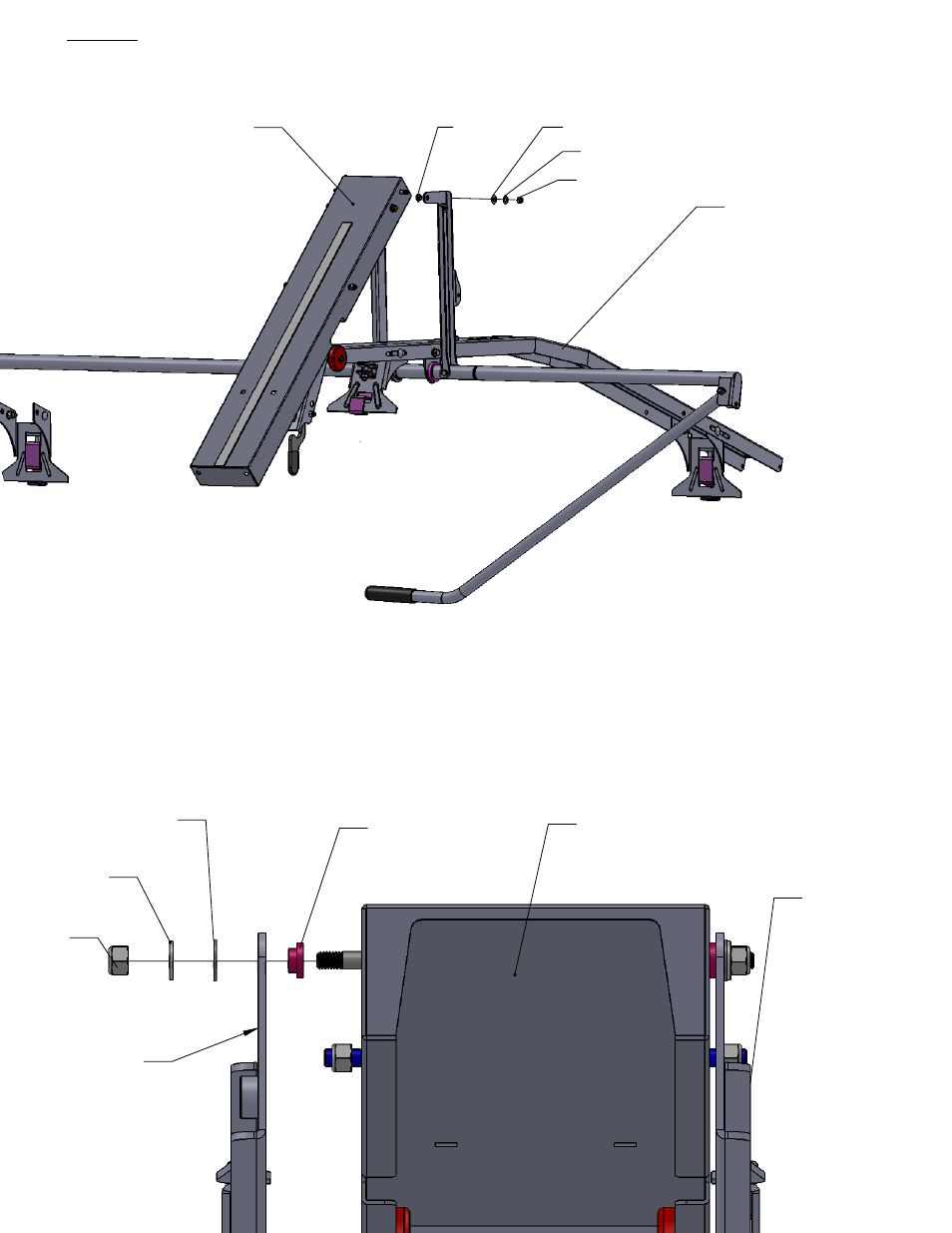

DIAGRAM 6A
Now insert flange bushing(-036) between pan(-005) and arm(-027/-030) as
shown in [DIAGRAM 6A]. Now Insert nylon washer(-038) on the outside of lift
arm(-027/-030) and flat washer(k), then 5/16 nylock(h) per [DIAGRAM 6A] and
tighten. Follow same procedure on each arm. Parts should rotate freely.
STEP 3
Next, drop ladder pan (-005) over wheels through side slots in pan and line up
holes in arms (-027 / -030).
