Kargo Master EZ Lo-Down Driver Side Mechanism (40863) - Manual (Page 4)

AD
(f)
(k)
(h)
Rear Arm
Lock Bracket
(-060)
AE
Nylon Washer
(-038)
Wheel
(-002)
Wheel Cap
(-004)
Axle
(-003)
Cross Bow
(-001)
Holes "A"

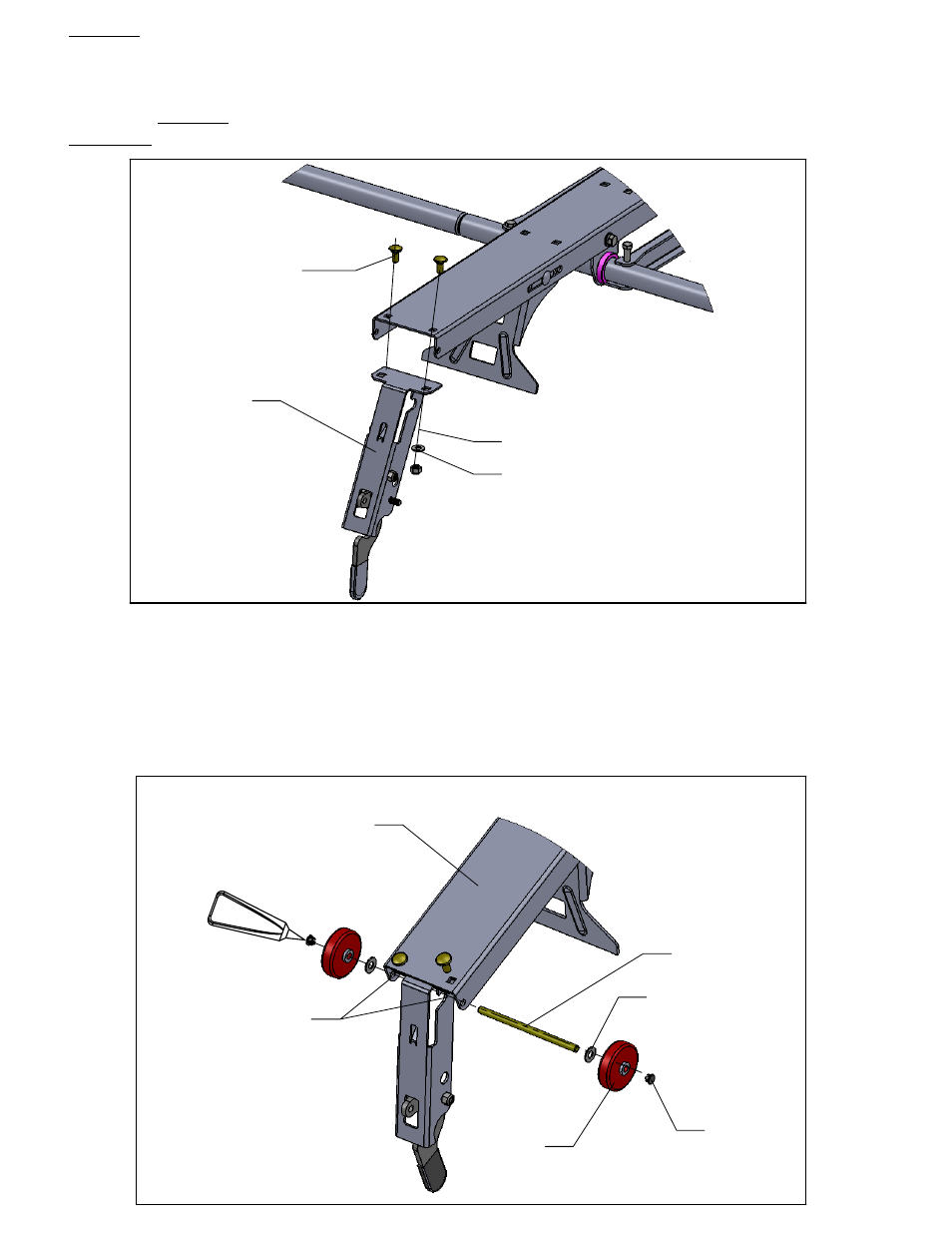

STEP 2
Install rear arm lock bracket (-060) to bottom of rear cross bow per [Diagram
11]. Attach with 2 each 5/16 x 3/4 carriage bolts (f) 2 each 5/16 flat washers
(k) and 2 each 5/16 nylock nuts (h). NOTE: You will need to attach this
bracket before inserting axle in the following step (axle must pass
through bracket).
DIAGRAM 11
Install 5/16" axle rods (-033) trhough holes "A" in the cross bow channel
(-031). Install nylon washer (-038 ) on each side of bow per [Diagram 1].
Next, slip on the wheels (-002) and use a small amount of E-6000 on wheel
caps (-004) then insert into the ends of the wheels. Repeat procedure on
other cross bow.
DIAGRAM 1
E-6000
