Kargo Master EZ Lo-Down Driver Side Mechanism (40863) - Manual (Page 6)

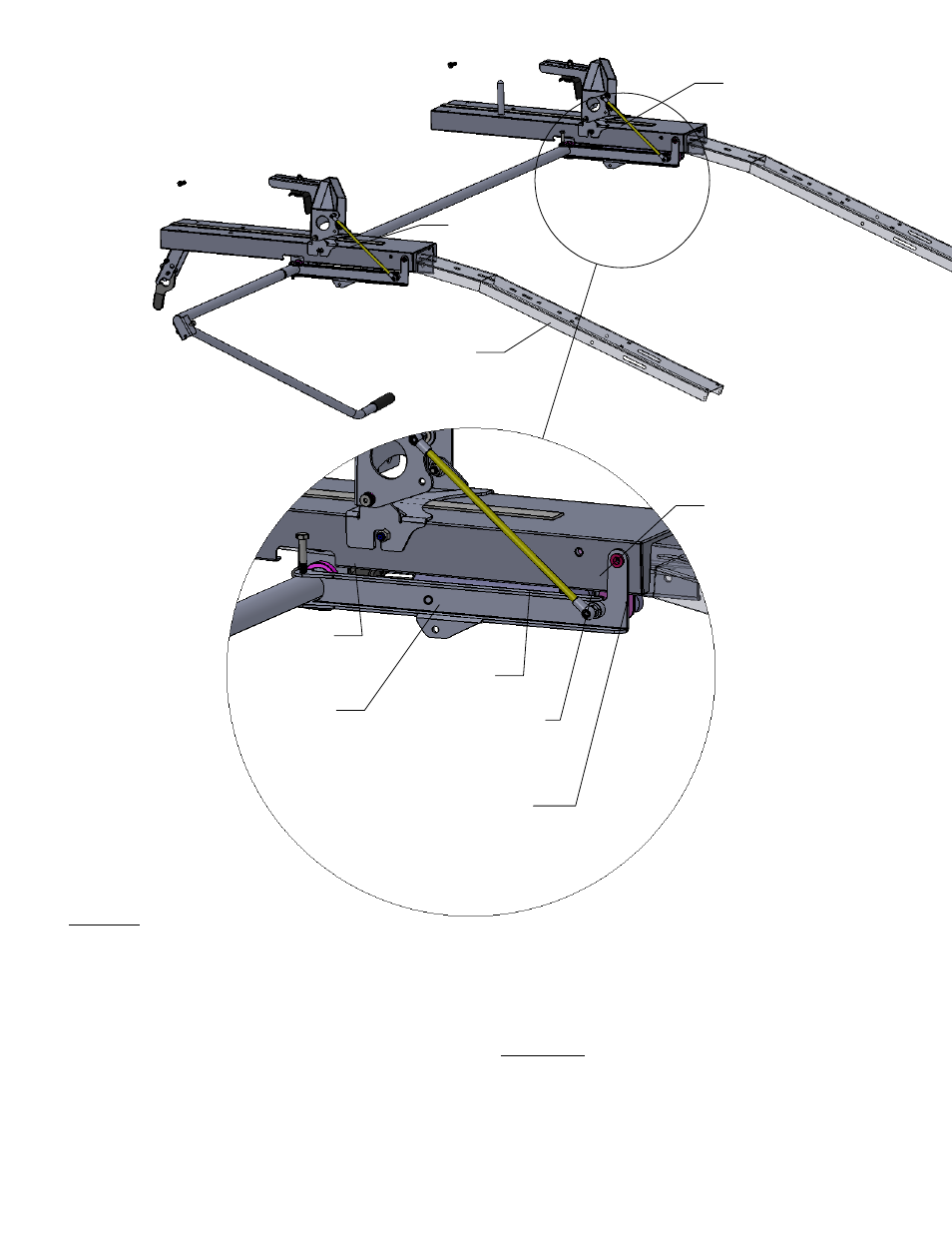

FRONT
REAR
Bump Stop
(-049)
Bump Stop
(-049)
Existing Cross Bows
(not included
in the 40863 kit)
Cam Plate
Damper
Spring
Mounting
Location "B"
Mounting
Location "A"
Mount
(-048)
STEP 4
Now insert 2 each bump stops (-049) into 1/2" holes on top of cross bows with
flat side facing up. Install spring/damper mount (-048) with offset installed per
[DIAGRAM 7]. Fasten using 2 each 3/8 x 1 carriage bolts (a), 2 each 3/8 flat
washers (b) and 2 each 3/8 nylock nuts (c).
Please Note: Gas spring is identified by a red dot on barrel. Besure not to mix the
spring and damper. Now attach damper (large tube end) to spring/damper
mount (-048) in mounting location "B". Snap large end onto ball stud. Next, insert
rod end and snap onto ball stud in cam plate. Now install the gas spring (large
tube end) to spring/damper mounting location "A". Snap large end onto ball
stud. Next, with rack in lowered position insert rod end and snap onto ball stud
in cam plate.
