Kargo Master Clamp & Lock Curb Side (40803) - Manual (Page 7)

(v)
(k)
(h)
Gutter
Mount
Assembly

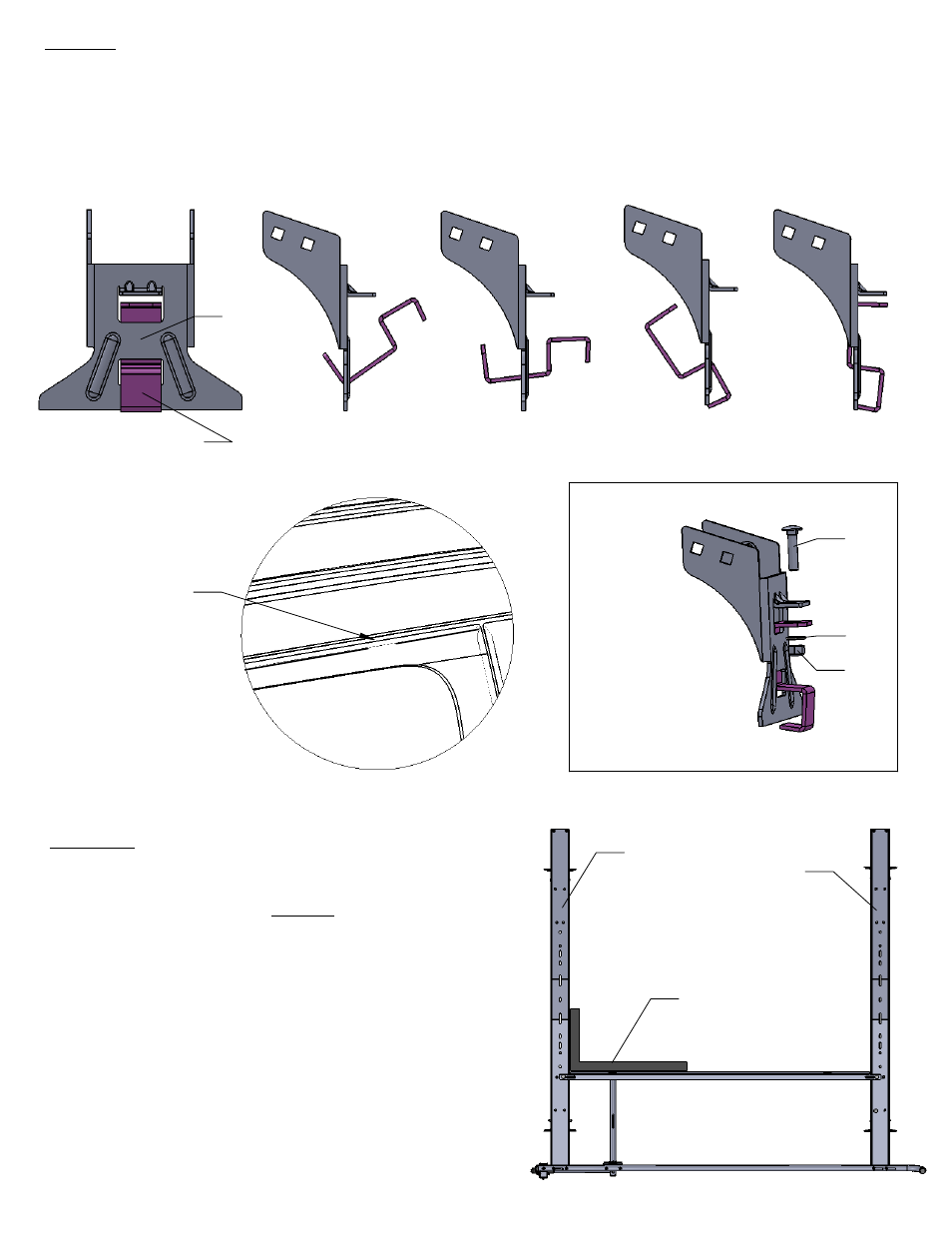

DIAGRAM 5
Gutter Clamp
(-044)
Gutter
Mount
(-041)
Cross Bow
(-001)
Square
Cross Bow
(-001)
BW
Seat Gutter
Clamp
Into Channel
Before
Tightening
STEP 9
Now insert gutter clamp (-044) to mount (-041) per [DIAGRAM 5]. Align holes for
clamp bolt and use 4 each 5/16 x 1 1/2 carriage bolts (v), 4 each 5/16 flat washers
(k), 4 each 5/16 nylock nuts (h). Leave hardware loose for final adjustment on the
next step.
DIAGRAM 5a
STEP 10
If your rack was assembled off the van you
can now install it per STEP 1. Be certain the
rack cross bows (-001) are square per
[DIAGRAM 5a] before tightening bolts as
binding may occur if rack is out of square.
Make sure the gutter mount (-044) is properly
seated in rain gutter channel before
tightening gutter clamp (-041). Do not over-
tighten clamp. A torque rating of 150 inch-
pounds is suggested as deformation of
clamp and gutter may occur.
