Kargo Master Clamp & Lock Curb Side (40803) - Manual (Page 4)

(u)
(h)
Side Tube
(-012)
Cross Bow
(-001)
(k)
E6000

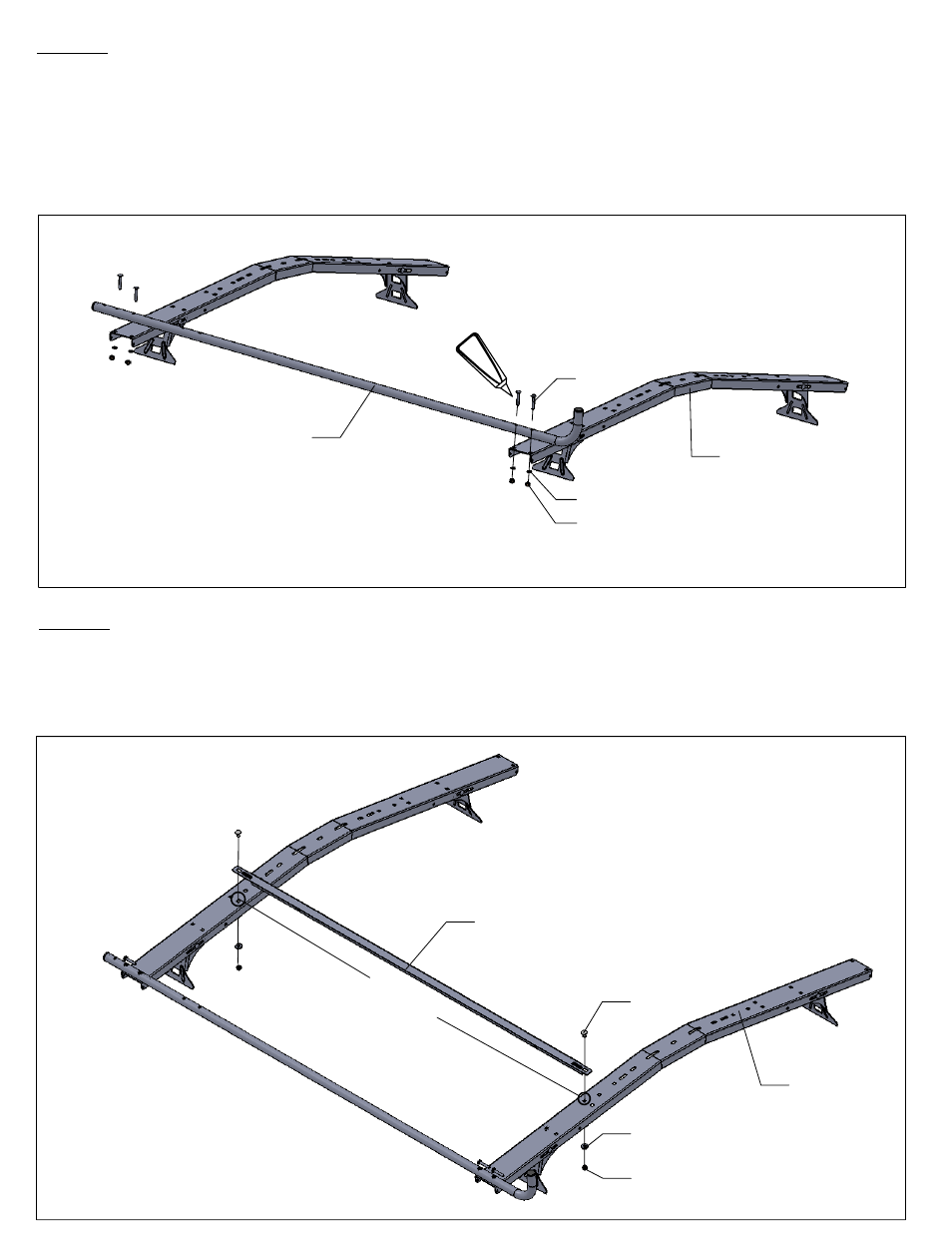

DIAGRAM 1b
STEP 3
Install support angle (-014) per [DIAGRAM 1c] using 2 each 3/8 x 1 carriage bolts
(a), 2 each 3/8 flat washers and 2 each 3/8 nylock nuts (c). Install into third square
hole from the end of cross bow (-001).
Support Angle
(-014)
(a)
(b)
(c)
Cross Bow
(-001)
Third Hole
DIAGRAM 1c
STEP 2
Install side tube (-012) per [DIAGRAM 1b] using 4 each 5/16 x 1 3/4 carriage bolts
(u), 4 each 5/16 flat washers (k) and 4 each 5/16 nylock nuts (h). Run bead
around the head of the button head bolts with E6000 sealer (supplied). (This will
prevent possible corrosion of the tube I.D. )There is 1 each of a 5/16 nylock jam
nut, a jam nut is thinner than the other nuts. Find it and set it aside for step 8
