CHAPTER 2 PAPER HANDLING

2–5

Loading Paper into the Feeder

To load paper into the feeder, follow these steps.

✒ Note
This section describes loading paper into the front multi-purpose sheet
feeder 1. Load paper into the rear sheet feeder 2 in the same way as
described here. Remember, however, that paper sizes vary for Feeder 1
and Feeder 2. For paper sizes, see

“PAPER SPECIFICATIONS”

Chapter 2.

1. Open the multi-purpose sheet feeder by gently pulling the tabs

forward towards you. ( ➀ )

2. Move the paper guides horizontally to the widest position. ( ➁ )

PULL

HERE TO

INSERT PAPER

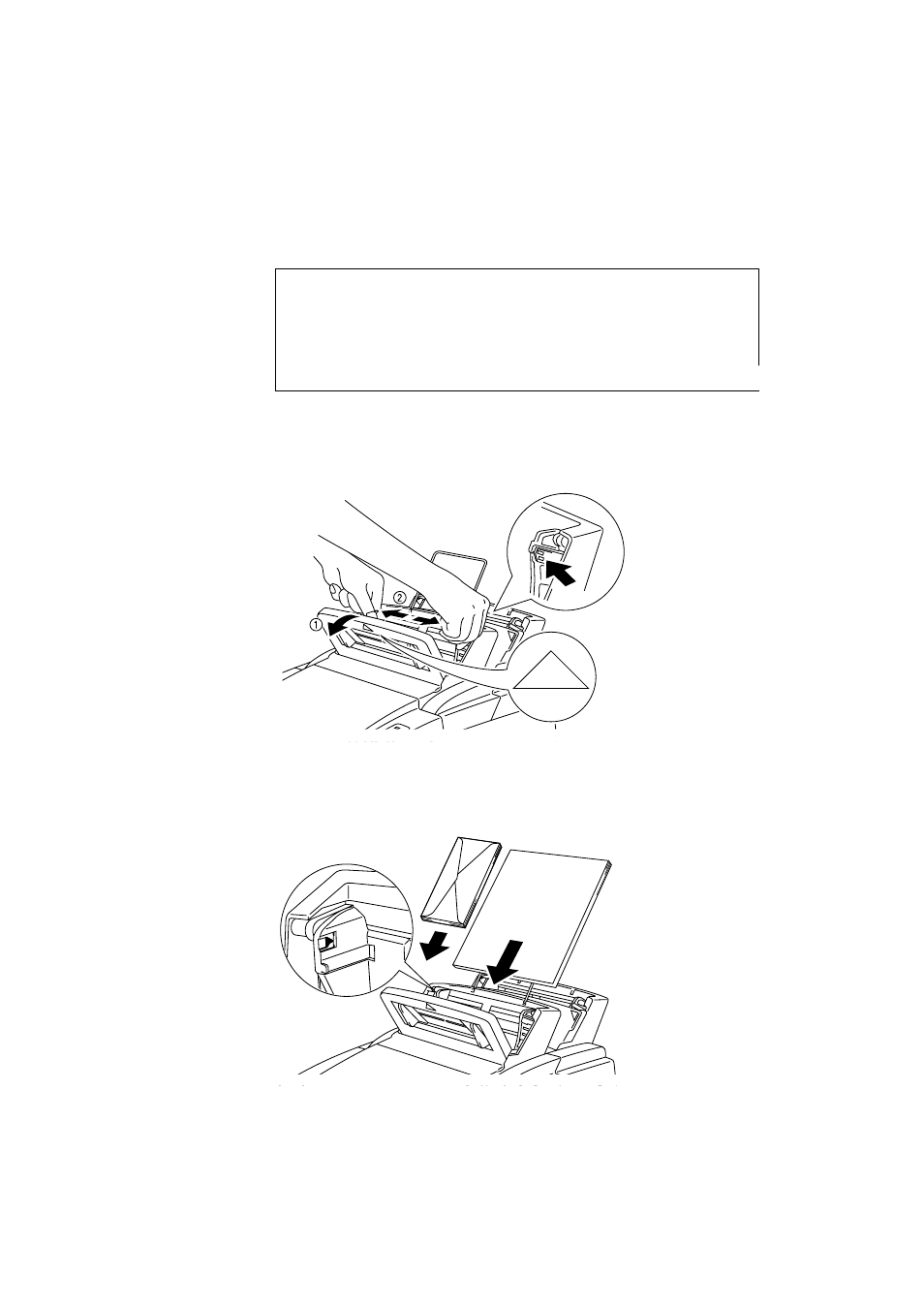

Fig.2-4 Opening the Feeder and Moving the Paper Guides

3. Load paper into the multi-purpose sheet feeder with the printing

surface face down.

Fig. 2-5 Loading Paper or Envelopes in the Feeder
