Order details:

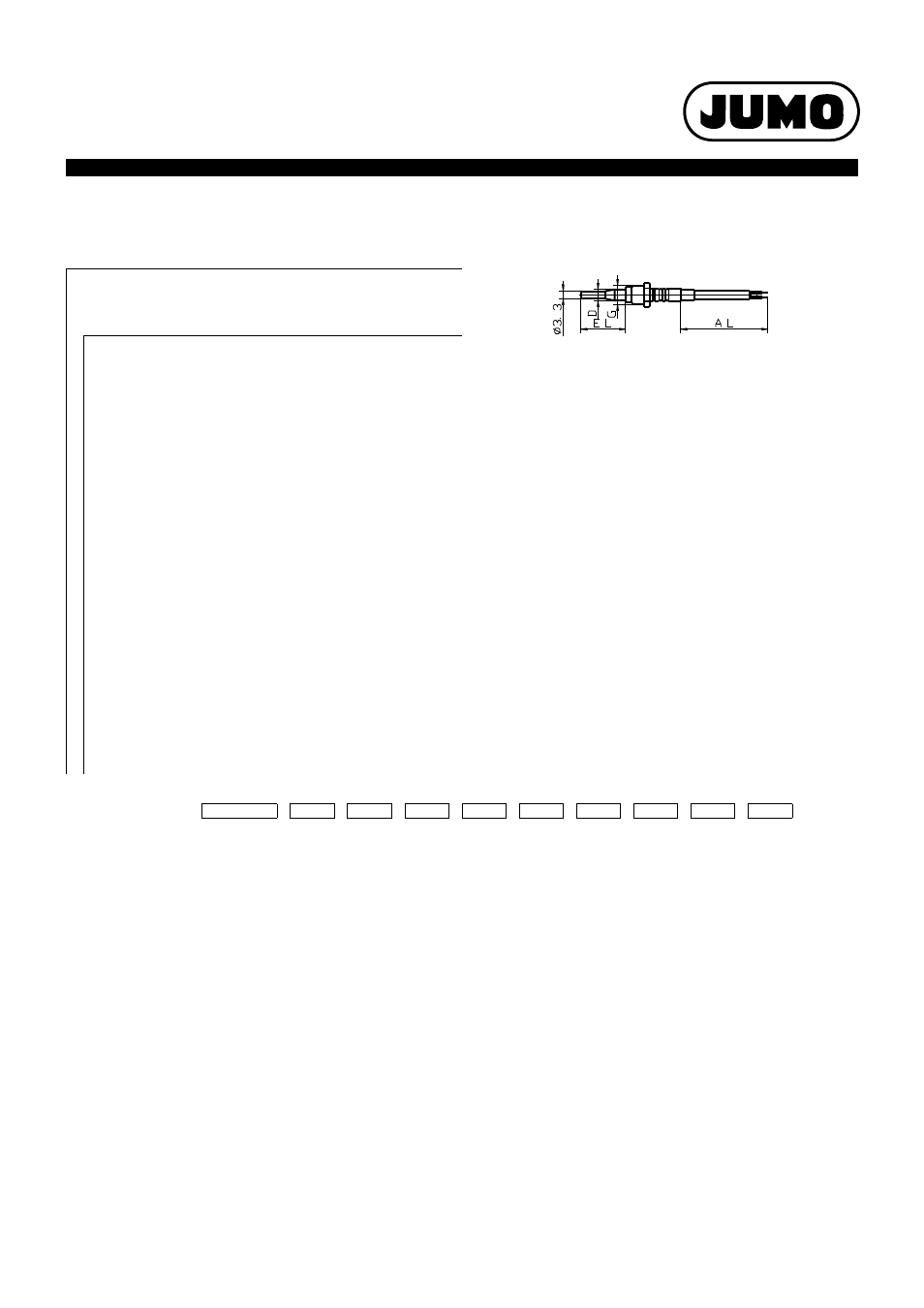

Screw-in RTD temperature probes with connecting cable
(1) Basic version
902050/30
Screw-in RTD temperature probe with loose
screw fitting and stepped protection tube
(2) Operating temperature in °C / connecting cable
x
380
-50 to +200°C / silicone
(3) Measuring insert
x
1001
1 x Pt100 in 3-wire circuit
x
1003
1 x Pt100 in 2-wire circuit
(4) Tolerance class to EN 60 751
x
1
Class B (standard)
x
2
Class A
(5) Protection tube diameter D in mm
x
5.4
5.4mm dia. stepped down to 3.3mm
(6) Fitting length EL in mm
x
27.5
27.5mm
(7) Process connection
x
114
thread M 10 x 1
(8) Connecting cable end
x
03
bare cable ends
x
11
ferrules to DIN 46 228 Part 4 (standard)
x
13
receptacle 6.3 to DIN 46 247
x
80
multipole connector (please specify type in plain text)
x
99
to customer specification
(9) Connecting cable length AL in mm (500
≤
AL
≤
500000)
x
2500
2500mm
x
...
please specify in plain text (500mm steps)
(10) Extra codes
x
000
no extra code
x
315
cable protector: coil
x
316
cable protector: tube
x
317
shielded connecting cable
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
Order code
-
-
-
-
-
-
-
-
/
,...
Order example
902050/30 -
380
- 1003 -
1
-
5.4
-
27.5
-
114
-
11
- 2500 /
000
1
1.List extra codes in sequence, separated by commas.
