Data Sheet 90.2050 (90.2005) Page 1/5
JUMO GmbH & Co. KG
Delivery address: Mackenrodtstraße 14,
36039 Fulda, Germany
Postal address: 36035 Fulda, Germany
Phone: +49 661 6003-0
Fax: +49 661 6003-607
E-mail: [email protected]
Internet: www.jumo.net
JUMO Instrument Co. Ltd.
JUMO House
Temple Bank, Riverway
Harlow - Essex CM20 2DY, UK
Phone: +44 1279 63 55 33
Fax:
+44 1279 63 52 62
E-mail: [email protected]
Internet: www.jumo.co.uk
JUMO Process Control, Inc.
8 Technology Boulevard
Canastota, NY 13032, USA
Phone:
315-697-JUMO
1-800-554-JUMO
Fax: 315-697-5867
E-mail: [email protected]
Internet: www.jumo.us

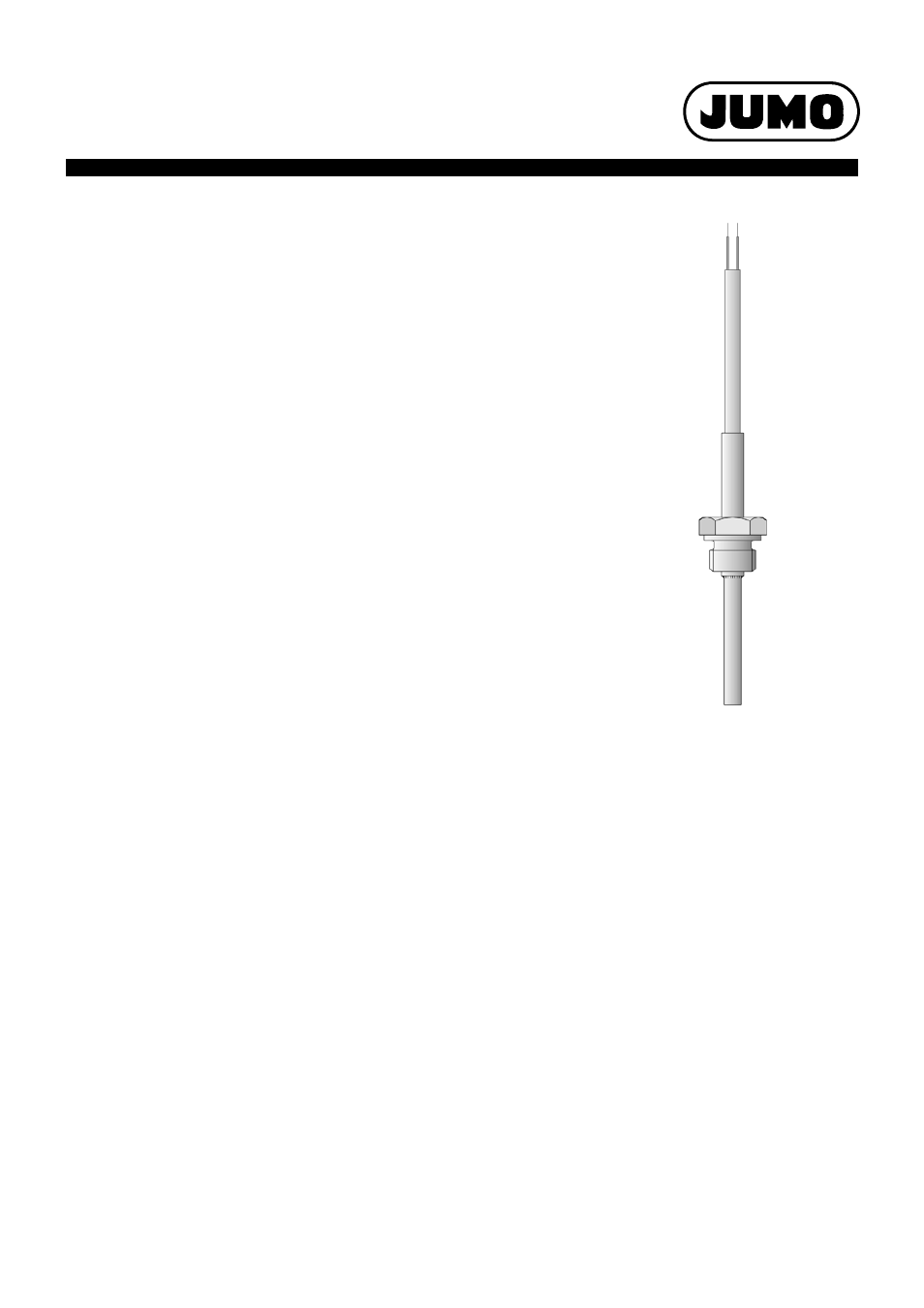

Screw-in RTD temperature probes
with connecting cable
■ for temperatures from -50 to +400°C
■ as single or twin RTD temperature probe
■ in 2-wire, 3-wire or 4-wire circuit
■ connecting cable in PVC, silicone, PTFE or with metal braiding
Screw-in RTD temperature probes are mainly used for measuring temperatures in liquids
and gases. An important selection criterion is their reliable sealing against both negative
and positive pressures. Applications include HVAC, refrigeration, heating installations, ov-
ens, furnaces and plant engineering.
Depending on the version, the connecting cables are suitable for use in dry and humid ar-
eas within the temperature range -50 to +350°C. The junction between cable and protec-
tion tube incorporates strain relief. A cable protector can be supplied as an option.
The measuring insert is normally fitted with a Pt100 temperature sensor to EN 60 751,
Class B in 2-wire circuit. Versions with Pt500 or Pt1000 are also available. In addition,
there is a choice of 3-wire or 4-wire circuit connections.
Technical data
Connection available with cable ends as: bare wires, with ferrules, receptacles or multipole connector
Connecting cable PVC, ambient temperature -5 to +80°C (+105°C)
silicone, ambient temperature -50 to +180°C
PTFE, ambient temperature -190 to +260°C
metal braiding, ambient temperature -50 to +350°C
connecting cable can optionally be supplied with shielding
Process connection thread, stainless steel 1.4571
Protection tube stainless steel 1.4571 (Type 902050/30 Inconel 2.4816), 5mm, 5.4mm, 6mm and 8mm dia.
Measuring insert Pt100 temperature sensor, EN 60 751, Cl. B, 2-wire circuit
Response times t
0.5
approx. 2sec, t
0.9
approx. 6sec, in water 0.2m/sec, 6mm dia.
Accessories pocket, see Data Sheet 90.9721 and 90.2440
