2013-01-21/00073472

Data Sheet 902210

Page 7/10

JUMO GmbH & Co. KG
Delivery address: Mackenrodtstraße 14

36039 Fulda, Germany

Postal address:

36035 Fulda, Germany

Phone:

+49 661 6003-0

Fax:

+49 661 6003-607

E-mail:

[email protected]

Internet:

www.jumo.net

JUMO Instrument Co. Ltd.
JUMO House
Temple Bank, Riverway
Harlow, Essex CM20 2DY, UK
Phone: +44 1279 635533
Fax:

+44 1279 635262

E-mail:

[email protected]

Internet: www.jumo.co.uk

JUMO Process Control, Inc.
6733 Myers Road
East Syracuse, NY 13057, USA
Phone: 315-437-5866

1-800-554-5866

Fax:

315-437-5860

E-mail:

[email protected]

Internet: www.jumousa.com

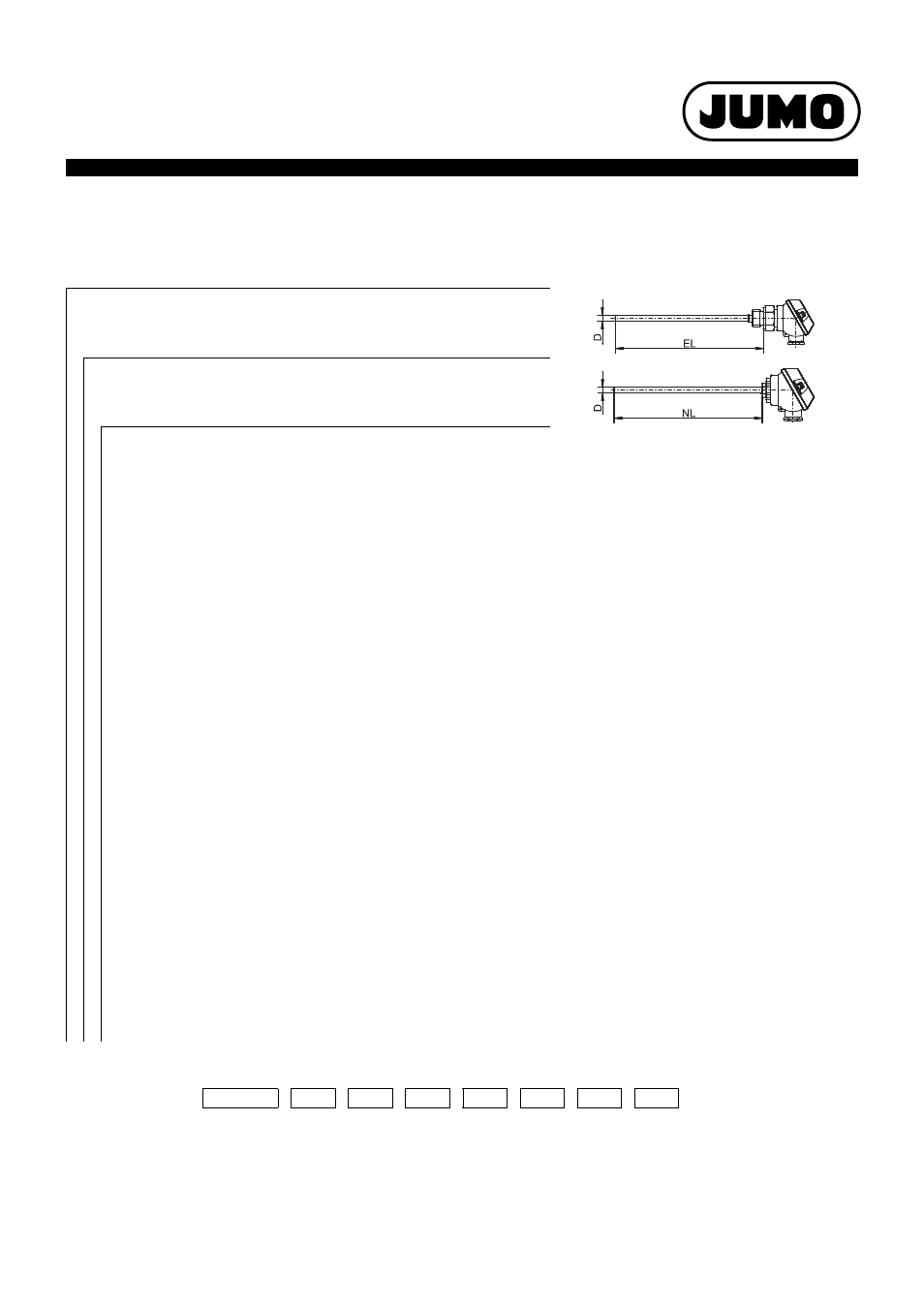

Order details:

mineral-insulated RTD temperature probe according to DIN EN 60751

(1) Basic type

902230/40

Screw-in mineral-insulated RTD temperature probe
with form J terminal head

902230/41

Push-in mineral-insulated RTD temperature probe
with form J terminal head

(2) Operating temperature in °C

x x

150

-200 to +600 °C

x x

415

-50 to +600 °C (standard)

(3) Measuring insert

x x

1001

1x Pt100 in 3-wire circuit

x x

1003

1× Pt100 in 2-wire circuit (standard for transmitters extra code 330)

x x

1011

1x Pt100 in 4-wire circuit

x x

2003

2× Pt100 in 2-wire circuit

(4) Tolerance class according to DIN EN 60751

x x

1

Class B (standard)

x x

2

Class A

x x

3

Class AA (1/3 DIN B)

(5) Protection tube diameter D in mm

x x

3

Ø 3 mm

x x

6

Ø 6 mm

(6) Insertion length EL/NL in mm (100 to 10000 mm)

x x

100

100 mm

x x

200

200 mm

x x

300

300 mm

x x

...

Please specify in plain text (50 mm steps)

(7) Process connection

x

000

Without

x

102

Screw connection G 1/4

x

104

Screw connection G 1/2

x

105

Screw connection G 3/4

(8) Extra codes

x x

000

Without

x x

330

1× analog transmitter, 4 to 20 mA output, data sheet 707030

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

Order code

-

-

-

-

-

-

/

Order example

902230/40

-

415

-

1001

-

1

-

3

-

100

-

104

/

000
