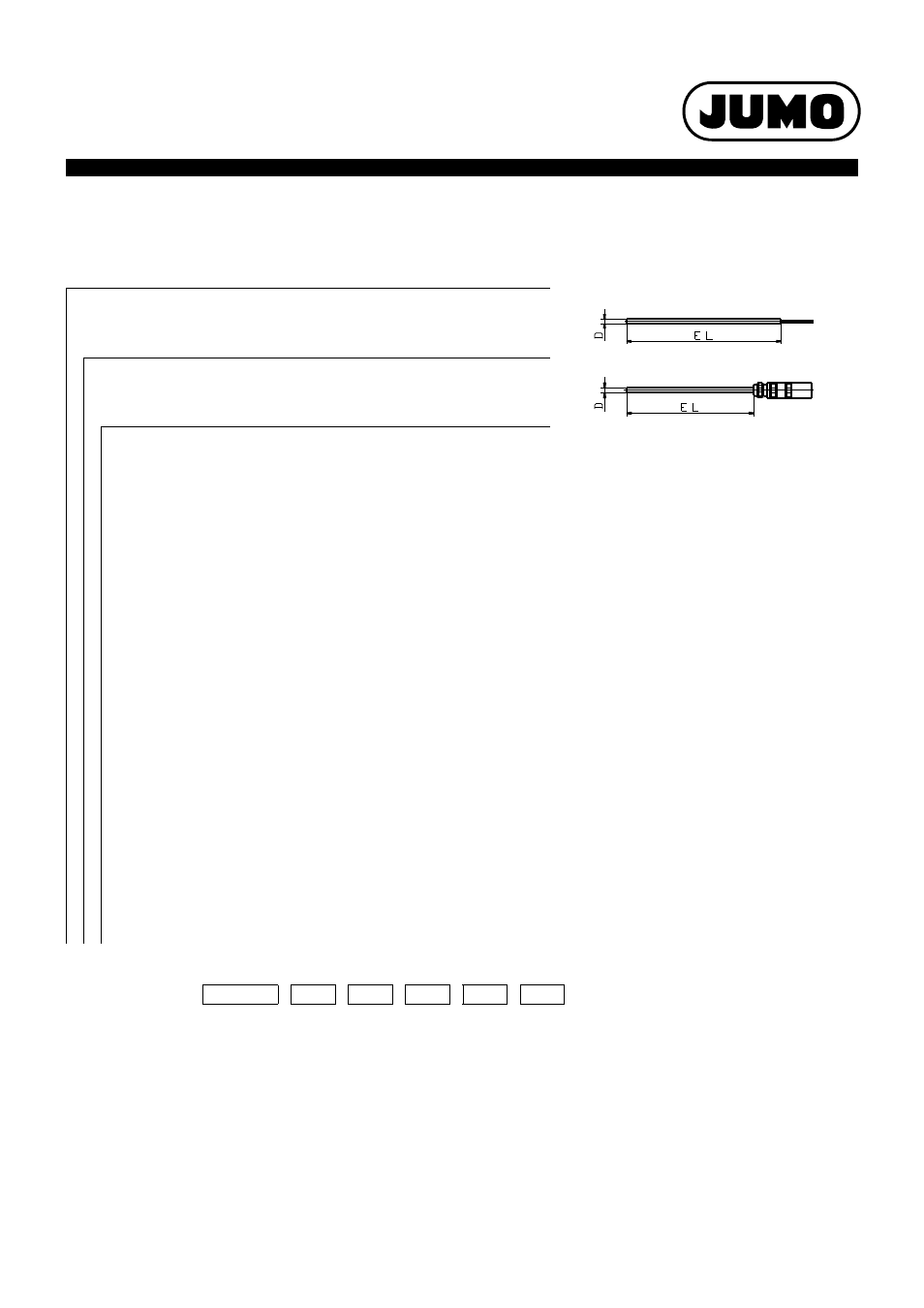

Order details:

mineral-insulated RTD temperature probe according to DIN EN 60751

(1) Basic type

902210/10

Mineral-insulated RTD temperature probes
with bare connection wires

902240/20

Mineral-insulated RTD temperature probe
with Lemosa coupling

(2) Operating temperature in °C

x x

150

-200 to +600 °C

x x

415

-50 to +600 °C (standard)

(3) Measuring insert

x x

1001

1x Pt100 in 3-wire circuit

x x

1003

1× Pt100 in 2-wire circuit

x x

1005

1× Pt1000 in 2-wire circuit (only for operating temperature -50 to +600 °C)

x x

1006

1× Pt1000 in 3-wire circuit (only for operating temperature -50 to +600 °C)

x x

1011

1x Pt100 in 4-wire circuit

x

2001

2× Pt100 in 3-wire circuit (only in connection with protection tube diameter 6 mm)

x x

2003

2× Pt100 in 2-wire circuit

(4) Tolerance class according to DIN EN 60751

x x

1

Class B (standard)

x x

2

Class A

x x

3

Class AA (1/3 DIN B)

(5) Protection tube diameter D in mm

x x

1.9

Ø 1.9 mm, for basic type 902240/20 incl. Lemosa-coupling size 0 (sheath cable Ø 1.5 mm)

x x

3

Ø 3.0 mm, for basic type 902240/20 incl. Lemosa-coupling size 0

x x

6

Ø 6.0 mm, for basic type 902240/20 incl. Lemosa-coupling size 2

(6) Insertion length EL in mm (70 to 1000 mm)

x x

100

100 mm

x x

200

200 mm

x x

300

300 mm

x x

...

Please specify in plain text (50 mm steps)

(1)

(2)

(3)

(4)

(5)

(6)

Order code

-

-

-

-

-

Order example

902240/20

-

415

-

1001

-

1

-

6

-

200
