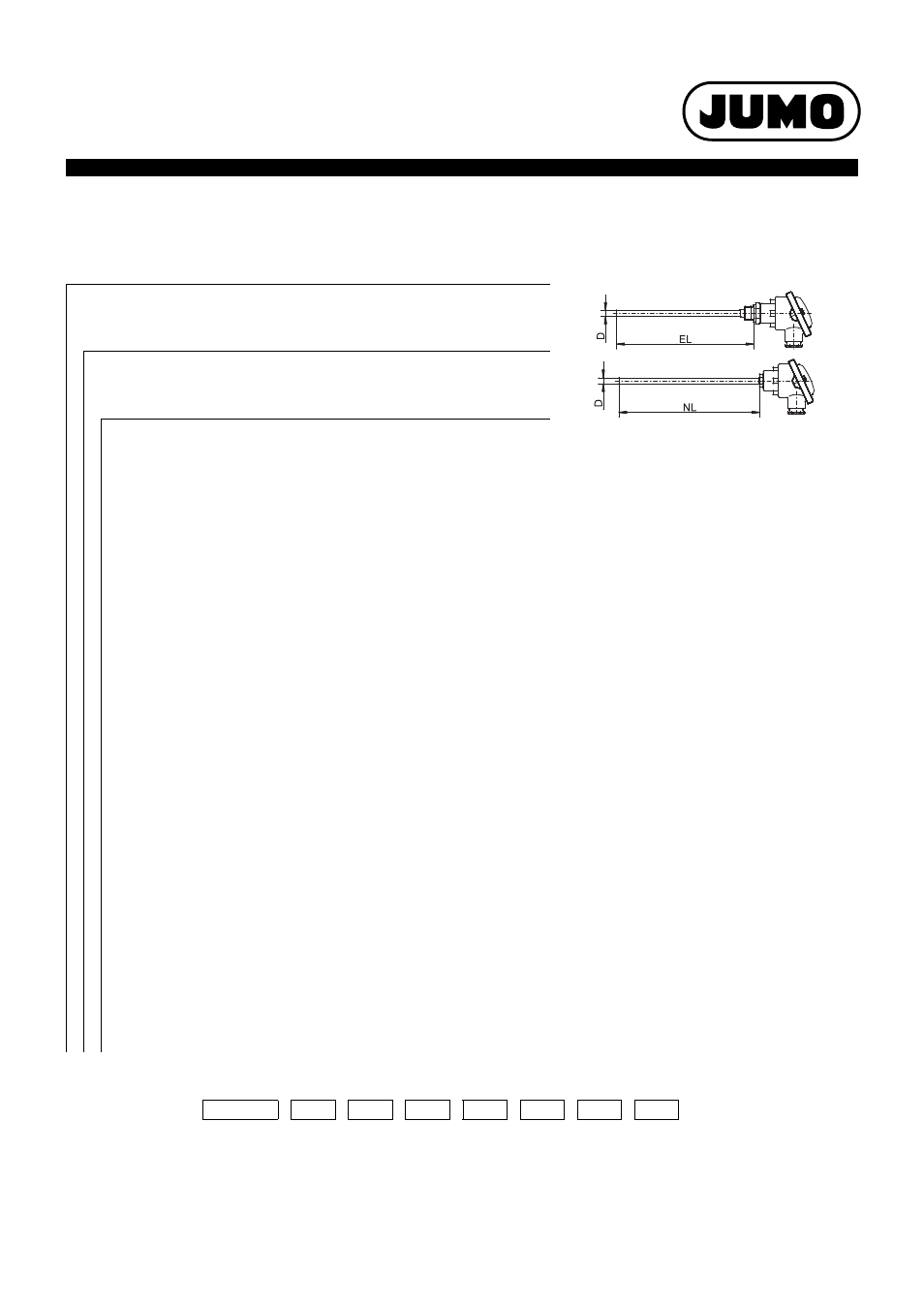

Order details:

mineral-insulated RTD temperature probe according to DIN EN 60751

(1) Basic type

902220/40

Screw-in RTD mineral-insulated RTD temperature probe
with form B terminal head

902220/41

Push-in mineral-insulated RTD temperature probe
with form B terminal head

(2) Operating temperature in °C

x x

150

-200 to +600 °C

x x

415

-50 to +600 °C (standard)

(3) Measuring insert

x x

1001

1x Pt100 in 3-wire circuit

x x

1003

1× Pt100 in 2-wire circuit (standard for transmitters extra code 330 and 333)

x x

1011

1× Pt100 in 4-wire circuit (standard for transmitters extra code 331 and 336)

x x

2003

2× Pt100 in 2-wire circuit

(4) Tolerance class according to DIN EN 60751

x x

1

Class B (standard)

x x

2

Class A

x x

3

Class AA (1/3 DIN B)

(5) Protection tube diameter D in mm

x x

3

Ø 3 mm

x x

6

Ø 6 mm

(6) Insertion length EL/NL in mm (100 to 10000 mm)

x x

100

100 mm

x x

200

200 mm

x x

300

300 mm

x x

...

Please specify in plain text (50 mm steps)

(7) Process connection

x

000

Without

x

102

Screw connection G 1/4

x

103

Screw connection G 3/8

x

104

Screw connection G 1/2

(8) Extra codes

x x

000

Without

x x

320

Terminal head form BUZ

x x

330

1× analog transmitter, 4 to 20 mA output, data sheet 707030

x x

331

1x programmable transmitter, 4 to 20 / 20 to 4 mA output, data sheet 707010

x x

333

1× analog transmitter, 0 to 10 V output, data sheet 707030

x x

336

1× programmable transmitter, 4 to 20 mA / 20 to 4 mA and HART

®

-interface output, data sheet 707010

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

Order code

-

-

-

-

-

-

/

, ...

a

a

List extra codes in sequence, separated by commas.

Order example

902220/40

-

415

-

1003

-

1

-

3

-

100

-

104

/

000
