Order specifications:
RTD temperature probes for process technology

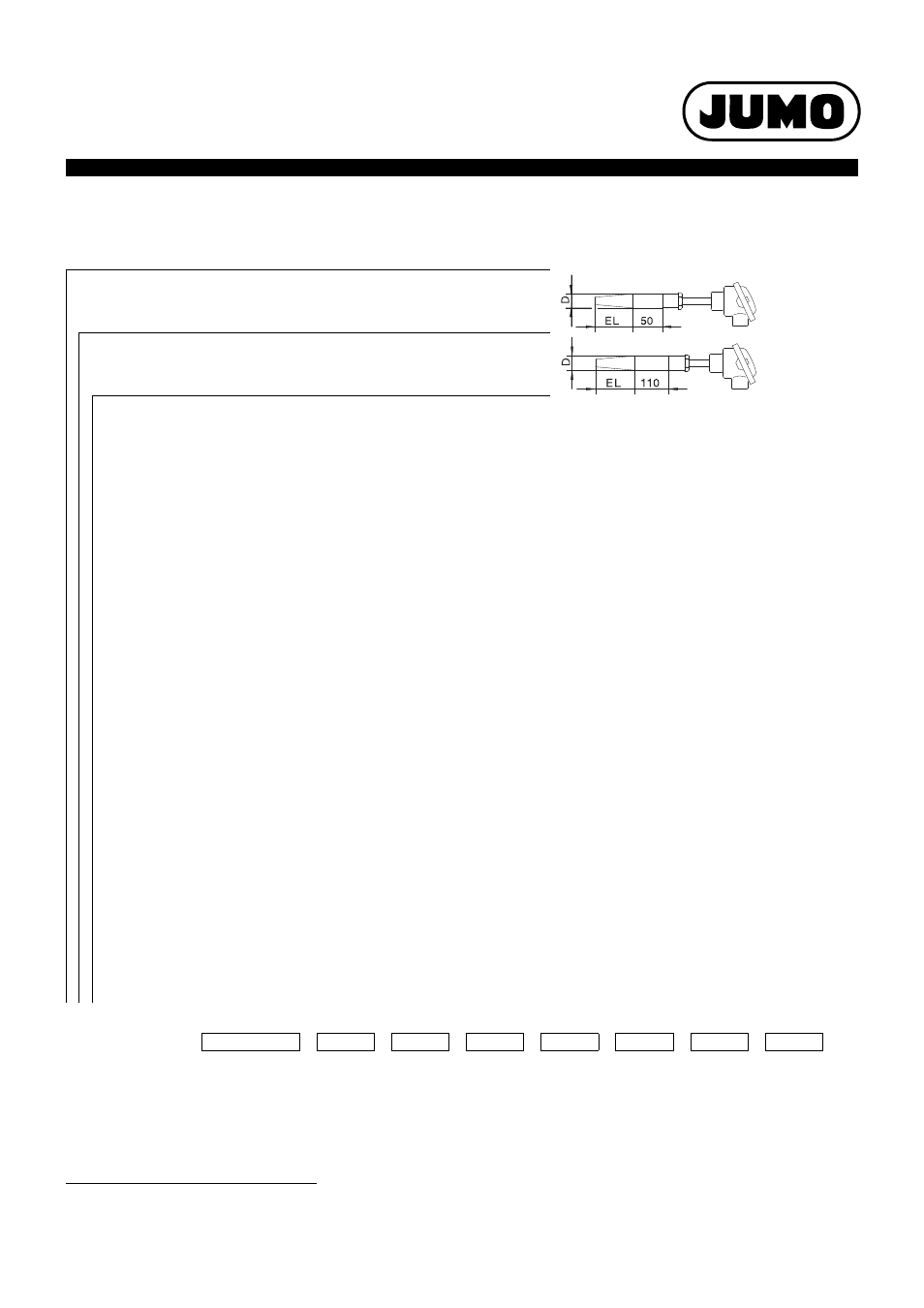

(1) Basic type
902820/50
Screw-in RTD temperature probes
with sheath DIN 43767 Form D1/D2
902820/51
Screw-in RTD temperature probes
with sheath DIN 43767 Form D4/D5
(2) Operating temperature in °C (for restrictions, see DIN 43763)
x x 150 -200 to +600 °C (wire-wound temperature sensor)
x x 402 -50 to +400 °C (thin-film temperature sensor)
x x 415 -50 to +600 °C (thin-film temperature sensor)
(3) Measuring insert
x x 1001 1x Pt100 in 3-wire-circuit
x x 1003 1x Pt100 in 2-wire circuit
x x 1011 1x Pt100 in 4-wire circuit
x x 2001 2x Pt100 in 3-wire circuit
x x 2003 2x Pt100 in 2-wire circuit
x x 2011 2x Pt100 in 4-wire circuit (only with terminal head Form BUZH)
(4) Tolerance class as per DIN EN 60751
x x 1 Class B (standard)
x x 2 Class A
x x 3 Class AA (1/3 DIN B)
(5) Pocket diameter D in mm
x x 24 Ø 24 mm stepped down to 12.5 mm
(6) Fitting length EL in mm
x x 65 65 mm for Form D1/D4
x x 125 125 mm with form D2 / D5
(7) Pocket material
x x 26 stainless steel 1.4571 (operating temperature +600 °C)
x x 36 Steel 1.7335 (operating temperature +540 °C)
x x 60 titanium, on request
x x 80 tantalum, on request
x x 81 Inconel, on request
x x 82 Hastelloy, on request
(8) Extra codes
x x 000 None
x x 320 terminal head Form BUZ
x x 321 terminal head Form BUZH
x x 324 terminal head Form BBKS
x x 330 1x analog transmitter, 4 to 20 mA output 2 , data sheet 707030 (not with extra code 362)
x x 331 1x transmitter programmable output 4 to 20 mA/20 to 4 mA 3 , data sheet 707010
x x 333 1x analog transmitter, 0 to 10 V output 2 , data sheet 707030 (not with extra code 362)
x x 336 1x programmable transmitter, 4 to 20 mA output 3 and HART ® interface, data sheet 70.7010
x x 365 acceptance test certificate 3.1 DIN EN 10204 insulation resistance
x x 367 acceptance test certificate 3.1 DIN EN 10204 pressure test
x x 368 acceptance test certificate 3.1 DIN EN 10204 leakage test
x x 374 acceptance test certificate 3.1 DIN EN 10204 material
x x 562 parts in contact with medium with PTFE covering, on request
x x 563 parts in contact with medium with HALAR coating, on request
x x 859 1x Wtrans B programmable head transducer with radio transmission, data sheet 707060
(1) (2) (3) (4) (5) (6) (7) (8)
Order code - - - - - - / ,... 1
Order example 902820/50 - 402 - 1001 - 1 - 24 - 125 - 26 / 000
1 List extra codes in sequence, separated by commas.
2 Specify measuring range in plain text.
3 Specify measuring range and output signal in plain text.
