Order specifications – JUMO 902820 PROCESStemp RTD Temperature Probe for Process Technology (Also with ATEX Approval) Data Sheet User Manual
Page 5
2014-03-06/00386333
Data sheet 902820
Page 5/15
JUMO GmbH & Co. KG
Delivery address:Mackenrodtstraße 14,
36039 Fulda, Germany
Postal address: 36035 Fulda, Germany
Phone:
+49 661 6003-0
Fax:
+49 661 6003-607
e-mail:
Internet:
www.jumo.net
JUMO Instrument Co. Ltd.
JUMO House
Temple Bank, Riverway
Harlow, Essex CM20 2DY, UK
Phone: +44 1279 635533
Fax:
+44 1279 635262
e-mail:
Internet: www.jumo.co.uk
JUMO Process Control, Inc.
8 Technology Boulevard
Canastota, NY 13032, USA
Phone:
315-697-JUMO
1-800-554-JUMO
Fax:
315-697-5867
e-mail:
Internet: www.jumo.us
Order specifications:
RTD temperature probes for process technology
(1) Basic type
902820/10
Screw-in RTD temperature probes
with continuous sheath
(2) Operating temperature in °C
x
150
-200 to +600 °C (wire-wound temperature sensor)
x
402
-50 to +400 °C (thin-film temperature sensor)
x
415
-50 to +600 °C (thin-film temperature sensor)
(3) Measuring insert
x
1001
1x Pt100 in 3-wire-circuit
x
1003
1x Pt100 in 2-wire circuit
x
1011
1x Pt100 in 4-wire circuit
x
2001
2x Pt100 in 3-wire circuit
x
2003
2x Pt100 in 2-wire circuit
x
2011
2x Pt100 in 4-wire circuit (only with terminal head Form BUZH)
(4) Tolerance class as per DIN EN 60751
x
1
Class B (standard)
x
2
Class A
x
3
Class AA (1/3 DIN B)

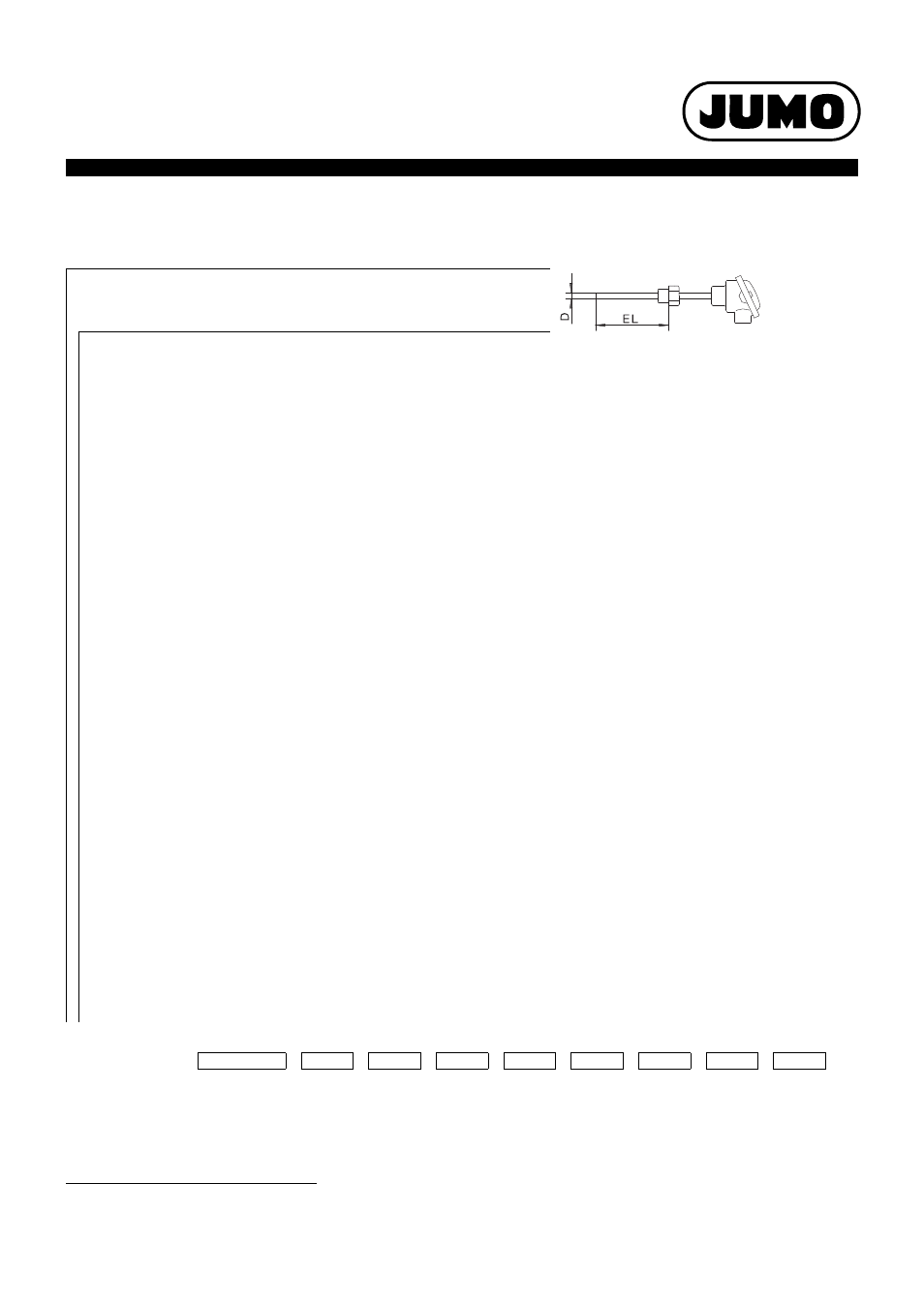

(5) Sheath diameter D in mm
x
9
Ø 9 x 1 mm
x
11
Ø 11 x 2 mm
(6) Fitting length EL in mm (100 to 1000)
x
160
160 mm
x
250
250 mm
x
400
400 mm
x
...
Specification in plain text (50 mm steps)
(7) Process connection
x
104
Screw-connection G 1/2
x
106
Screw connection G 1
x
144
Screw connection (thread) 1/2-14NPT
x
146
Screw connection (thread) 1-11.5NPT
(8) Sheathmaterial
x
26
stainless steel 1.4571
x
60
titanium, on request
x
81
Inconel, on request
x
82
Hastelloy, on request
(9) Extra codes
x
000
None
x
320
terminal head Form BUZ
x
321
terminal head Form BUZH
x
324
terminal head Form BBKS
x
330
1x analog transmitter, 4 to 20 mA output
2
, data sheet 707030 (not with extra code 362)
x
331
1x transmitter programmable output 4 to 20 mA/20 to 4 mA
3
, data sheet 707010
x
333
1x analog transmitter, 0 to 10 V output
2
, data sheet 707030 (not with extra code 362)
x
336
1x programmable transmitter, 4 to 20 mA output
3
and HART
®
interface, data sheet 707010
x
365
acceptance test certificate 3.1 DIN EN 10204 insulation resistance
x
367
acceptance test certificate 3.1 DIN EN 10204 pressure test
x
368
acceptance test certificate 3.1 DIN EN 10204 leakage test
x
374
acceptance test certificate 3.1 DIN EN 10204 material
x
562
parts in contact with medium with PTFE covering, on request
x
563
parts in contact with medium with HALAR coating, on request
x
859
1x Wtrans B programmable head transducer with radio transmission, data sheet 707060
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
Order code
-
-
-
-
-
-
-
/
,...
1
Order example
902820/10
-
402
-
1001
-
1
-
9
-
250
-
104
-
26
/
000
1
List extra codes in sequence, separated by commas.
2
Specify measuring range in plain text.
3
Specify measuring range and output signal in plain text.
