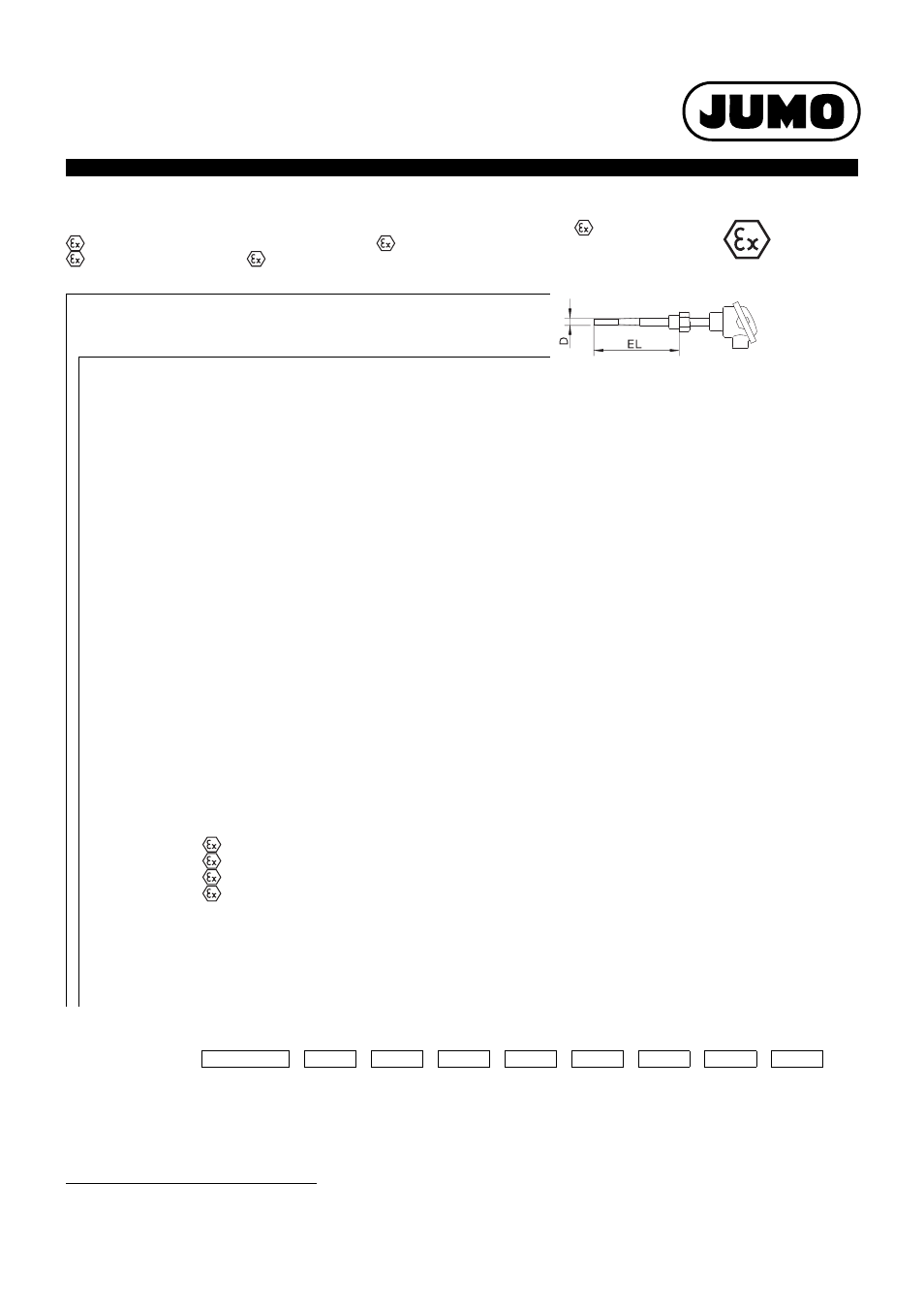

Order specifications:
RTD temperature probes for process technology with (ATEX) approval
II 1/2 G Ex ia IIC T1 to T6 (or Ex ib IIC T1 to T6) 4 II 1/2 D Ex iaD 20/21 T80°C to T400 °C (or ...ib...) 4
II 1/2 G Ex d IIC T1 to T6 4 II 1/2 D Ex tb A20/21 IP66 T80 °C to T400 °C 4
(1) Basic type
902820/11
Screw-in RTD temperature probes
with stepped sheath
(2) Operating temperature in °C
x 150 -200 to +600 °C (wire-wound temperature sensor)
x 415 -50 to +600 °C (thin-film temperature sensor)
(3) Measuring insert
x 1001 1x Pt100 in 3-wire circuit (not in conjunction with transmitter 331, 336)
x 1003 1x Pt100 in 2-wire circuit (not in conjunction with transmitter 331, 336)
x 1011 1x Pt100 in 4-wire circuit
x 2001 2x Pt100 in 3-wire circuit
x 2003 2x Pt100 in 2-wire circuit (not in conjunction with transmitter 331, 336)
(4) Tolerance class as per DIN EN 60751
x 1 Class B (standard)
x 2 Class A
x 3 Class AA (1/3 DIN B)
(5) Sheath diameter D in mm
x 12 Ø 12x2.5 mm, stepped down to 9 mm (for use in zone 0 or 20, on request)
(6) Fitting length EL in mm (100 to 700)
x 160 160 mm
x 220 220 mm
x 250 250 mm
x 280 280 mm
x 400 400 mm
x ... Specification in plain text (50 mm steps)
(7) Process connection
x 104 Screw-connection G 1/2
x 106 Screw connection G 1
x 144 Screw connection (thread) 1/2-14NPT
x 146 Screw connection (thread) 1-11.5NPT
(8) Sheathmaterial
x 26 stainless steel 1.4571
(9) Extra codes
Caution: for application in zones 20, 21 and 22, only a terminal head with a min. protection rating of IP65 is possible.
x 320 terminal head Form BUZ
x 321 terminal head Form BUZH
x 397 Terminal head Form BEGF
x 331 1x programmable transmitter, output 4 to 20 mA/20 to 4mA 3 , data sheet 707010
x 336 1x programmable transmitter, 4 to 20 mA output 3 and HART ® interface, data sheet 707010
x 362 Ex protection i per EC directive 94/9/EC (ATEX) 4
x 399 Ex protection d flameproof enclosure, terminal head Form XD-AD (ATEX)
Cable gland for cable dia. 3.0 to 8.0 mm (for cable dia. 7.5 to 11.9 mm on request)
only possible in conjunction with 362.
x 365 acceptance test certificate 3.1 DIN EN 10204 insulation resistance
x 367 acceptance test certificate 3.1 DIN EN 10204 pressure test
x 368 acceptance test certificate 3.1 DIN EN 10204 leakage test
x 374 acceptance test certificate 3.1 DIN EN 10204 material
x 562 parts in contact with medium with PTFE covering, on request
x 563 parts in contact with medium with HALAR coating, on request
Additional details: In which zone is the RTD temperature probe used?
(1) (2) (3) (4) (5) (6) (7) (8) (9)
Order code - - - - - - - / 362 ,... 1
Order example 902820/11 - 415 - 1001 - 1 - 12 - 250 - 104 - 26 / 362
Note: Due to the complexity of the possible versions, not all variations can be illustrated.
We must draw your attention to the fact that certain combinations cannot be supplied for all ATEX categories.
1 List extra codes in sequence, separated by commas.
3 Specify measuring range and output signal in plain text.
4 The precise Ex protection identification is listed on the rating plate and in Operating Manual B 90.2820.0.
