2012-03-02/00473251
Data sheet 902930
Page 22/25
JUMO GmbH & Co. KG
Delivery address: Mackenrodtstraße 14
36039 Fulda, Germany
Postal address:
36035 Fulda, Germany
Phone:
+49 661 6003-0
Fax:
+49 661 6003-607
E-mail:
Internet:
www.jumo.net
JUMO Instrument Co. Ltd.
JUMO House
Temple Bank, Riverway
Harlow, Essex CM20 2DY, UK
Phone: +44 1279 635533
Fax:
+44 1279 635262
E-mail:
Internet: www.jumo.co.uk
JUMO Process Control, Inc.
8 Technology Boulevard
Canastota, NY 13032, USA
Phone: 315-697-5866
1-800-554-JUMO
Fax:
315-697-5867
E-mail:
Internet: www.jumo.us
Note:
For orders, please specify the PTFE connection cable length (AL) in plain text!
Only use basic type 902930/55 with the corresponding JUMO RTD temperature probes with PTFE connection cable.
The design of the JUMO RTD temperature probes is to be agreed upon in the order!

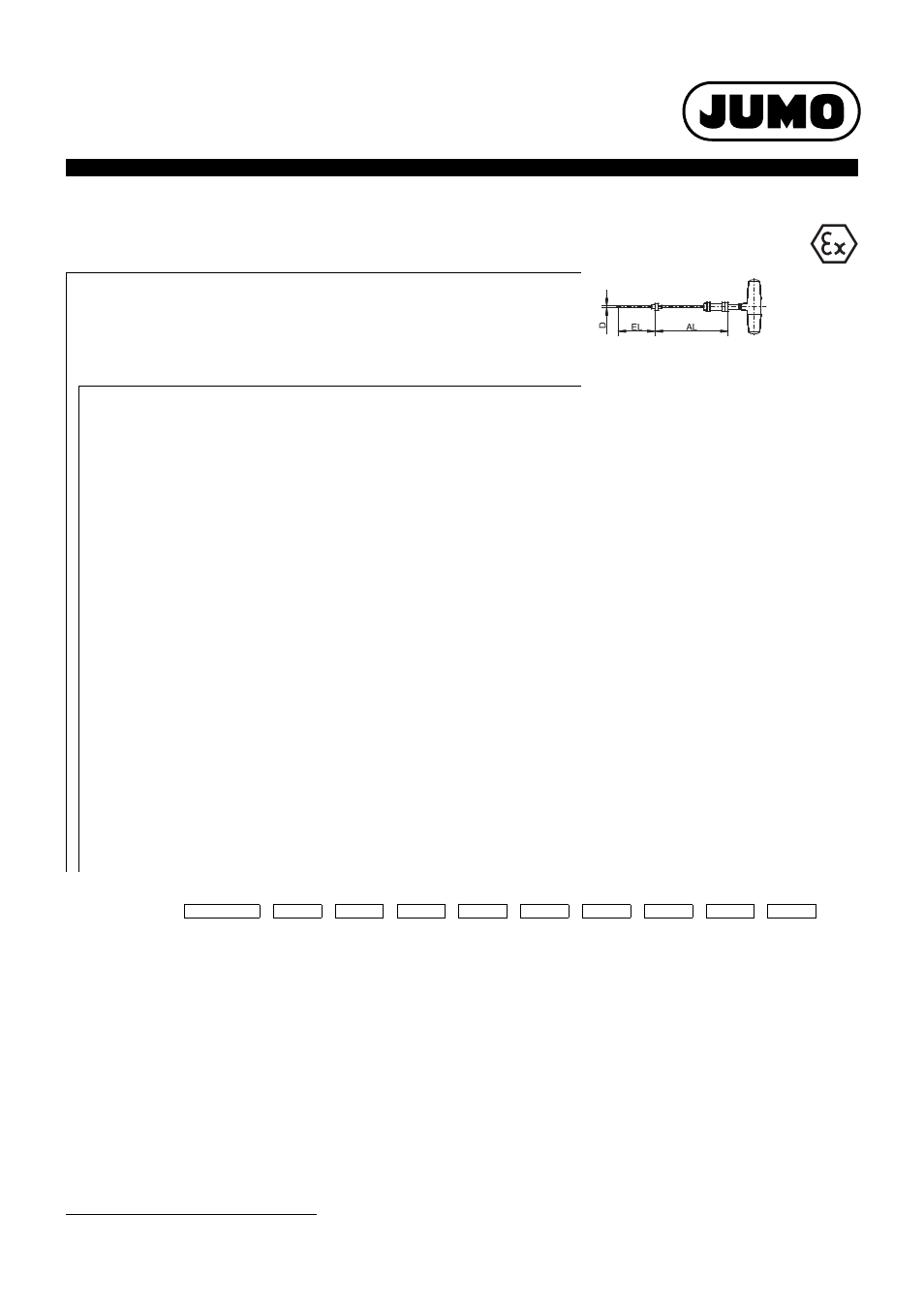

Order details:
JUMO Wtrans transmitter T03.G2 Ex with M12 × 1 plug connection
(1) Basic type
902930/55
Wtrans transmitter T03.G2 Ex
with M12 x 1 plug connection
and RTD temperature probe with PTFE connection cable
and ATEX approval
Intrinsically safe device according to EC directive 94/9/EC (ATEX)
(Ambient temperature, case: -30 to +85 °C)
Please specify the requirement for zone separation in plain text!
(2) Operating temperature in °C (protection fitting)
x
596
-30 to +260 °C
(3) Measuring input
x
1006
1x Pt1000 in 3-wire circuit
(4) Tolerance class according to DIN EN 60751
x
2
Class A
(5) Protection tube diameter D in mm
x
4
Ø 4 mm
x
6
Ø 6 mm (zone separation possible)
x
9
Ø 9 mm (zone separation possible)
(6) Insertion length EL in mm (EL 100 to 1000 mm)
x
100
100 mm
x
150
150 mm
x
200
200 mm
x
. . .
For orders, specify in plain text (stepped down by 50 mm)
(7) Insertion tip
x
1
Flat
(8) Radio frequency
x
10
868.4 MHz (Europe)
(9) Process connection
x
000
None
x
103
Screw connection G 3/8 (zone separation possible)
x
104
Screw connection G 1/2 (zone separation possible)
x
252
Pipe screw connection G 1/4 (for protection tube diameter 6 mm only)
x
253
Pipe screw connection G 3/8 (for protection tube diameter 6 mm only)
x
254
Pipe screw connection G 1/2 (for protection tube diameter 6 mm only)
x
255
Pipe screw connection G 3/4 (for protection tube diameter 6 mm only)
x
263
Pipe screw connection M10 x 1 (for protection tube diameter 6 mm only)
x
291
Pipe screw connection 1/2-14NPT (for protection tube diameter 6 mm only)
x
662
Sheet steel flange (for protection tube diameter 6 mm only)
(10) Extra codes
x
362
Ex protection Ex i according to EC directive 94/9/EC (ATEX)
x
778
Customer-specific transmission interval 5 s, 10 s, or 45 s, for orders,
specification in plain text (factory-set to 20 s)
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
Order code
-
-
-
-
-
-
-
-
/
362
, ...
1
Order example
902930/55
-
596
-
1006
-
2
-
6
-
150
-
1
-
10
-
000
/
362
1
List extra codes in sequence, separated by commas.
