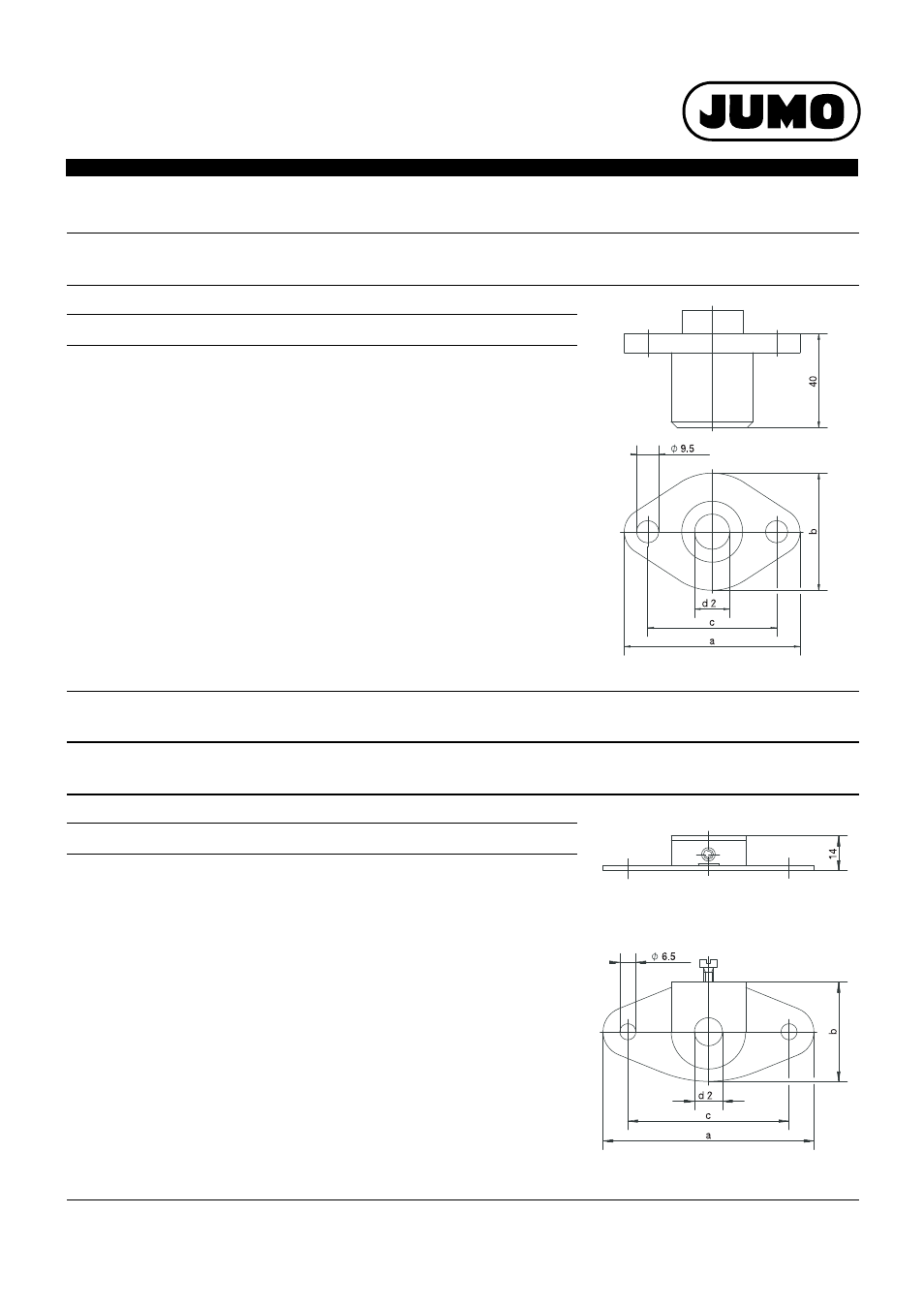

Backing flanges
for stop flanges according to DIN 43734
● available from stock
Item 5
Plate flanges
● available from stock
Item 6
For sheath
dia. in mm
Dimensions in mm
a
b
c
d2
Part No.
Backing flanges in cast iron
15
75
50
55
15
00058371
●
22
90
65
70
22
00058372
●
32
90
65
70
32
00058373
●
For sheath
dia. in mm
Dimensions in mm
a
b
c
d2
Part No.
Plate flanges in galvanized steel
6
85
40
65
6.3
00065062
●
8
85
40
65
8.3
00068165
●
10
85
40
65
10.3
00084190
●
11
85
40
65
11.3
00038513
●
