Data Sheet 909750 (909725)
Page 2/7
2011-09-13/00314553
Pipe fittings
● available from stock
Item 2
For sheath
dia. in mm

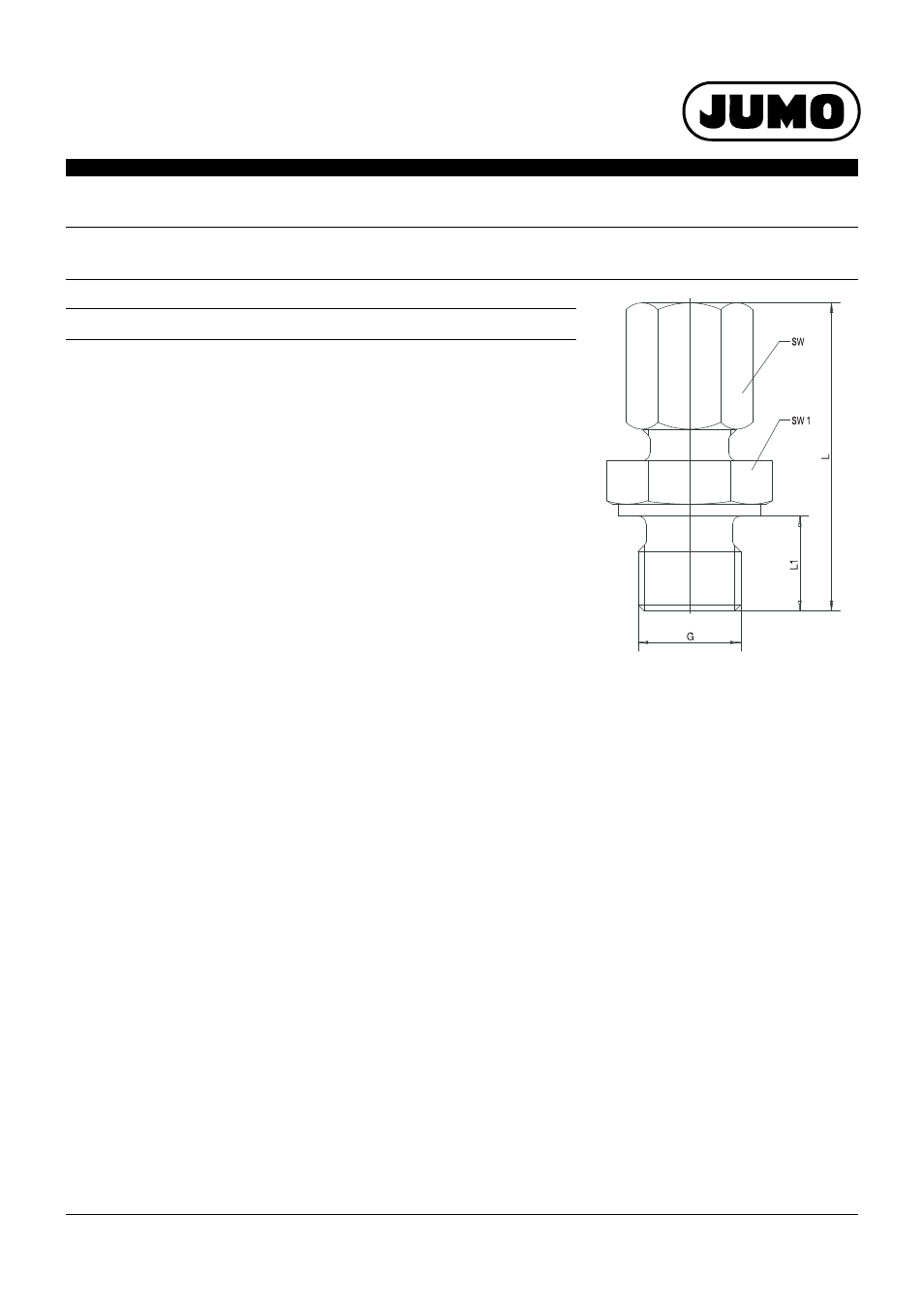

Thread G
Wrench size
SW SW1 in mm
Length
L L1 in mm
Part No.
Pipe fittings in steel
with PTFE clamping ring for temperatures up to 260 °C
1.0
M 8 x 1
10
12
29
8
00049700
●
1.5
M 8 x 1
10
12
29
8
00049701
●
2.0
M 8 x 1
12
12
25
8
00049702
●
3.0
M 8 x 1
12
12
25
8
00049703
●
4.5
M 8 x 1
10
12
29
8
00049704
●
6.0
1/4"
14
19
39
12
00049705
●
Pipe fittings in stainless steel X 6 CrNiMoTi 17 12 2, Material Ref. 1.4571
with PTFE clamping ring for temperatures up to 260 °C
1.0
M 8 x 1
8
14
24
8
00049706
●
1.5
M 8 x 1
10
12
29
8
00049707
●
2.0
M 8 x 1
8
12
25
8
00049708
●
3.0
M 8 x 1
10
12
28
8
00049709
●
4.5
M 8 x 1
10
12
29
8
00049710
●
6.0
1/4"
19
14
41
12
00049711
●
Pipe fittings in stainless steel X 6 CrNiMoTi 17 12 2, Material Ref. 1.4571
with st. steel clamping ring for temperatures up to 600 °C
1.5
M 8 x 1
8
12
23.5
8
00080809
●
3.0
M 8 x 1
10
14
27
8
00080810
●
6.0
M 10 x 1
14
14
34
8
00065416
●
6.0
1/4"
14
19
40
12
00080811
●
6.0
1/2"
14
27
44
14
00305445
●
12.0
1/2"
22
27
46
14
00312448
●
15.0
1/2"
27
27
42
14
00048311
●
Pipe fittings in steel
with steel clamping ring for temperatures up to 500 °C
6.0
3/8"
14
22
40
10
00057945
●
6.0
1/2"
12
27
40
12
00340227
●
