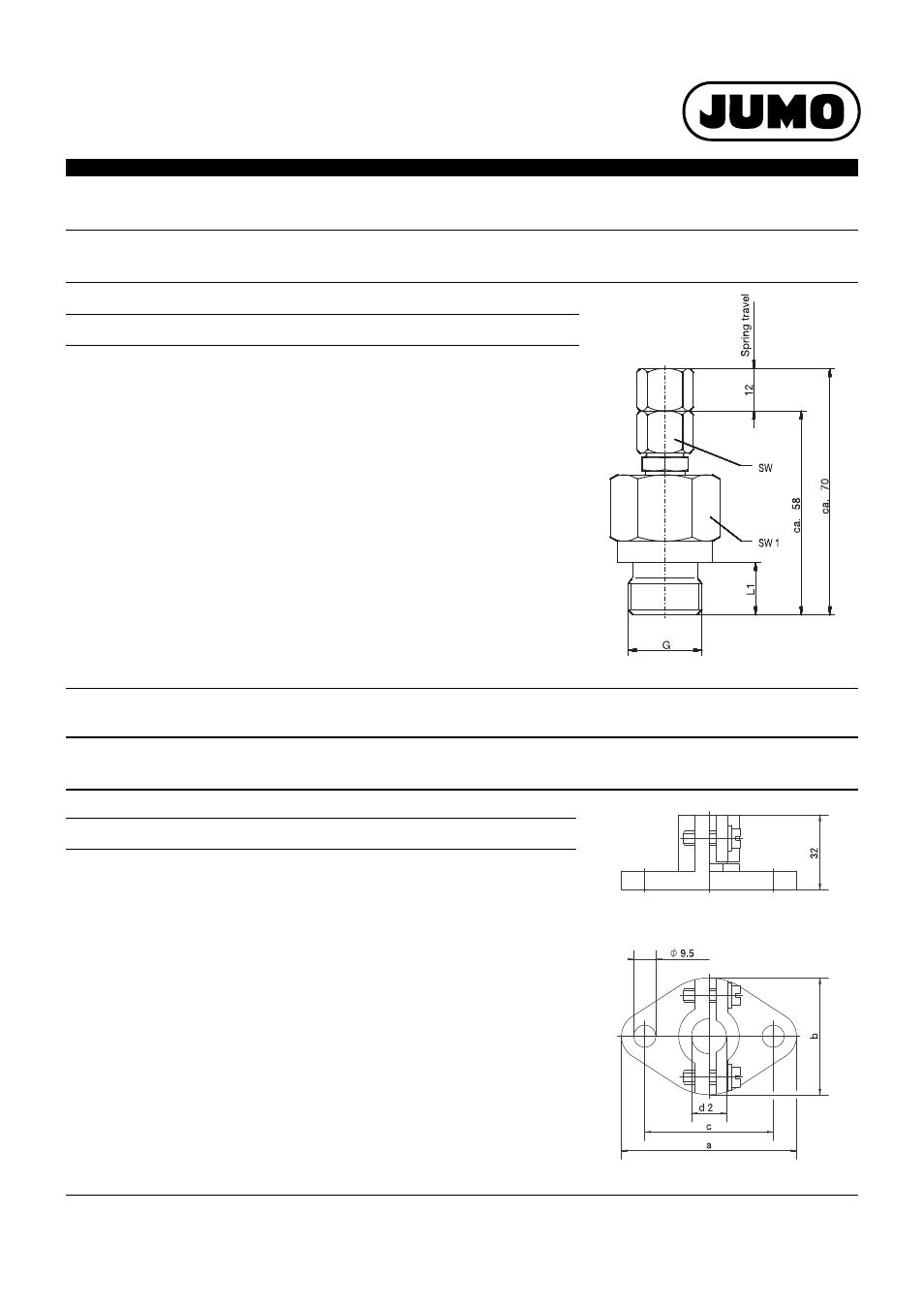

Pipe fittings, spring-loaded
● available from stock Item 3
Stop flanges according to DIN 43734
● available from stock Item 4
For sheath
dia. in mm Thread G Wrench size Length Part No.
inch SW SW1 mm L L1 in mm
Pipe fittings in stainless steel X8CrNiS18-9, Mat. Ref. 1.4305
with stainless steel clamping ring for temperatures up to 180 °C
8.0 1/2" 14 27 58 14 00462809 ●
For sheath
dia. in mm Dimensions in mm
a
b c d2
Part No.
Stop flanges in cast iron
15 75 50 55 16 00005784 ●
22 90 65 70 23 00005785 ●
32 90 65 70 33 00014955 ●
