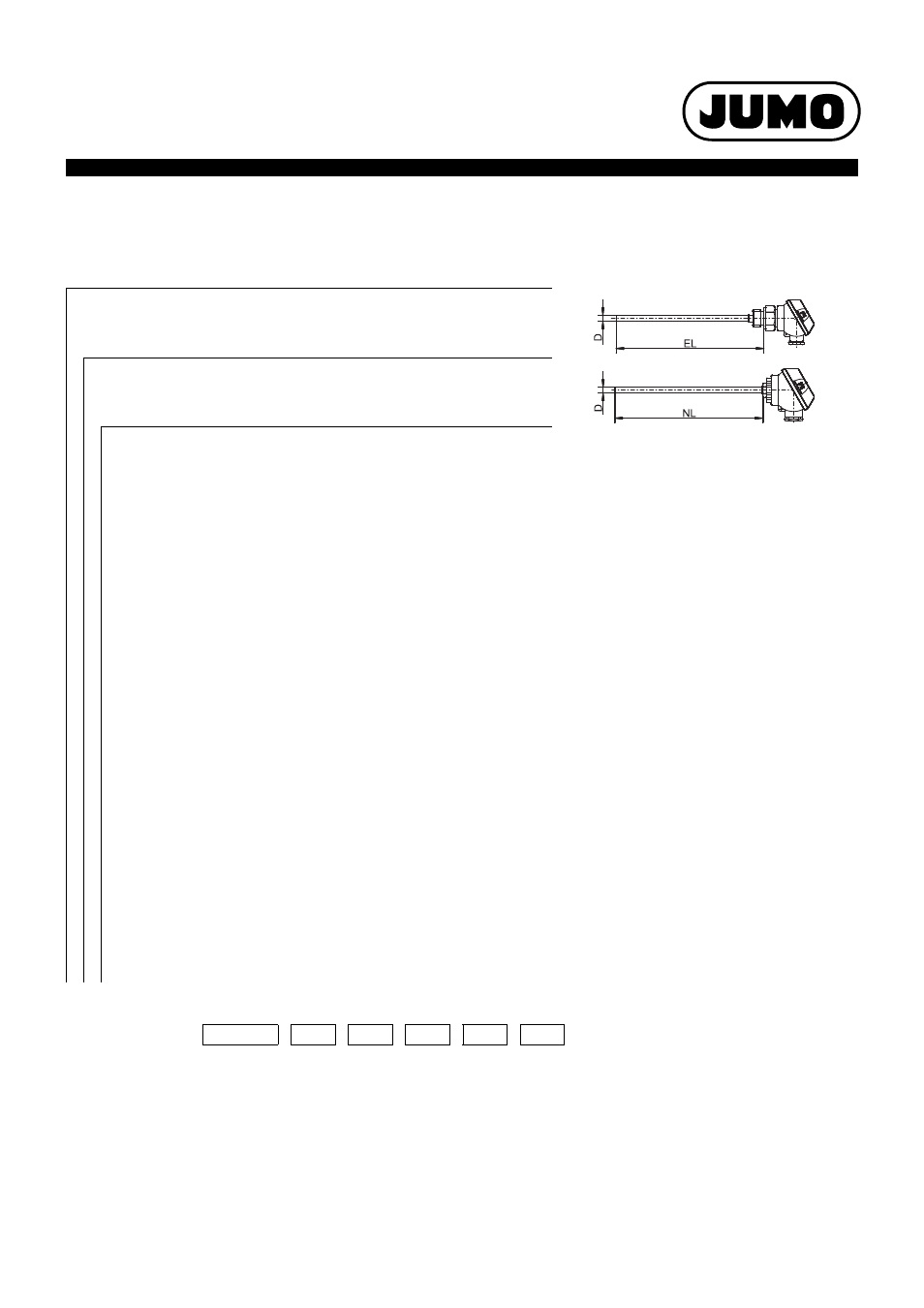

Order details:
Mineral-insulated thermocouples according to DIN 43710 and DIN EN 60584
(1) Basic type
901230/40
Screw-in mineral-insulated thermocouple
with terminal head, form J
901230/41
Push-in mineral-insulated thermocouple
with terminal head, form J
(2) Measuring insert / operating temperature in °C
x x 1040 1× Fe-CuNi "J", operating temperature -200 to +800 °C, sheath material no. 1.4541
x x 1042 1× Fe-CuNi "L", operating temperature -200 to +800 °C, sheath material no. 1.4541
x x 1043 1× NiCr-Ni "K", operating temperature -200 to +1200 °C, sheath material no. 2.4816
x x 1048 1× NiCrSi-NiSi "N", operating temperature -200 to +1200 °C, sheath material no. 2.4816
x x 2042 2× Fe-CuNi "L", operating temperature -200 to +800 °C, sheath material no. 1.4541
x x 2043 2× NiCr-Ni "K", operating temperature -200 to +1200 °C, sheath material no. 2.4816
x x 2048 2× NiCrSi-NiSi "N", operating temperature -200 to +1200 °C, sheath material no. 2.4816
(3) Protection tube diameter D in mm
x x 3 Ø 3 mm
x x 4.5 Ø 4.5 mm (not for measuring insert type "N")
x x 6 Ø 6 mm
(4) Insertion length EL/NL in mm (50 to 50000 mm)
x x 100 100 mm
x x 200 200 mm
x x 300 300 mm
x x 400 400 mm
x x 500 500 mm
x x ... Please specify in plain text (50 mm steps)
(5) Process connection
x 000 Without
x 103 Screw connection G 3/8
x 104 Screw connection G 1/2
(6) Extra codes
x x 000 Without
x x 309 Uninsulated construction (element welded to the base)
(1) (2) (3) (4) (5) (6)
Order code - - - - /
Order example 901230/40 - 1040 - 3 - 100 - 104 / 000
