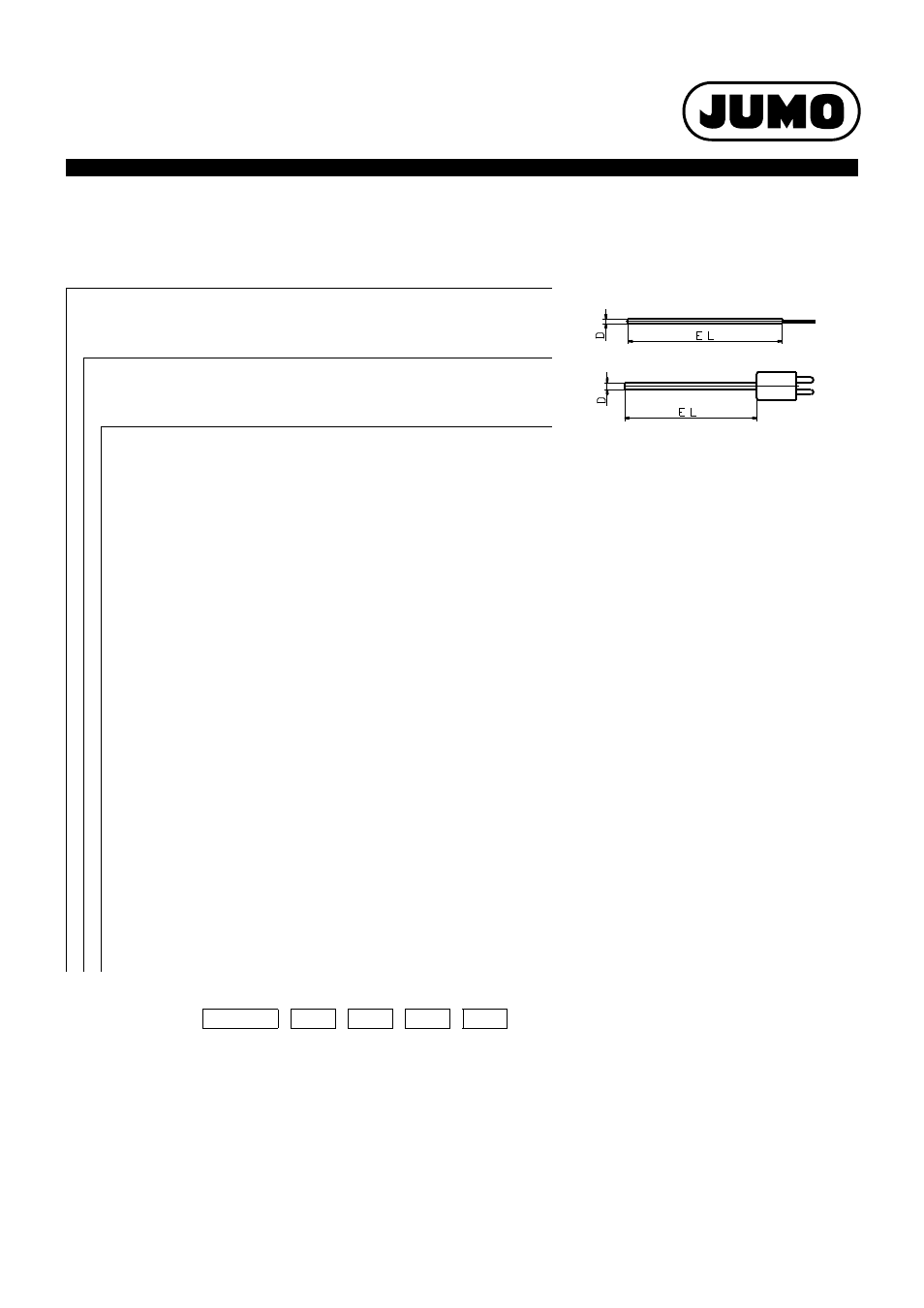

Order details:
Mineral-insulated thermocouples according to DIN 43710 and DIN EN 60584
(1) Basic type
901210/10
Mineral-insulated thermocouples
with bare connection wires
901240/20
Mineral-insulated thermocouple
with thermal-voltage-free standard tab-connector
(2) Measuring insert / operating temperature in °C
x x 1040 1× Fe-CuNi "J", operating temperature -200 to +800 °C, sheath material no. 1.4541
x x 1042 1× Fe-CuNi "L", operating temperature -200 to +800 °C, sheath material no. 1.4541
x x 1043 1× NiCr-Ni "K", operating temperature -200 to +1200 °C, sheath material no. 2.4816
x 1048 1× NiCrSi-NiSi "N", operating temperature -200 to +1200 °C, sheath material no. 2.4816, D = 3 and 6 mm
x 2042 2× Fe-CuNi "L", operating temperature -200 to +800 °C, sheath material no. 1.4541
x 2043 2× NiCr-Ni "K", operating temperature -200 to +1200 °C, sheath material no. 2.4816
x 2048 2× NiCrSi-NiSi "N", operating temperature -200 to +1200 °C, sheath material 2.4816, D = 3 and 6 mm
(3) Protection tube diameter D in mm
x 0.5 Ø 0.5 mm, only in connection with measuring insert 1× NiCr-Ni "K"
x x 1 Ø 1 mm
x x 1.5 Ø 1.5 mm
x x 2 Ø 2 mm
x x 3 Ø 3 mm
x x 4.5 Ø 4.5 mm
x x 6 Ø 6 mm
(4) Insertion length EL in mm (50 to 50000 mm)
x x 100 100 mm
x x 200 200 mm
x x 300 300 mm
x x 400 400 mm
x x 500 500 mm
x x ... Please specify in plain text (50 mm steps)
(5) Extra codes
x x 000 Without
x x 309 Uninsulated construction (element welded to the base)
(1) (2) (3) (4) (5)
Order code - - - /
Order example 901210/10 - 1042 - 3 - 200 / 000
