Data Sheet 901006
Page 7/11

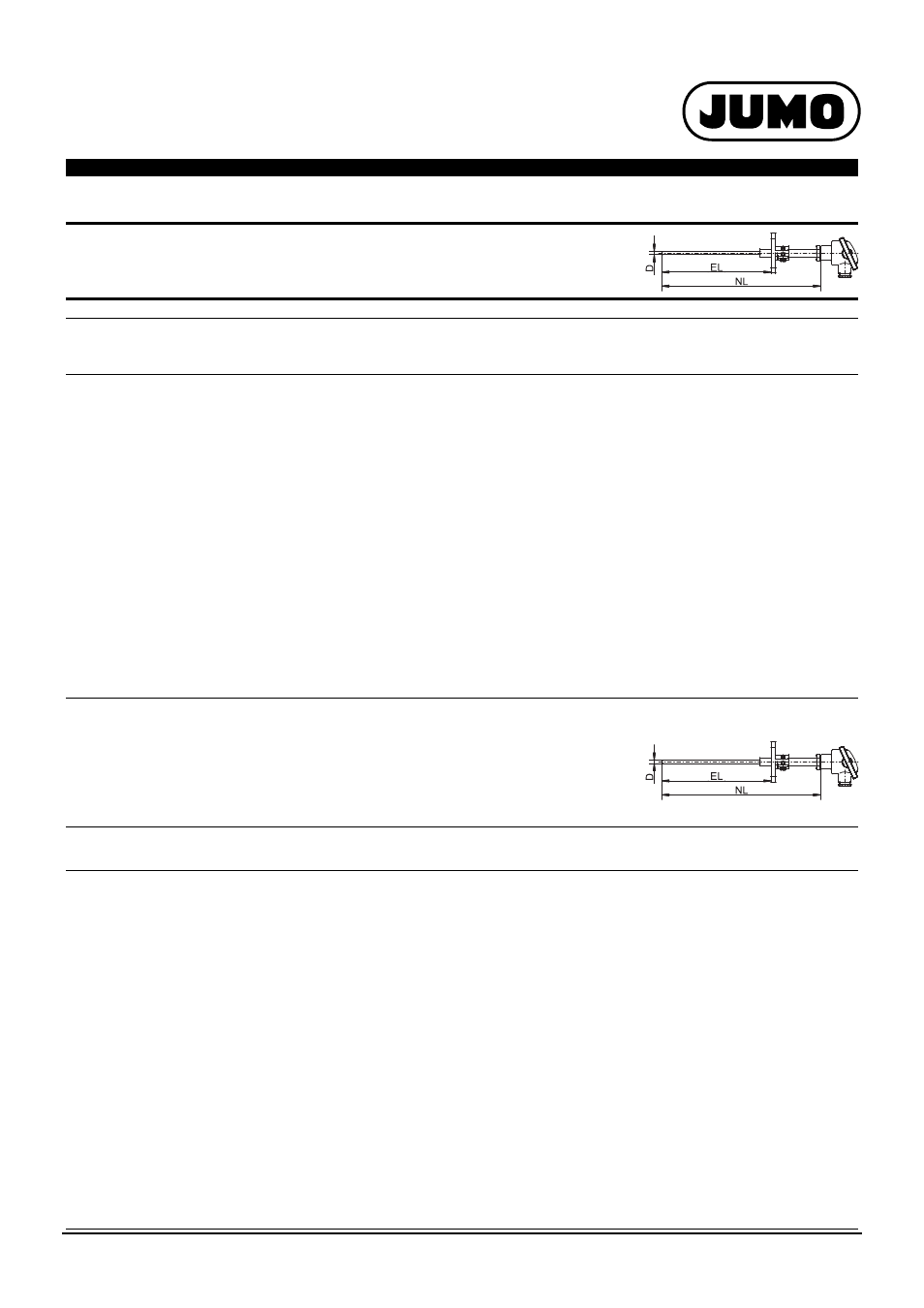

Push-in thermocouple
with displaceable stop flange
and terminal head according to DIN 43729, form B 15
Insertion
length
EL in mm
Nominal
length
NL in mm
Diameter
D in mm
Temperature
range in °C
Type
up to February
28, 2013
1 couple
Type
up to February
28, 2013
2 couples
Type
as of March 01, 2013
Order code
Ceramic protection tube KER 710
Thermocouple Pt10Rh-Pt "S"
170 to 215
250
6
0 to 1300
90.021
-
901006/66-880-1044-6-250-668/000
275 to 320
355
6
0 to 1300
90.022
-
901006/66-880-1044-6-355-668/000
420 to 465
500
6
0 to 1300
90.023
-
901006/66-880-1044-6-500-668/000
170 to 215
250
6
0 to 1300
-
90 D 021
901006/66-880-2044-6-250-668/000
275 to 320
355
6
0 to 1300
-
90 D 022
901006/66-880-2044-6-355-668/000
420 to 465
500
6
0 to 1300
-
90 D 023
901006/66-880-2044-6-500-668/000
Thermocouple Pt30Rh-Pt6Rh "B"
170 to 215
250
6
600 to 1500
90.027
-
901006/66-953-1046-6-250-668/000
275 to 320
355
6
600 to 1500
90.028
-
901006/66-953-1046-6-355-668/000
420 to 465
500
6
600 to 1500
90.029
-
901006/66-953-1046-6-500-668/000
170 to 215
250
6
600 to 1500
-
90 D 027
901006/66-953-2046-6-250-668/000
275 to 320
355
6
600 to 1500
-
90 D 028
901006/66-953-2046-6-355-668/000
420 to 465
500
6
600 to 1500
-
90 D 029
901006/66-953-2046-6-500-668/000
Operating medium: air
Pos. 5
Versions only for connecting a
JUMO safetyM STB/STW Ex type 701155
Insertion
length
EL in mm
Nominal
length
NL in mm
Diameter
D in mm
Temperature
range in °C
1 couple
2 couples
Type
Order code
Ceramic protection tube KER 710
Thermocouple Pt10Rh-Pt "S"
170 to 215
250
6
0 to 1300
x
-
901006/66-880-1044-6-250-668/922
275 to 320
355
6
0 to 1300
x
-
901006/66-880-1044-6-355-668/922
420 to 465
500
6
0 to 1300
x
-
901006/66-880-1044-6-500-668/922
170 to 215
250
6
0 to 1300
-
x
901006/66-880-2044-6-250-668/922
275 to 320
355
6
0 to 1300
-
x
901006/66-880-2044-6-355-668/922
420 to 465
500
6
0 to 1300
-
x
901006/66-880-2044-6-500-668/922
Thermocouple Pt30Rh-Pt6Rh "B"
170 to 215
250
6
600 to 1500
x
-
901006/66-953-1046-6-250-668/922
275 to 320
355
6
600 to 1500
x
-
901006/66-953-1046-6-355-668/922
420 to 465
500
6
600 to 1500
x
-
901006/66-953-1046-6-500-668/922
170 to 215
250
6
600 to 1500
-
x
901006/66-953-2046-6-250-668/922
275 to 320
355
6
600 to 1500
-
x
901006/66-953-2046-6-355-668/922
420 to 465
500
6
600 to 1500
-
x
901006/66-953-2046-6-500-668/922
Operating medium: air
Pos. 5
