2013-02-25/00073486
Data Sheet 901006
Page 3/11

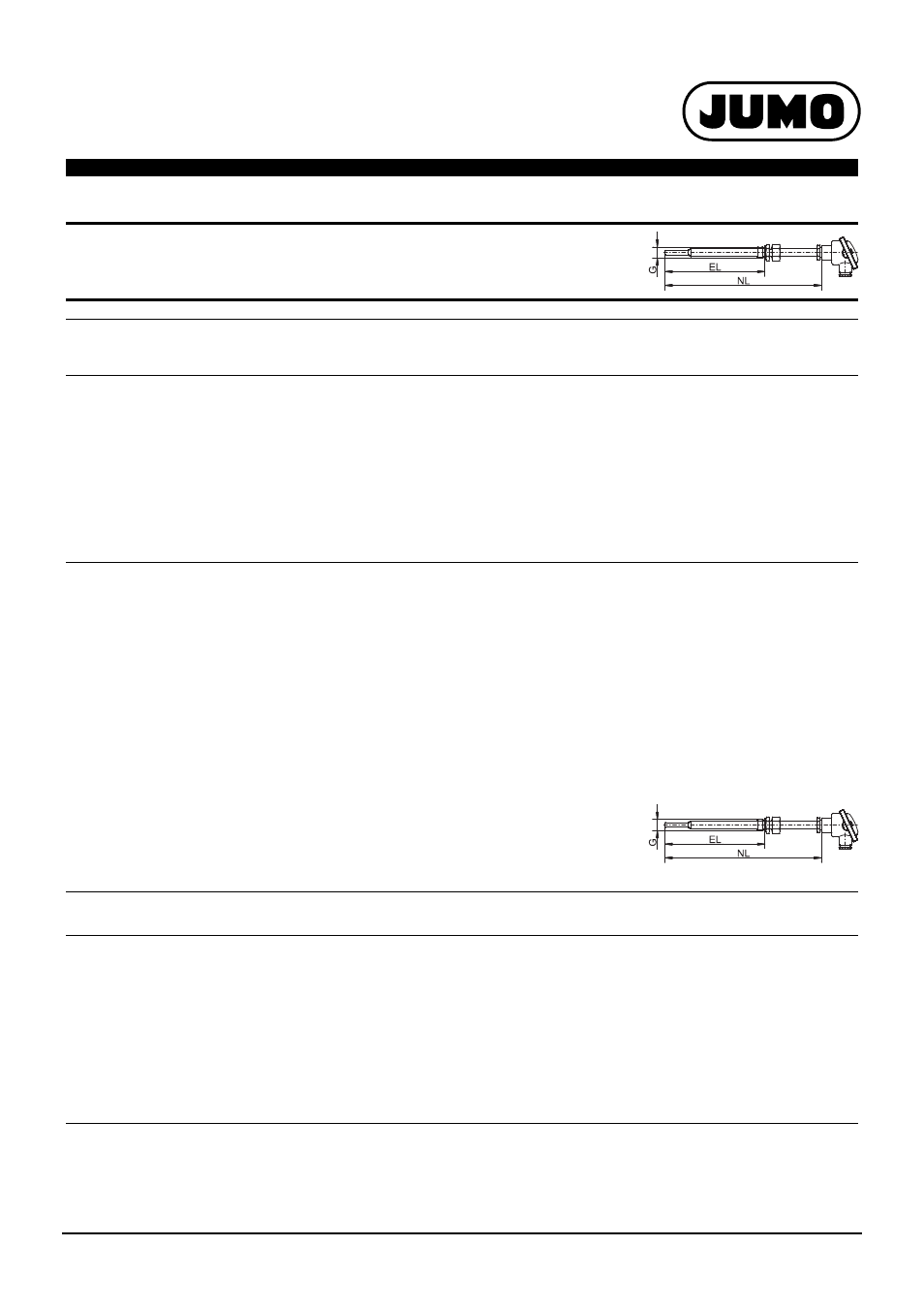

Screw-in thermocouples
with pipe screw connection and terminal head
according to DIN 43729, form B M24 × 1.5
Insertion
length
EL in mm
Nominal
length
NL in mm
Thread
G in inches
Temperature
range in °C
Type
up to February
28, 2013
1 couple
Type
up to February
28, 2013
2 couples
Type
as of March 01, 2013
Order code
Stainless steel protection tube X 6 CrNiMoTi 17 12 2, material-no. 1.4571
Thermocouple NiCr-Ni "K"
65 to 670
710
G 1/2
-35 to +550
90.020-F03
-
901006/54-544-1043-15-710-254/000
65 to 670
710
G 1/2
-35 to +550
-
90.020-F02
901006/54-544-2043-15-710-254/000
Thermocouple Fe-CuNi "L"
65 to 670
710
G 1/2
-35 to +550
90.020-F13
-
901006/54-544-1042-15-710-254/000
65 to 670
710
G 1/2
-35 to +550
-
90.020-F12
901006/54-544-2042-15-710-254/000
Operating media: water and oil
Operating pressure: max. 27 bar up to 100 °C, 20 bar up to 400 °C, pressureless as of 400 °C
Pos. 1
Versions only for connecting a
JUMO safetyM STB/STW Ex type 701155
Insertion
length
EL in mm
Nominal
length
NL in mm
Thread
G in inches
Temperature
range in °C
1 couple
2 couples
Type
Order code
Stainless steel protection tube X 6 CrNiMoTi 17 12 2, material-no. 1.4571
Thermocouple NiCr-Ni "K"
65 to 670
710
G 1/2
-35 to +550
x
-
901006/54-544-1043-15-710-254/922
65 to 670
710
G 1/2
-35 to +550
-
x
901006/54-544-2043-15-710-254/922
Thermocouple Fe-CuNi "L"
65 to 670
710
G 1/2
-35 to +550
x
-
901006/54-544-1042-15-710-254/922
65 to 670
710
G 1/2
-35 to +550
-
x
901006/54-544-2042-15-710-254/922
Operating media: water and oil
Operating pressure: max. 27 bar up to 100 °C, 20 bar up to 400 °C, pressureless as of 400 °C
Pos. 1
