Data Sheet 901006
Page 4/11

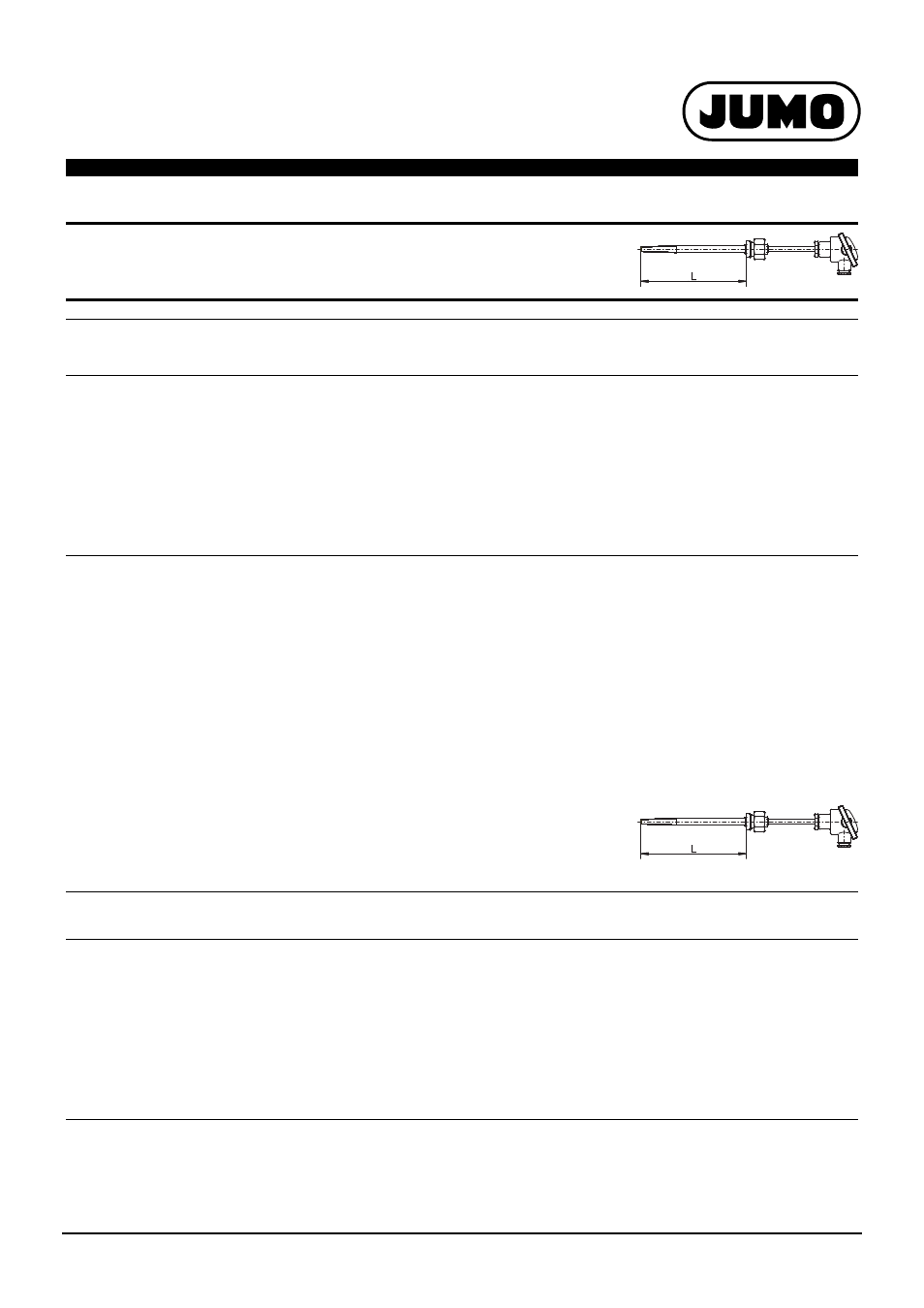

Screw-in thermocouples
with weld-in sleeve and terminal head
according to DIN 43729, form B M24 × 1.5
Insertion
length
a
EL in mm
a
Insertion length of the thermocouple
Length
L in mm
Temperature
range in °C
Type
up to February
28, 2013
1 couple
Type
up to February
28, 2013
2 couples
Type
as of March 01, 2013
Order code
Steel welding shoulder 15 Mo 3, material-no. 1.5415
Steel protection tube St 35.8, material-no. 1.0305
Thermocouple Fe-CuNi "L"
220
200
-35 to +480
90.111-F01
-
901006/53-543-1042-12-220-815/000
220
200
-35 to +480
-
90.111-F02 ●
901006/53-543-2042-12-220-815/000 ●
Operating media: water and oil
Operating pressure: max. 103 bar up to 100 °C, 30 bar up to 480 °C
●
Available from stock.
Pos. 2
Versions only for connecting a
JUMO safetyM STB/STW Ex type 701155
Insertion
length
a
EL in mm
a
Insertion length of the thermocouple
Length
L in mm
Temperature
range in °C
1 couple
2 couples
Type
Order code
Steel welding shoulder 15 Mo 3, material-no. 1.5415
Steel protection tube St 35.8, material-no. 1.0305
Thermocouple Fe-CuNi "L"
220
200
-35 to +480
x
-
901006/53-543-1042-12-220-815/922
220
200
-35 to +480
-
x
901006/53-543-2042-12-220-815/922
Operating media: water and oil
Operating pressure: max. 103 bar up to 100 °C, 30 bar up to 480 °C
Pos. 2
