Data Sheet 707530 Page 4/4
JUMO GmbH & Co. KG Telefon: +49 661 6003-727
Hausadresse: Moritz-Juchheim-Straße 1, 36039 Fulda, Germany Telefax: +49 661 6003-508
Lieferadresse: Mackenrodtstraße 14, 36039 Fulda, Germany E-Mail: [email protected]
Postadresse: 36035 Fulda, Germany Internet: www.jumo.net
Output Voltage
Voltage supply

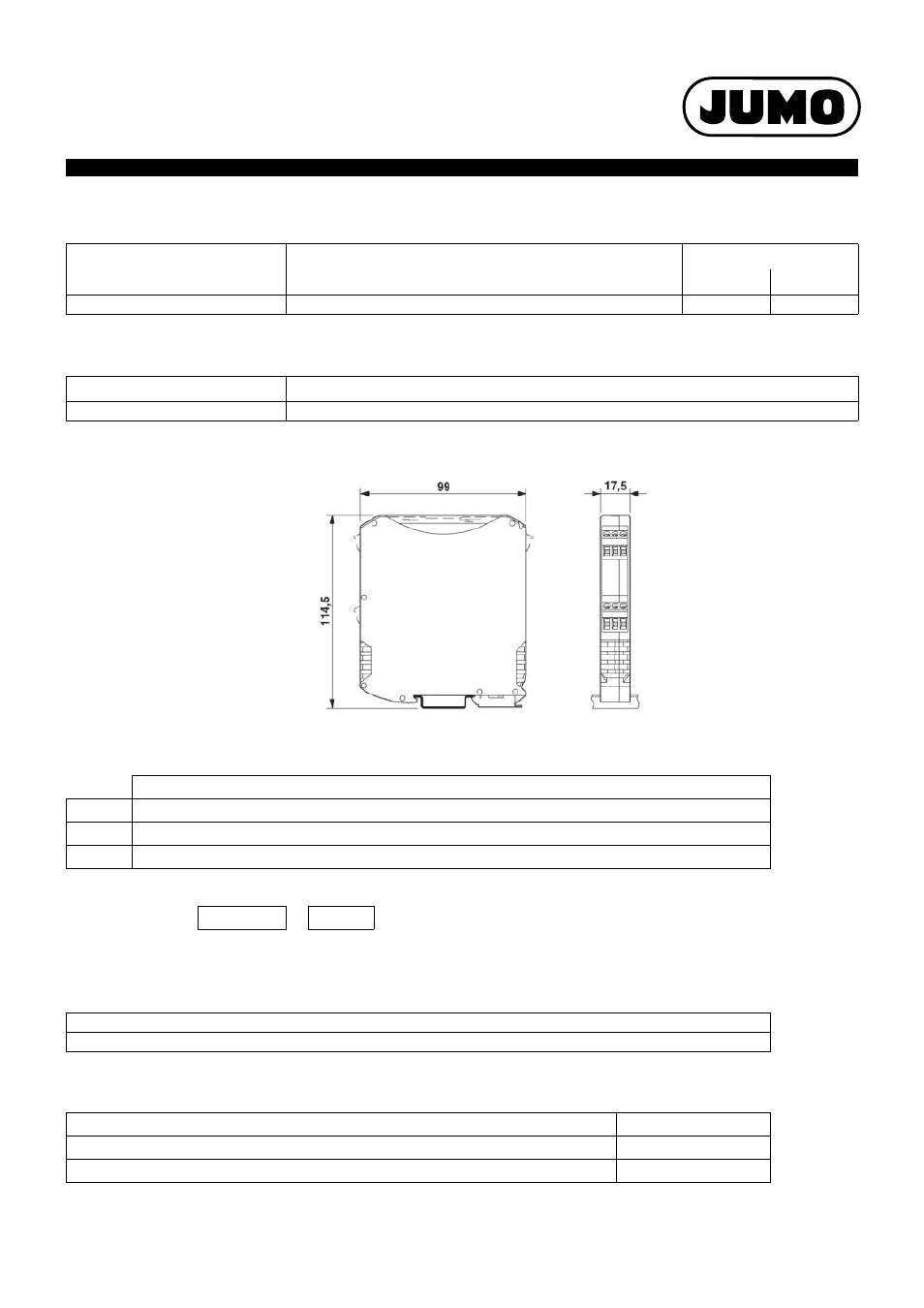

Dimensions
Order details
Scope of delivery
Accessories
Connection for
Connection of the input card at the terminal DIP-switch position a
a The two DIP-switches are located at the front of the device. Settings made to the device with DIP switches must occur in a voltage-free state.
S1 S2
Source - passive input card 3.1 (+) and 3.2 (-) II II
Connection for Connection at terminals
24 to 230 V AC/DC, 50/60 Hz 1.1 and 1.2
(1) Basic type
707530 Ex-i power supply/input isolating amplifier
(2) Voltage supply
38 24 to 230 V AC/DC, -20 % to +10 %, 50 to 60 Hz
(1) (2)
Order code /
Order example 707530 / 38
1 Ex-i power supply/input isolating amplifier in the ordered version
1 Operating manual
Article Part no.
JUMO dTRANS T01 Ex 00372362
JUMO dTRANS T01 Ex HART 00391004
