2011-11-08/00402234
Data Sheet 608425
Page 5/6

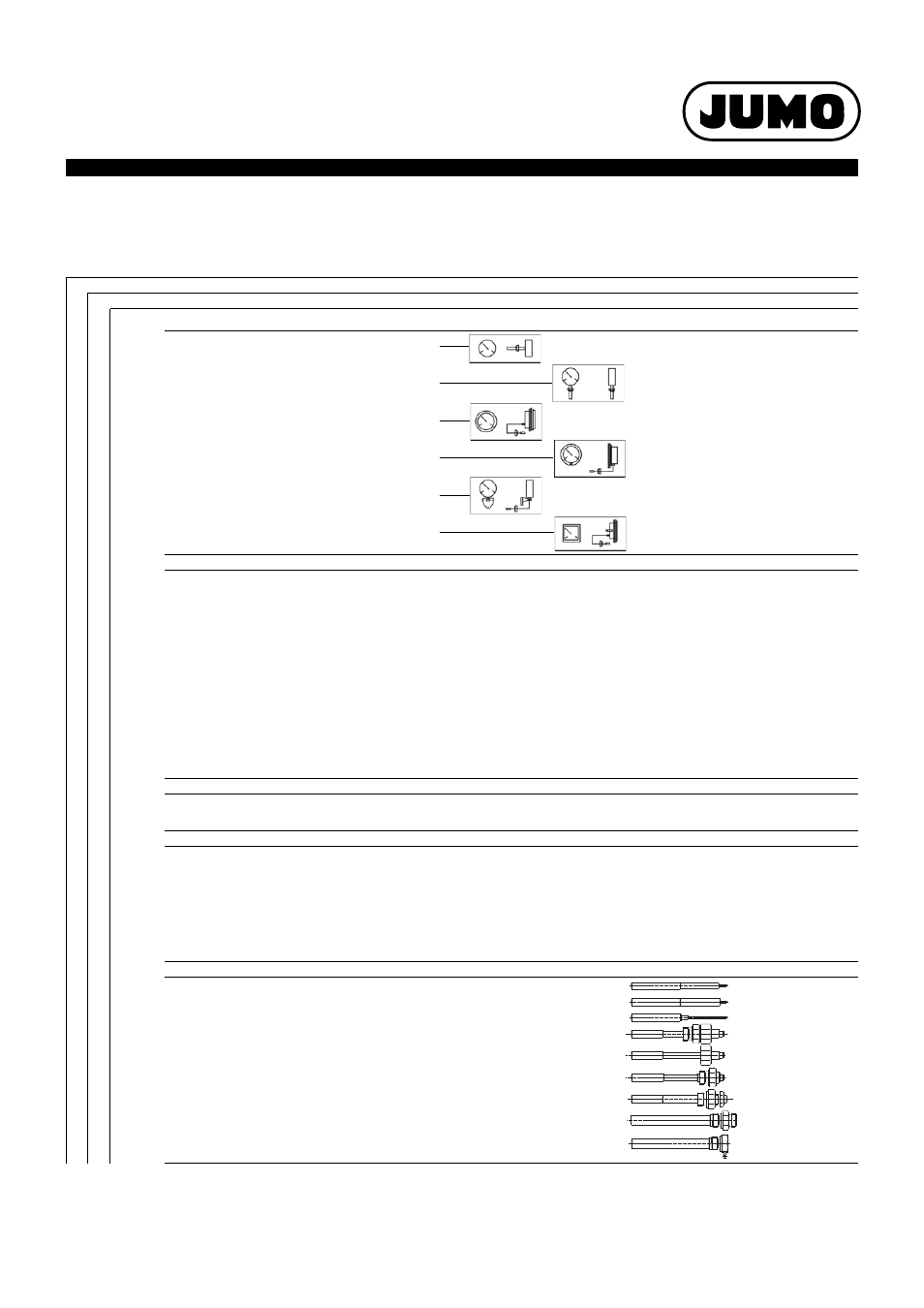

Order details
Contact dial thermometers, Class 1, Type 608425
(1)
Basic type
608425
Mechanical contact dial thermometer, Class 1 (round, panel- or surface-mounting instrument)
608425
Mechanical contact dial thermometer, Class 1 (square, panel-mounting instrument)
(2)
Basic type extensions
X
0110
Style: 01; housing size: diameter 100 mm
X
0116
Style: 01; housing size: diameter 160 mm
X
1010
Style: 10; housing size: diameter 100 mm
X
1016
Style: 10; housing size: diameter 160 mm
X
2010
Style: 20; housing size: diameter 100 mm
X
2016
Style: 20; housing size: diameter 160 mm
X
2210
Style: 22; housing size: diameter 100 mm
X
2216
Style: 22; housing size: diameter 160 mm
X
2310
Style: 23; housing size: diameter 100 mm
X
2316
Style: 23; housing size: diameter 160 mm
X
2496
Style: 24; housing size: 96 x 96 mm
(3)
Indication range (AB)
X
X
469
-40 to
0
+40°C; range -30 to +
0
30°C
Error limit
1.0°C
X
X
566
-30 to
0
+50°C; range -20 to +
0
40°C
Error limit
1.0°C
X
X
807
-1
0 to
0
+60°C; range +10 to +
0
50°C
Error limit
1.0°C
X
X
810
-1
0 to
0
+80°C; range +10 to +
0
70°C
Error limit
1.0°C
X
X
814
-2
0 to +100°C; range +10 to +
0
90°C
Error limit
1.0°C
X
X
818
-2
0 to +120°C; range +20 to +100°C
Error limit
2.0°C
X
X
826
-2
0 to +160°C; range +20 to +140°C
Error limit
2.0°C
X
X
832
-2
0 to +200°C; range +20 to +180°C
Error limit
2.0°C
X
X
834
-3
0 to +250°C; range +30 to +220°C
Error limit
2.5°C
X
X
840
-3
0 to +300°C; range +30 to +270°C
Error limit
5.0°C
X
X
843
-5
0 to +350°C; range +50 to +300°C
Error limit
5.0°C
X
X
848
-5
0 to +400°C; range +50 to +350°C
Error limit
5.0°C
X
X
854
-5
0 to +500°C; range +50 to +450°C
Error limit
5.0°C
(4)
Capillary type (FL)
1
X
00
none (with rigid stem)
X
X
04
FL04
capillary, stainless steel (1.4571), diameter 2.2 mm
(5)
Capillary length
1
X
X
0000
none (rigid connection)
X
X
1000
1000 mm
X
X
2000
2000 mm
X
X
3000
3000 mm
X
X
4000
4000 mm
X
X
5000
5000 mm
X
X
. . . .
special length (specify in plain text: 1000 mm steps, maximum length 10000 mm)
(6)
Process connection (PA)
1
X
X
750
TF01
temperature probe with shoulder on support tube
X
X
753
TF05
temperature probe with plain support tube
X
X
752
TF11
temperature probe without support tube
X
X
843
TA02
stem with union nut and loose nipple (only TF01)
2
X
X
161
TA03/01 stem with loose union nut (with TF01)
X
X
846
TA04
stem with fixed hexagon screw-in spigot (only TF01)
2
X
X
847
TA06
sliding clamp fitting on support tube
2
X
X
891
SH05
screw-in pocket, assembled
2
(with 14 mm dia. only)
X
X
913
SH07
screw-in pocket, assembled, with clamping clip and fixing screw
2
