JUMO 602031 Panel-Mounted Thermostat, heatTHERM Data Sheet - Manual (Page 4)

2013-11-12/00415410
Data Sheet 602031 Page 4/10
JUMO GmbH & Co. KG
Delivery address: Mackenrodtstraße 14
36039 Fulda, Germany
Postal address: 36035 Fulda, Germany
Phone: +49 661 6003-0
Fax: +49 661 6003-607
E-mail: [email protected]
Internet: www.jumo.net
JUMO Instrument Co. Ltd.
JUMO House
Temple Bank, Riverway
Harlow, Essex CM20 2DY, UK
Phone: +44 1279 635533
Fax:
+44 1279 635262
E-mail: [email protected]
Internet: www.jumo.co.uk
JUMO Process Control, Inc.
6733 Myers Road
East Syracuse, NY 13057, USA
Phone: 315-437-5866
1-800-554-5866
Fax: 315-437-5860
E-mail: [email protected]
Internet: www.jumousa.com
Approvals/approval marks

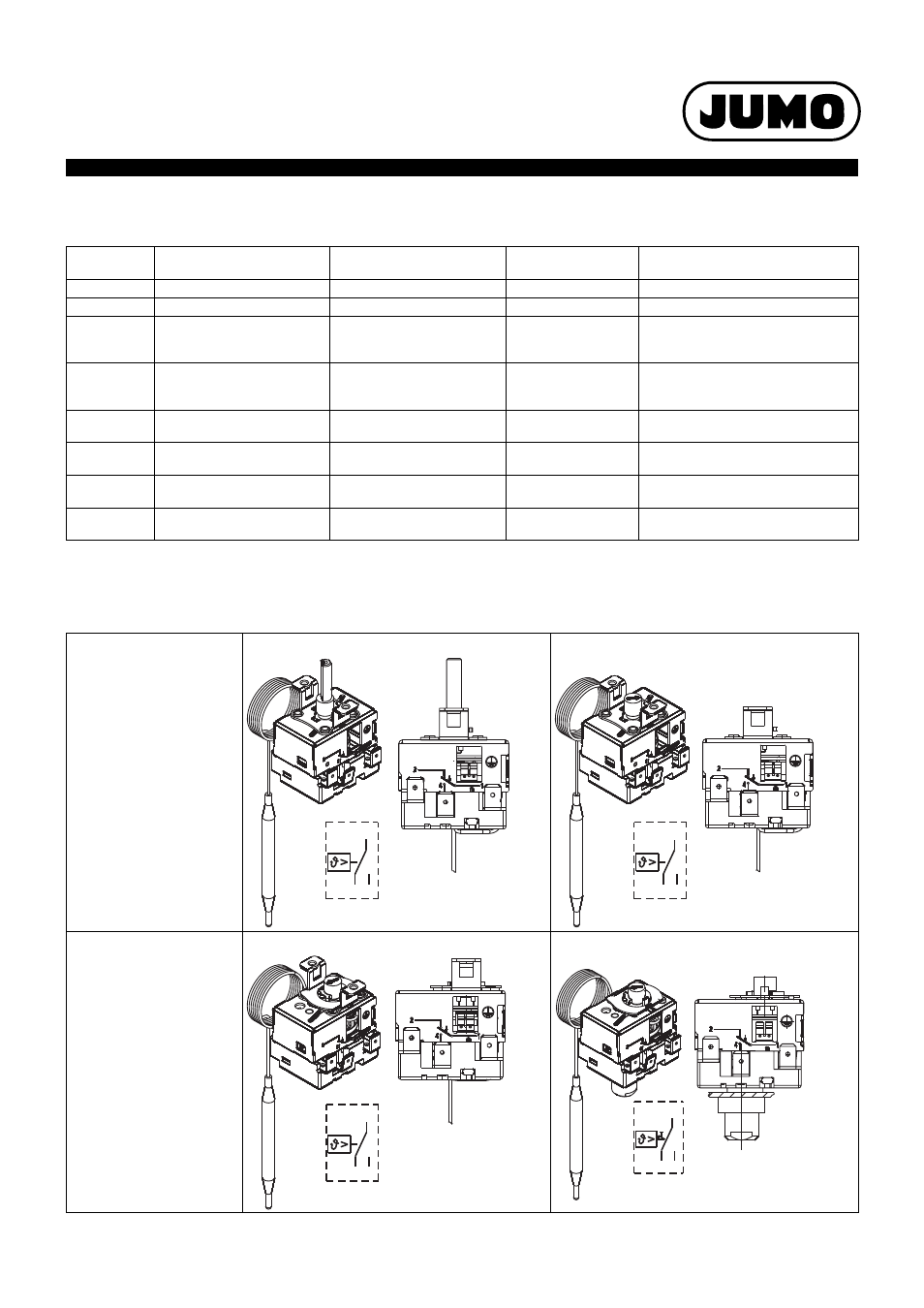

Wiring diagrams
Approval
marks Testing agency Certificates/certification
number Inspection basis Valid for
DIN DIN CERTCO / TÜV Süd STB1169 DIN EN 14597 JUMO heatTHERM (STB)
DIN DIN CERTCO / TÜV Süd STW(STB)1190 DIN EN 14597 JUMO heatTHERM (STW(STB))
DIN DIN CERTCO / TÜV Süd
(German Technical Inspection
Agency) TR1168 DIN EN 14597 JUMO heatTHERM (TR)
DIN DIN CERTCO / TÜV Süd
(German Technical Inspection
Agency) TW1189 DIN EN 14597 JUMO heatTHERM (TW)
DIN TÜV Süd (German Technical
Inspection Agency) B
10d
= 250,000* DIN EN ISO 13849-1 JUMO heatTHERM
c UL us UL Germany E66358 Vol. 1 UL 873 JUMO heatTHERM
with switching capacity 230 V, 15 A
c UL us UL Germany MH45736 Vol. 1 UL 353 JUMO heatTHERM (STB)
with switching capacity 230 V, 15 A
DGRL TÜV Süd (German Technical
Inspection Agency) IS-TAF-MUC 07113377017 97/23/EC JUMO heatTHERM (STW(STB)/STB)
* For further details see: Safety manual (B 602031.9) JUMO heatTHERM (-AT), (-DR) 602031, 603070.
Switching capacity check implemented at 16 A, 230 V, ohmic load.
Type 602030 Type 602030/01 Type 602030/02
Type 602031 Type 602031/20 and 602031/21 Type 602031/80 and 602031/81
1
2 4
TR
1
2 4
TW
1
2 4
STW
STB
1
2 4
