Data Sheet 70.9040 M. K. JUCHHEIM GmbH & Co • 36035 Fulda, Germany Page 2/12
Technical data
Load circuit
Control
General data
Nominal load voltage 24V -20%/+15% AC 45 — 63Hz
42V -20%/+15% AC 45 — 63Hz
115V -20%/+15% AC 45 — 63Hz
230V -20%/+15% AC 45 — 63Hz
265V -20%/+15% AC 45 — 63Hz
400V -20%/+15% AC 45 — 63Hz
460V -20%/+15% AC 45 — 63Hz
500V -20%/+15% AC 45 — 63Hz
(control voltage = nominal load voltage)
Continuous load current I
L
25A, 50A, 75A, 100A, 150A, 250A
Load types resistive and resistive-inductive loads (B 1.2Tesla max.)
Current limiting in phase-angle operation, the load current can be set by a trimmer at the front within the
range 10 — 100% I
N
. The limitation is based on the rms value of the load current.
Fuse super-fast semiconductor fuse
TSE circuit RC network as standard
Power loss 1.3 V x I
load
(A) approx.
Control accuracy supply voltage fluctuations within the tolerance range (-20%/+15%)
are accurately compensated.
Fluctuations 0.5% max.
Control signal 0 (4) — 20 mA R
I
= 50
Ω
0 (2) — 10 V R
I
= 25k
Ω
0 (1) — 5 V R
I
= 12k
Ω
0/10V (0/5V) R
I
= 12k
Ω
0/20mA R
I
= 50
Ω
floating contact
or
manual control from an external 5 k
Ω
potentiometer
Input signal attenuation adjustment range 100 — 20%
Circuit variants - single-phase operation
- star circuit with accessible star point
- open delta circuit
- economy circuit with master-slave principle and subsidiary U 2 control
in burst-firing operation
- free-running economy circuit (star or delta), only with subsidiary P control
in burst-firing operation

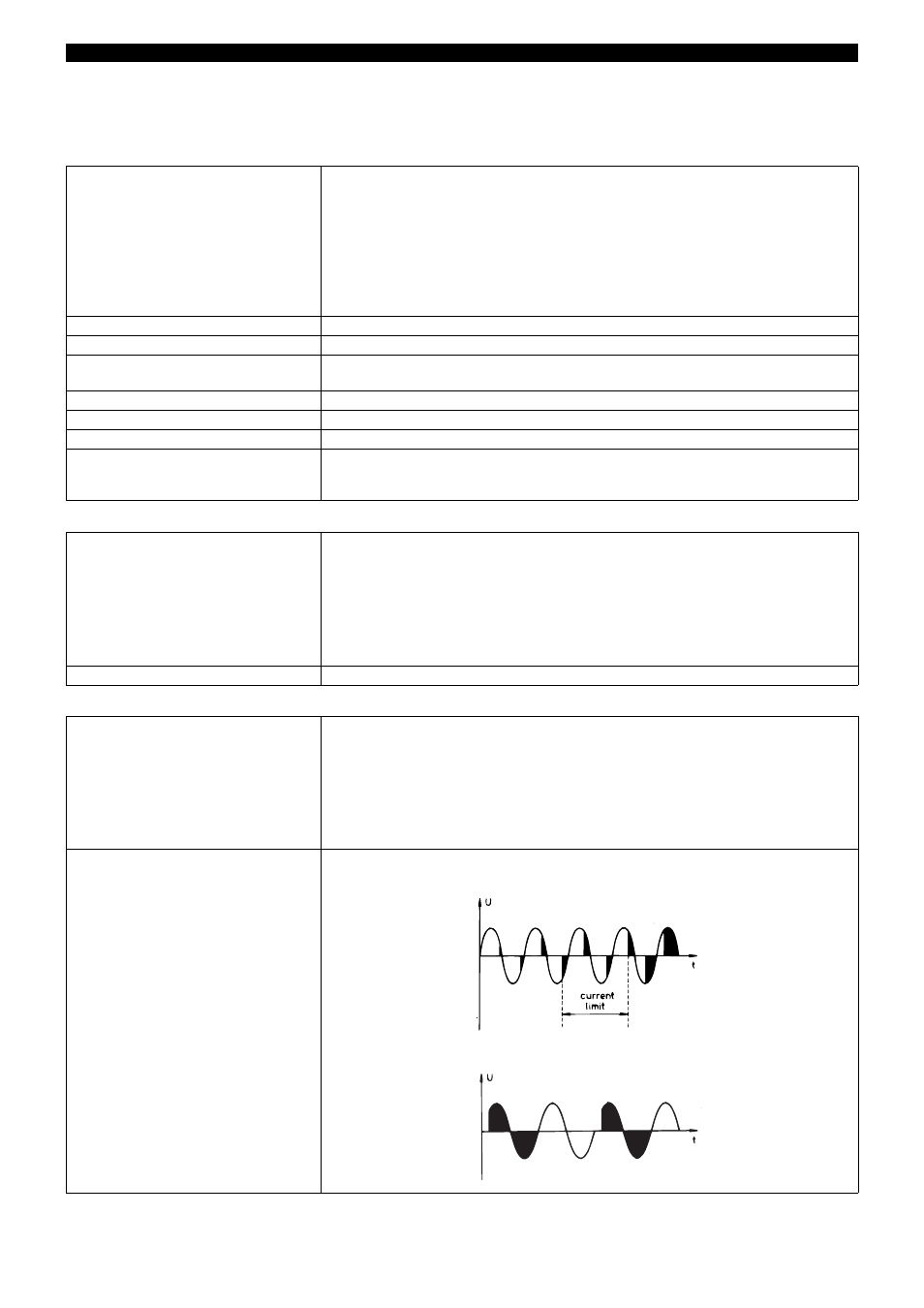

Operating modes - phase-angle operation for resistive and transformer loads with soft start
(with extra code TR, TO with current limiting)
- burst-firing operation for resistive or transformer load.
